Setting Up the ACL Tape Drives
N1528A and N1529A ACL Tape Drive Installation and User’s Guide— 544594-002
2 -5
Setting Up the N1529A ACL Tabletop
14. Attach the unit to the rack using two 10-32 captive thumbscrews that are located
on the lower left and right front panel.
15. Fully tighten the rear-mounting bracket screws.
Setting Up the N1529A ACL Tabletop
The N1529A ACL tabletop requires no mechanical assembly for mounting. (See
Figure 2-4 .) Place the unit on a desk, table, or other stable horizontal surface. Ensure
that the cooling grills at the front and the fans at the rear of the unit are not obstructed.
Allow 12 inches (30.4 centimeters) of clearance at the front and 6 inches (15.2
centimeters) at the rear of the unit to allow for adequate cooling.

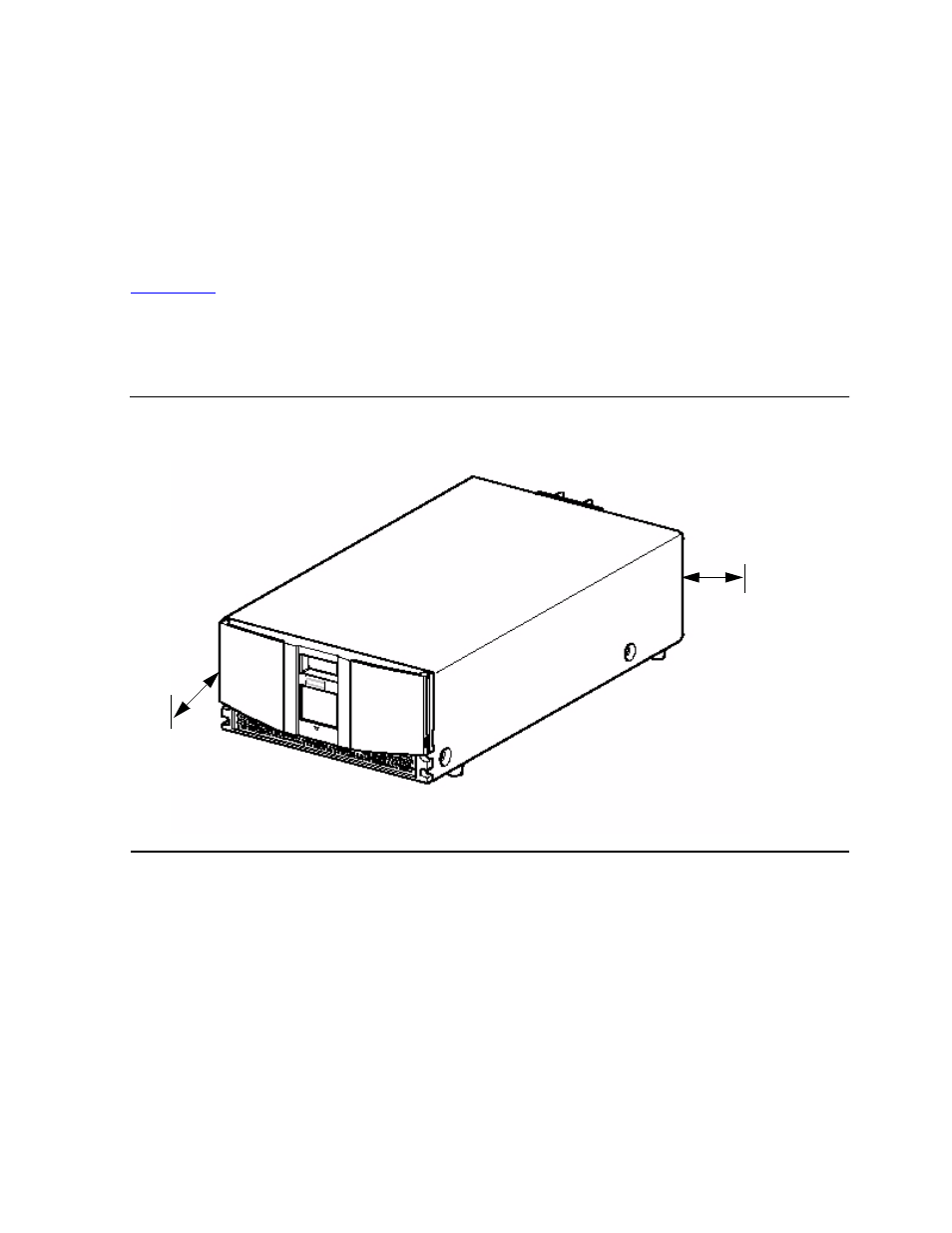

Figure 2-4. Tabletop Model Clearances
6 inches
(15.2
12 inches
(30.4
centi-
meters)
centi-
meters)
