Using the HAFM Window
46
High Availability Fabric Manager User Guide

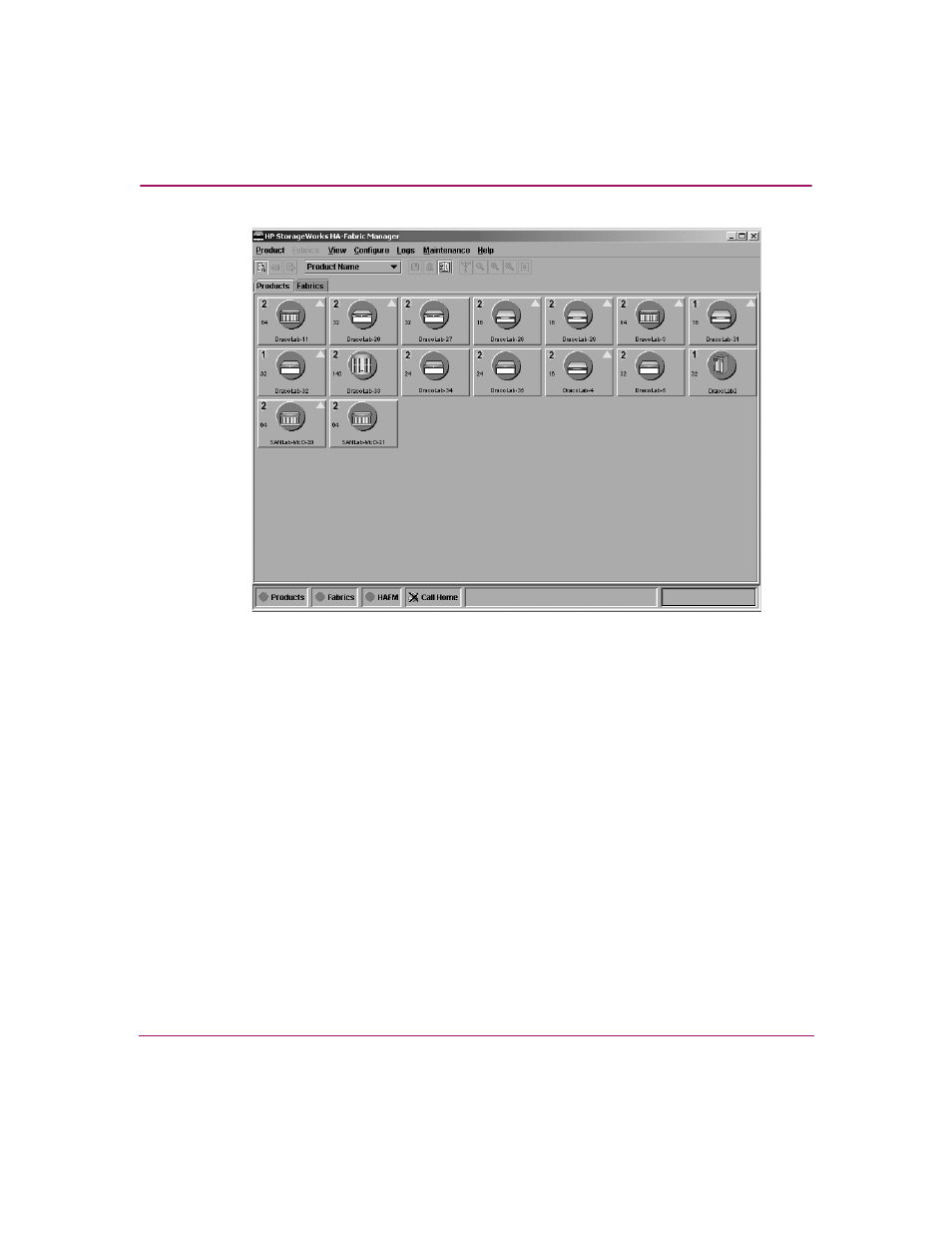

Figure 11: High Availability Fabric Manager main window
Window Elements
The HAFM main window elements are shown in
Title Bar
The title bar identifies the product.
Menu Bar
The menu bar provides actions for working with products, fabrics, views,
configurations, logs, maintenance. A help menu is also provided. For a detailed
description of the menu bar, refer to
Tool Bar
The tool bar provides a number of icons for quick access to frequently used menu
items, namely, commands to work with a product or to work with a fabric.
