Introduction and General Information
33 High Availability Fabric Manager User Guide
4. Click Login. The main HAFM window displays the Product View
( Figure 6 ).

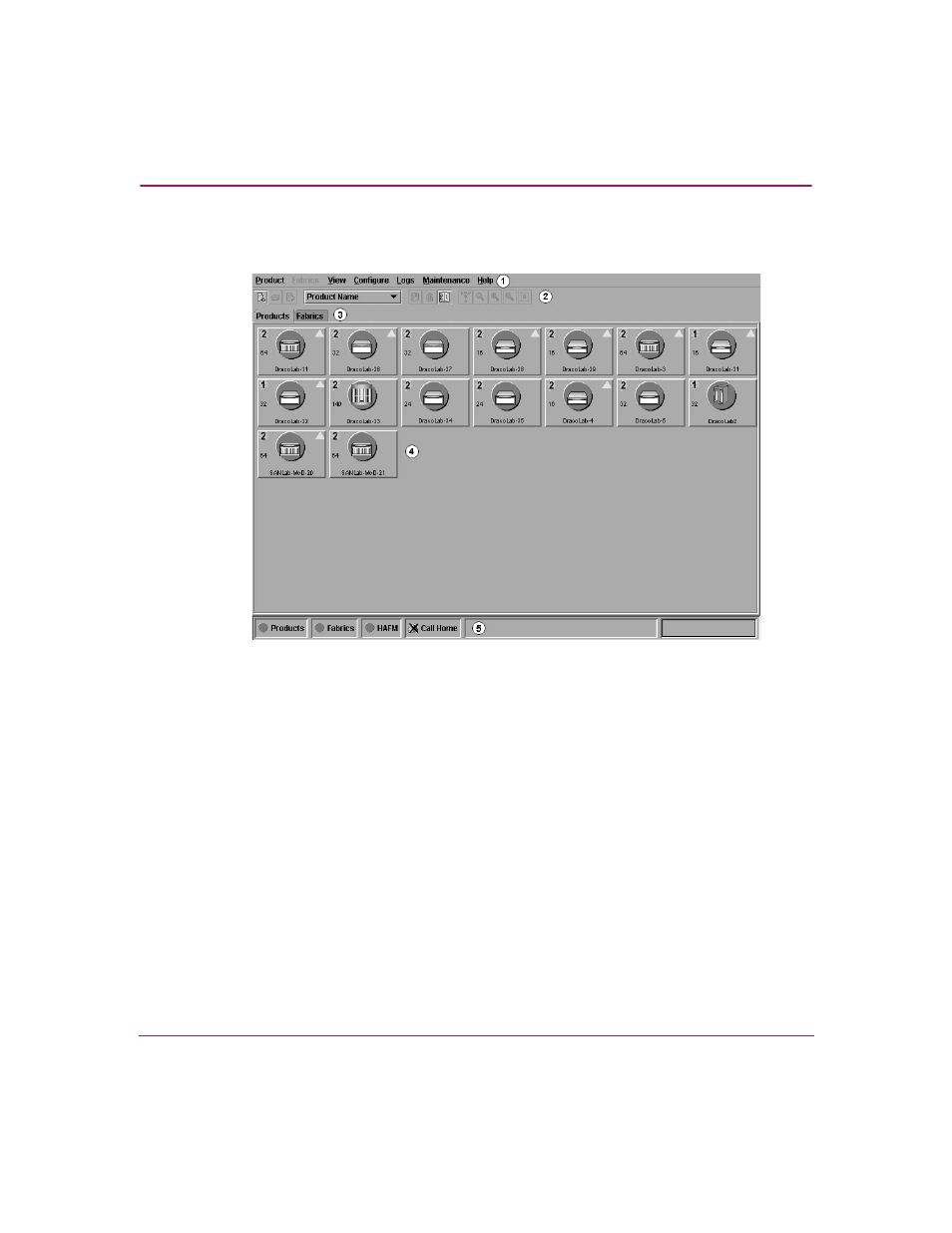

Figure 8: High Availability Fabric Manager main window
1
Menu Bar. For details, refer to Chapter 3 on page 57.
2
Tool Bar. For details, refer to Tool Bar on page 45.
3
View Tabs. For details, refer to Main Panel on page 51.
4
Main Panel. For details, refer to Main Panel on page 51.
5
Status Panel. For details, refer to Status Bar on page 54.
