Optional Features
180 High Availability Fabric Manager User Guide
Configuration Procedure
To configure the FICON management server, use the following steps:
1. Choose Configure > Management Server from the Product Manager
window. The Configure FICON Management Server dialog box displays
(
Figure 78 ).

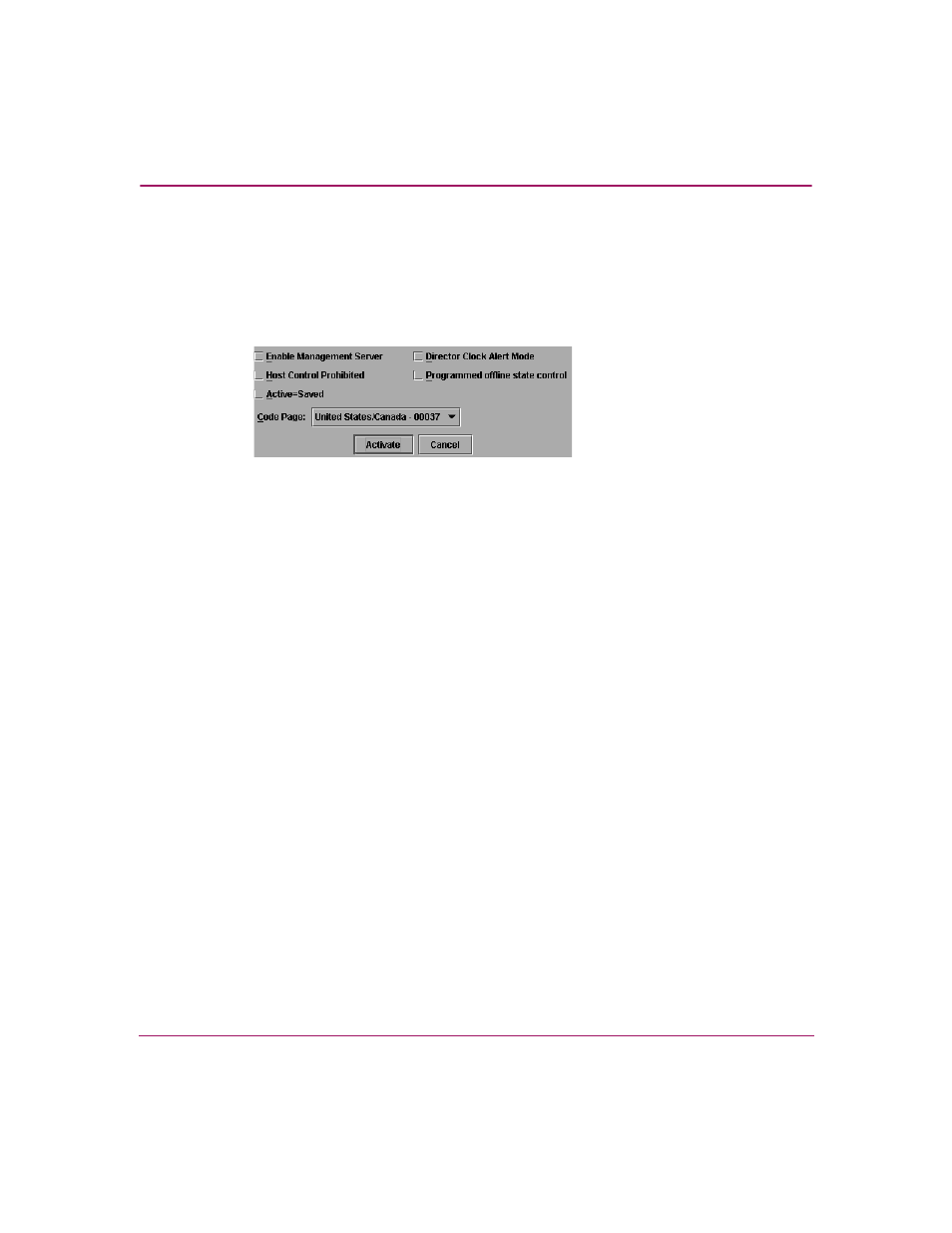

Figure 78: Configure FICON Management Server dialog box
2. Enable or disable the management server by clicking Enable Management
Server check box. (To disable the management server, click the check box
again to remove the check mark.)
3. Enable or disable switch clock alert mode by clicking the Director Clock
Alert Mode check box. When a check mark displays, the alert mode is
enabled.
4. Allow or prohibit host control by clicking the check box in the Host Control
Prohibited field. When a check mark displays, host control is prohibited.
5. Allow or prohibit offline state control by clicking the check box in the
Programmed offline state control field. When a check mark displays,
programmed control of the offline state is allowed.
6. Enable or disable Active=Saved mode by clicking the check box in the
Active=Saved field. When a check mark displays, the Active=Saved mode is
enabled.
7. If necessary, choose a code page from the Code Page drop-down list.
8. Activate changes and close the dialog box by clicking the Activate button.
9. If you are finished configuring the switch, back up the configuration data.
