Fabric Zoning
163 High Availability Fabric Manager User Guide

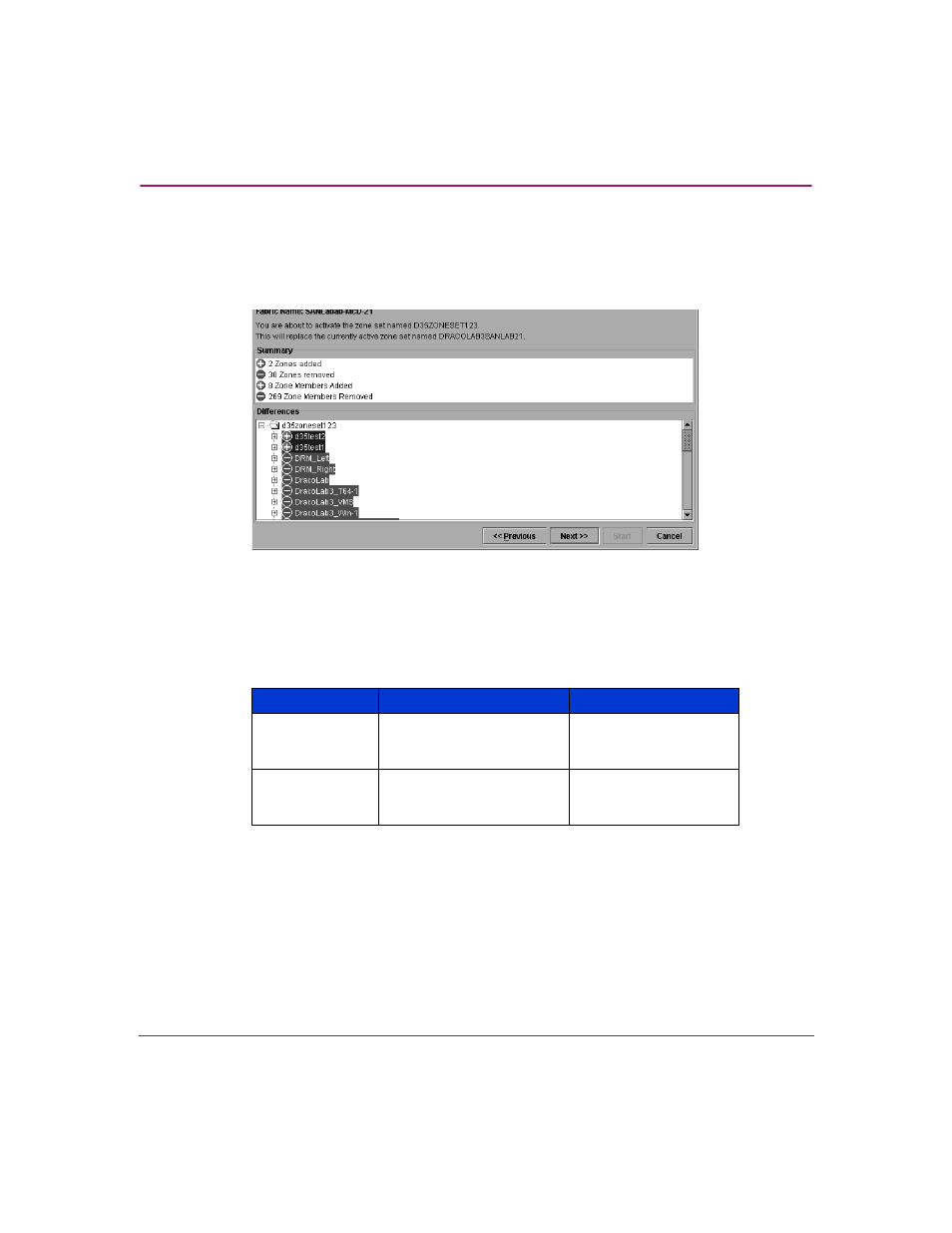

An Activate Zone Set screen ( Figure 70 ) displays that shows the differences
between the zone set that you are activating and the old zone set. In the
differences area, click the icon before the zone set name to expand the list of
zones in the set.
Figure 70: Activate Zone Set (Differences) screen
Determine which zones will be added and removed when the previous zone
set is replaced with the new zone set by the icons and text color displayed in
the expanded list of zone names.
Table 7: Icons and Text Indicators for Zone Set Differences
Icon Zone Name Text Color Meaning
Blue circle
containing white
plus (+) sign.
Blue Zone to be added for
active zone.
Red circle
containing white
minus (-) sign.
Red Zone to be removed for
active zone.
