Fabric Zoning
151 High Availability Fabric Manager User Guide
8. Click the Add >> button to move the selections to the Members in zone area
on the right side of the screen.
Figure 62 illustrates members added to the new zone. The members were
added with Add by WWN selected.

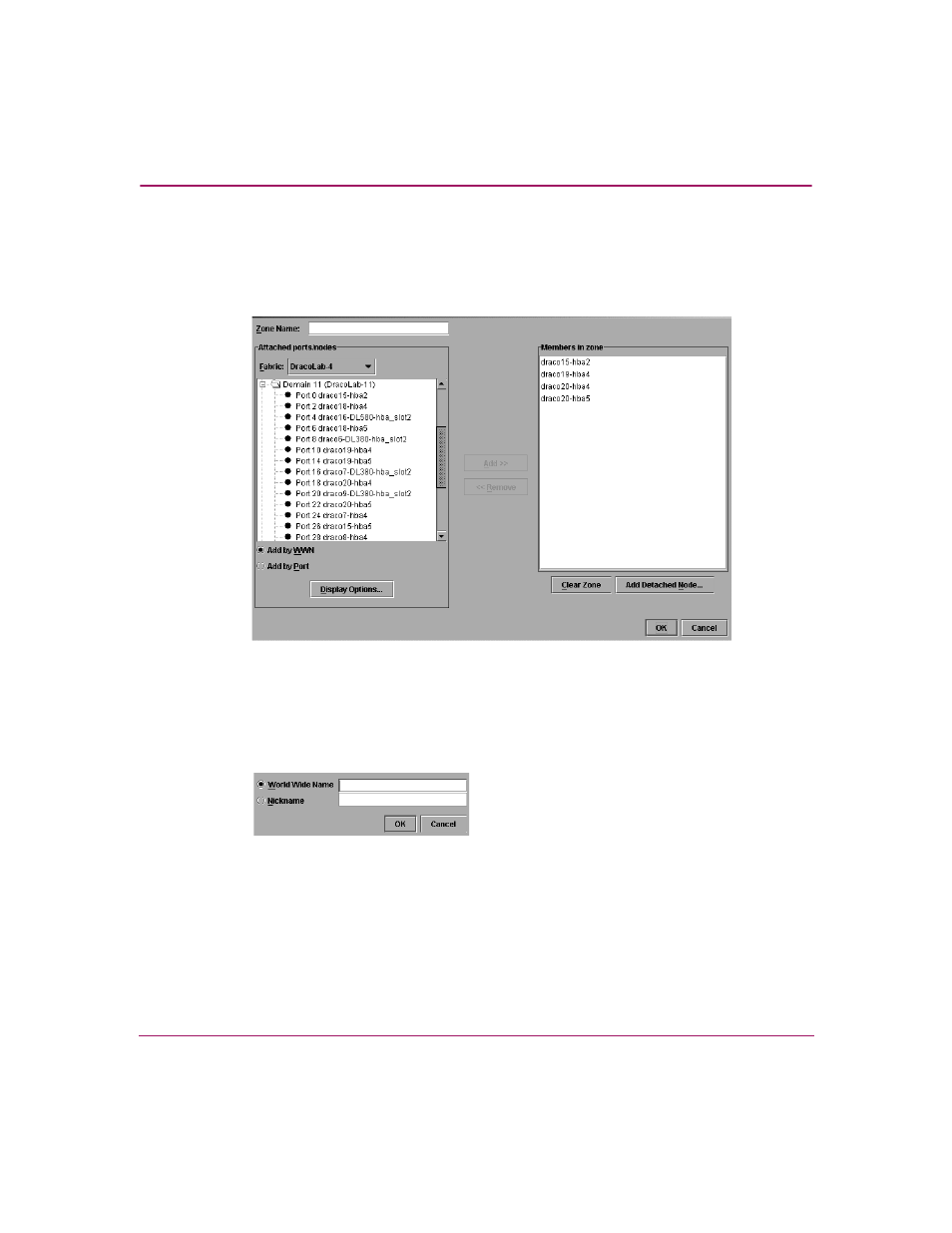

Figure 62: New Zone dialog box — adding zone members
9. To add nodes that are not listed in the Attached ports/nodes area (for
example, detached nodes), click Add Detached Nodes at the bottom of the
Members in zone area. The Add Detached Nodes dialog box displays
(
Figure 63 ).
Figure 63: Add Detached Nodes dialog box
10. Either click World Wide Name and enter a valid 16-digit WWN or click
Nickname and enter a configured nickname for the WWN into the
corresponding field. (Note that the nickname must have been configured
through the Configure Nicknames dialog box first.)
