Using the Fabrics View
114 High Availability Fabric Manager User Guide
This snapshot will persist in the Topology view and real-time changes to the
fabric will be reflected by graphic indicators such as alert indicators (yellow
triangles), dimmed product icons, and dashed yellow lines as shown in
Figure 53 .
You can persist a fabric whenever you want to refresh the view to the current
fabric state and track changes from the new persisted view.

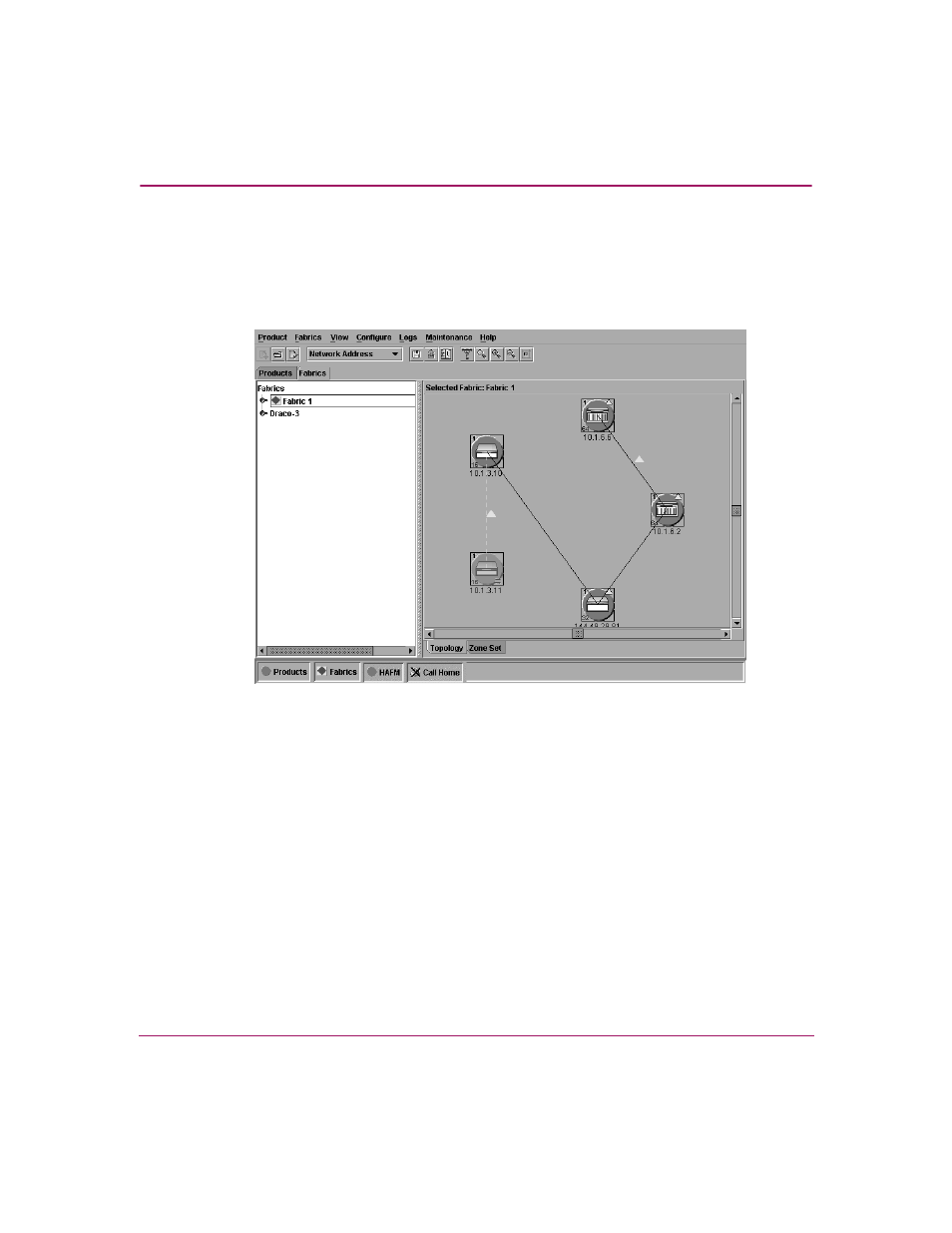

Figure 53: Persisted fabric in Topology view
Graphic Indicators in View
Changes to a persisted fabric are indicated in the Topology view area as the
following:
■ If a switch or director is removed from or added to the fabric, the product
displays in a dimmed state and ISL(s) that connected the product to the fabric
will appear as dashed yellow lines.
— A minus sign (-) displays in the lower right corner of the product’s icon if
the switch or director was removed. Figure 54 illustrates the icon when a
fabric element is removed.
