Step 3 Configure CPU,
Continued

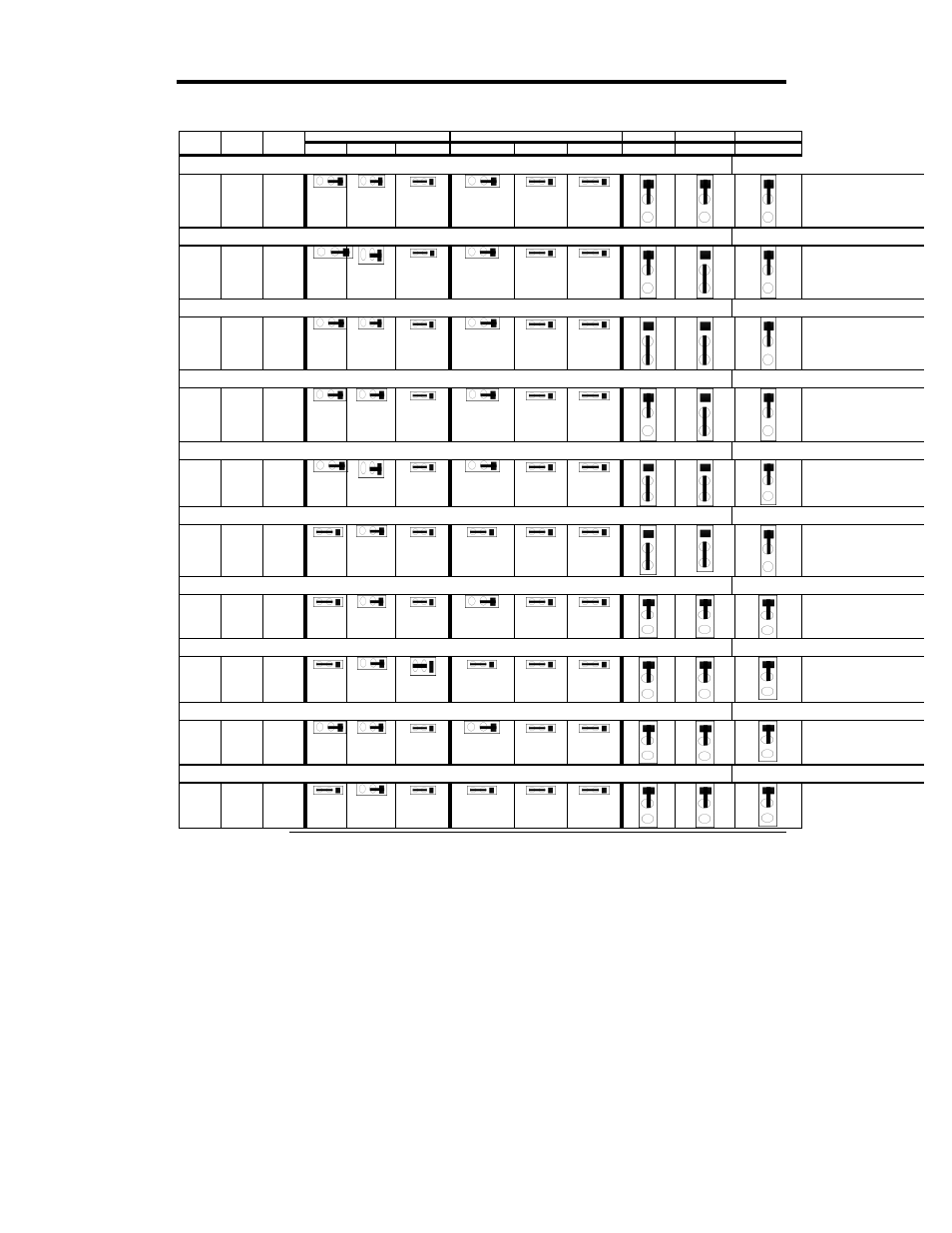

Summary of Jumper Setting for AMD K5 and K6 CPUs
Mult
Ext.
IMI 652 Clock Generator
OCS 9147 Clock Generator
Speed
plier
Speed
CLK1
CLK2
CLK3
CLK1
CLK2
CLK3
FREQ1
FREQ2
FREQ3
K6-233
233
3.5x
66
K6-200
200
3x
66
K6-166
166
2.5x
66
K5-PR200
200
2x
66
K5-PR166
166
1.75x
66
K5-PR150
150
1.75x
60
K5-PR133
133
1.5x
66
K5-PR120
120
1.5x
60
K5-PR100
100
1.5x
66
K5-PR90
90
1.5x
60
