Apollo IV PCI Pentium ISA Motherboard User’s Guide

10

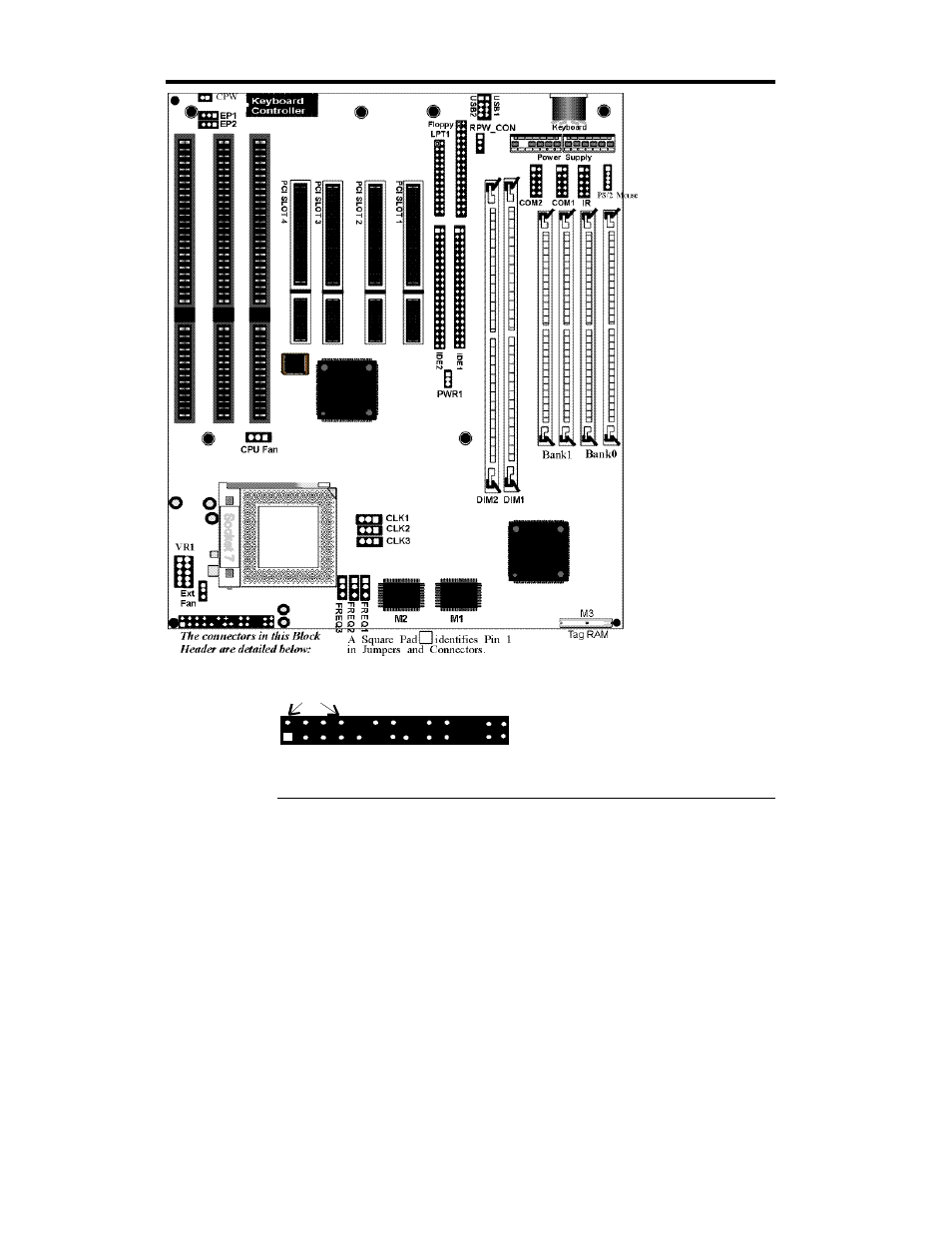

Apollo IV Motherboard Layout

Speaker

IDE
LED

PWR
LED

Kbd
Lock

Reset

Susp.
Mode
Switch

Turbo
LED

Susp.
LED

Remote
Power
Switch
