Viewing Product and Fabric Data
106 Embedded Web Server User Guide
— Media — The Fibre Channel mode and optic size: Single-Mode ,
Multi-Mode 50 micrometer , Multi-Mode 62.5
micrometer , Multi-Mode 50 , 62.5 micrometer , or
Unknown .
— Speed — The speed capability of the product. Values that may display
include 1 Gb/s , 2 Gb/s , and Unknown . Both 1 Gb/s and 2 Gb/s
may display for optics that support both speeds.
Viewing FRU Properties
To view the properties of an FRU on a product, perform the following procedure:
1. Choose View from the navigation panel.
2. Choose the FRU Properties tab. The FRU Properties tab view displays
( Figure 28 ) showing each FRU on the product.

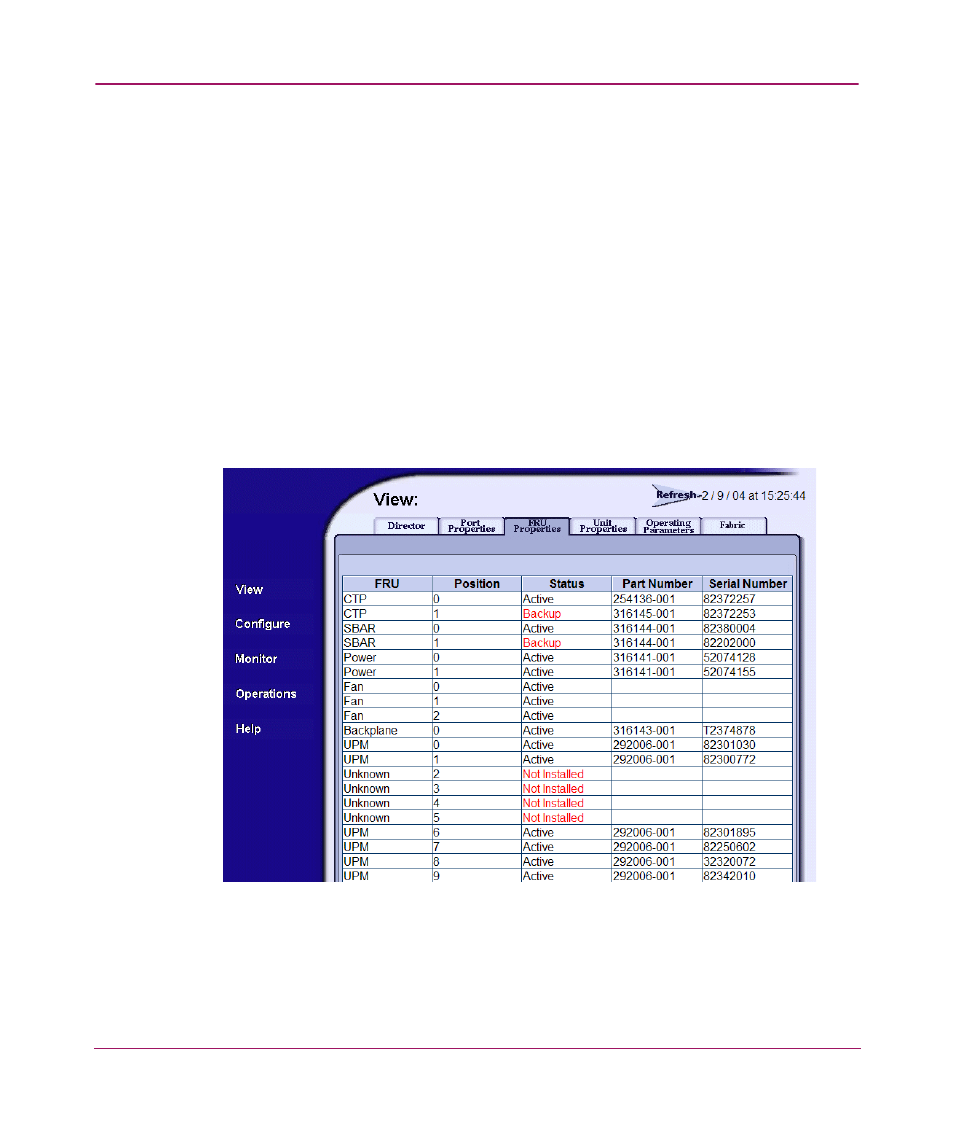

Figure 28: FRU Properties tab view
This page shows the following information for the FRUs:
■ FRU — Name of the FRU.
■ Position — Slot position relative to identical FRUs installed in the chassis.
