Setting Up the Application
87 HA-Fabric Manager User Guide
Zooming In
To zoom in on the Physical Map, use one of the following methods:
1. Click the zoom-in icon ( ) on the toolbox.
or

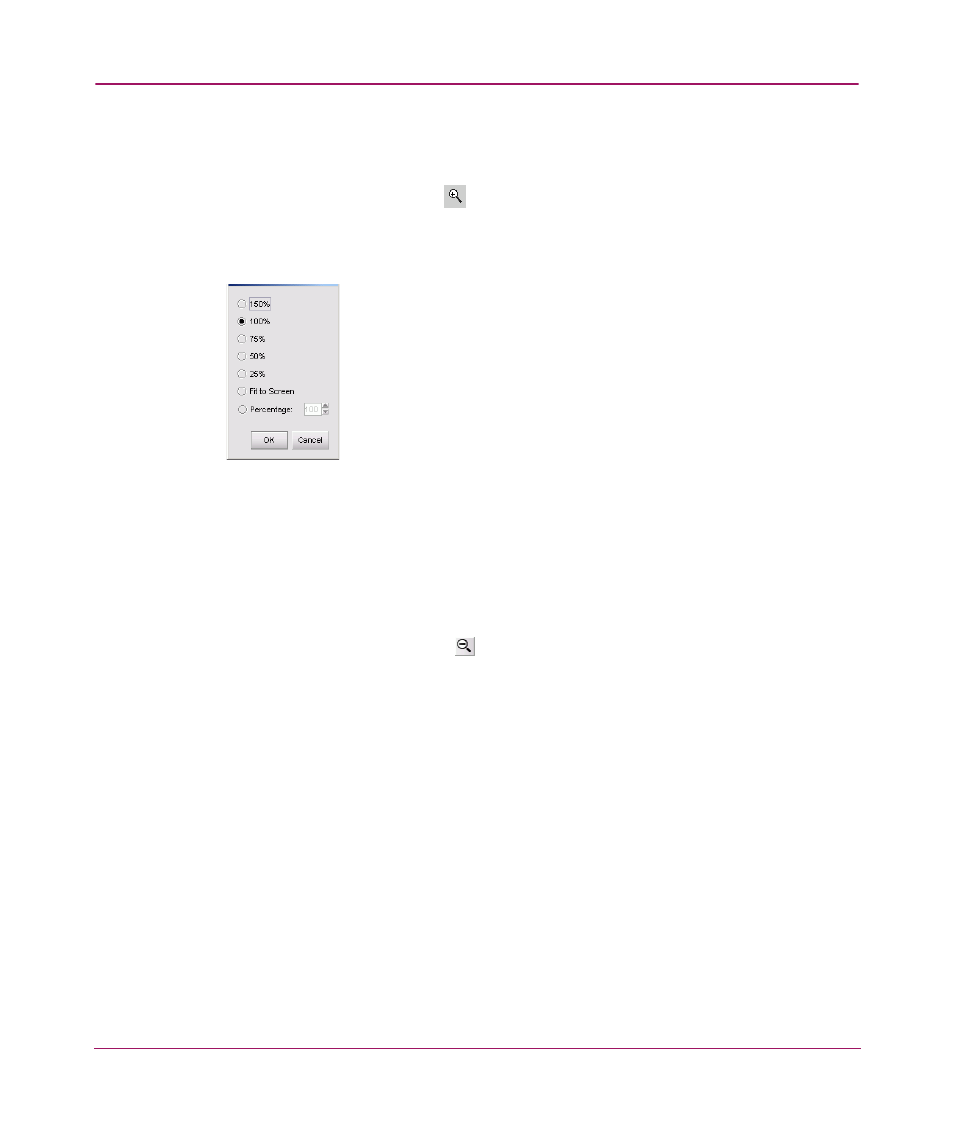

1. Choose View > Zoom. The Zoom dialog box displays, as shown as Figure 37 .
Figure 37: Zoom dialog box
2. Choose a zoom percentage.
3. Click OK.
Zooming Out
To zoom out of the Physical Map, use one of the following methods:
1. Click the zoom-out icon ( ) on the toolbox.
or
1. Choose View > Zoom. The Zoom dialog box displays, as shown as Figure 37 .
2. Choose a zoom percentage.
3. Click OK.
Showing Levels of Detail on the Physical Map
You can view different levels of detail on the Physical Map, making SAN
management easier. To change the view of the physical map, perform the
following:
1. Choose View > Show and then choose one of the available view options.
