Introduction and General Information
38 HA-Fabric Manager User Guide
■ Source—The product on which the event occurred.
■ Type—The type of event that was performed (for example, client/server
communication events).
■ Description—Description of the event.
■ Time—The time and date the event occurred.
■ IP—The IP address of the product on which the event occurred.
■ Node Name—The name of the node on which the event occurred.
■ Port Name—The name of the port on which the event occurred.
Connection Utilization Legend
The Connection Utilization Legend as shown in Figure 7 , is located in the lower
right-hand area of the main window. The Legend displays the percentage of
utilization on the trunks as well as on the utilization legend (below). To display
the connection utilization, choose Monitor > Utilization > On, or CTRL+U.

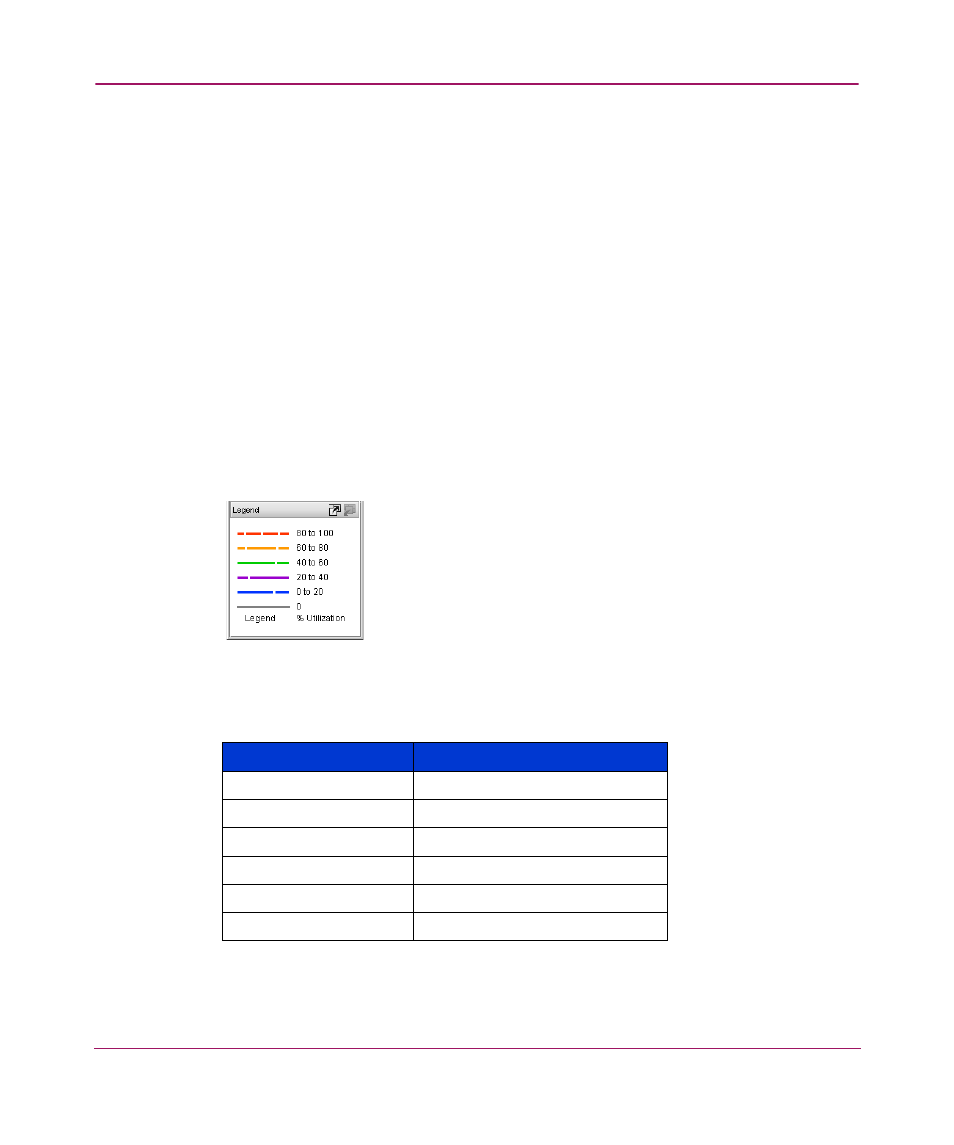

Figure 7: Connection Utilization Legend
In Table 3 , the color and the length of the lines indicate the bandwidth utilization.
To turn utilization off, choose Monitor > Utilization > Off.
Table 3: Connection Utilization Legend
Line Color Utilization
Red line 80% to 100% utilization
Orange line 60% to 80% utilization
Light green line 40% to 60% utilization
Dark purple line 20% to 40% utilization
Blue line 0% to 20% utilization
Gray line 0% utilization
