Devices Toolbox

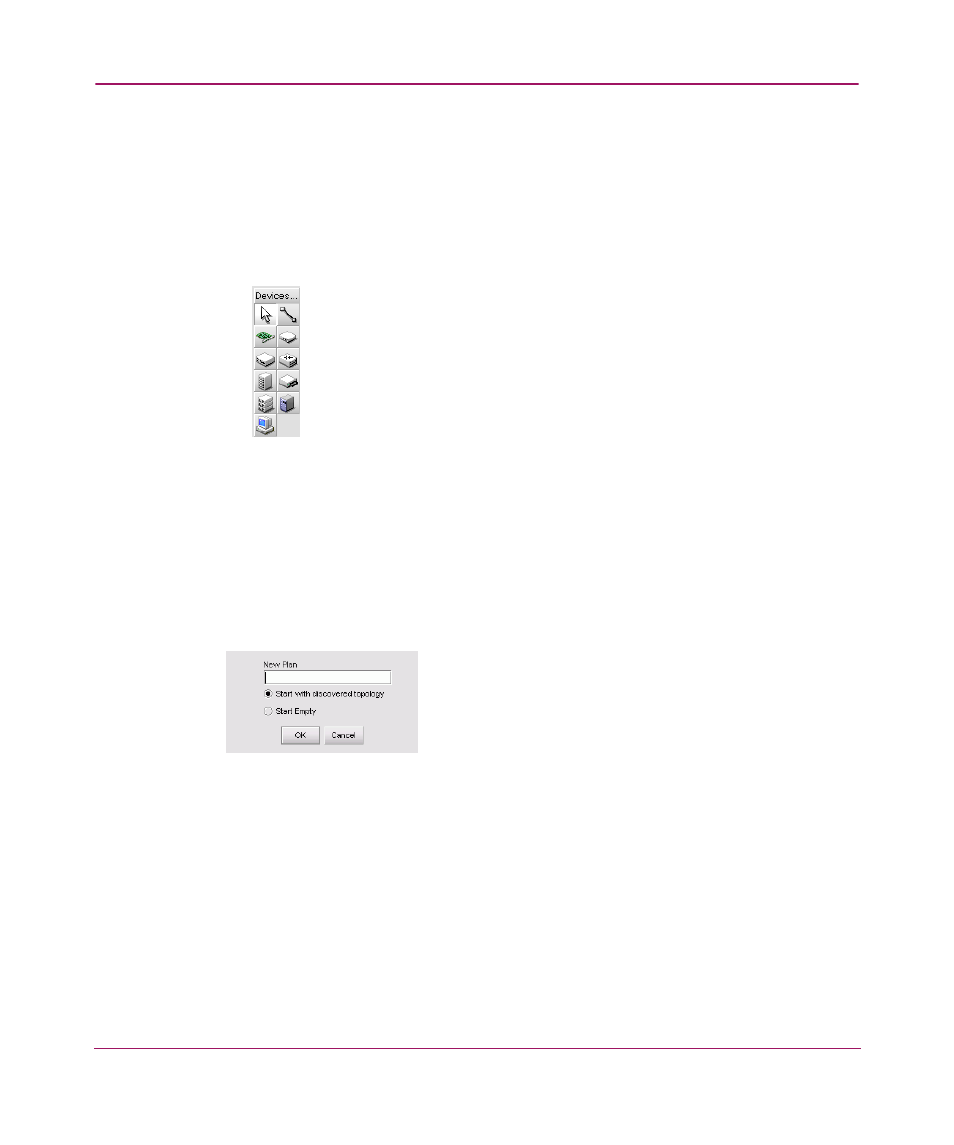

The Devices toolbox as shown in Figure 93 , located on the right side of the
planning window, provides tools to add, select, and connect devices in the
planned SAN.
Figure 93: Devices Toolbox
Planning a New SAN
1. Choose SAN > New Plan (or CTRL+N). The New Plan dialog box displays,
as shown in Figure 94 .
Figure 94: New Plan dialog box
2. Enter a name for the new plan in the New Plan field.
3. Click one of the following options:
— Click Start with discovered topology to use the discovered topology as
the basis for the new plan.
— Click Start Empty to start the new plan with an empty topology.
4. Click OK.
1
Select Devices
2
Insert HBA
3
Insert Switch
4
Insert Storage
5
Insert JBOD
6
Insert Server
7
Connect Devices
8
Insert Hub
9
Insert Bridge
10
Insert Tape Drive
11
Insert NAS
1
2
3
4
5
6
7
8
9
10
11
