Optional Features
174 HA-Fabric Manager User Guide
Working with the Planning Module
This section provides instructions for using the optional Planning module to plan a
SAN. The Planning module enables you to plan and evaluate a SAN before you
implement the design. This can save considerable time and cost as you can
evaluate the plan to find issues with the design. Another time-saving feature is
that you can use a discovered SAN as the basis for a plan, eliminating the need to
duplicate a design.
Planning Window
The planning window as shown in Figure 92 , differs slightly from the window
that displays a discovered SAN. In the planning window, there are three tabs—
Physical Map, Device List and Event Management.

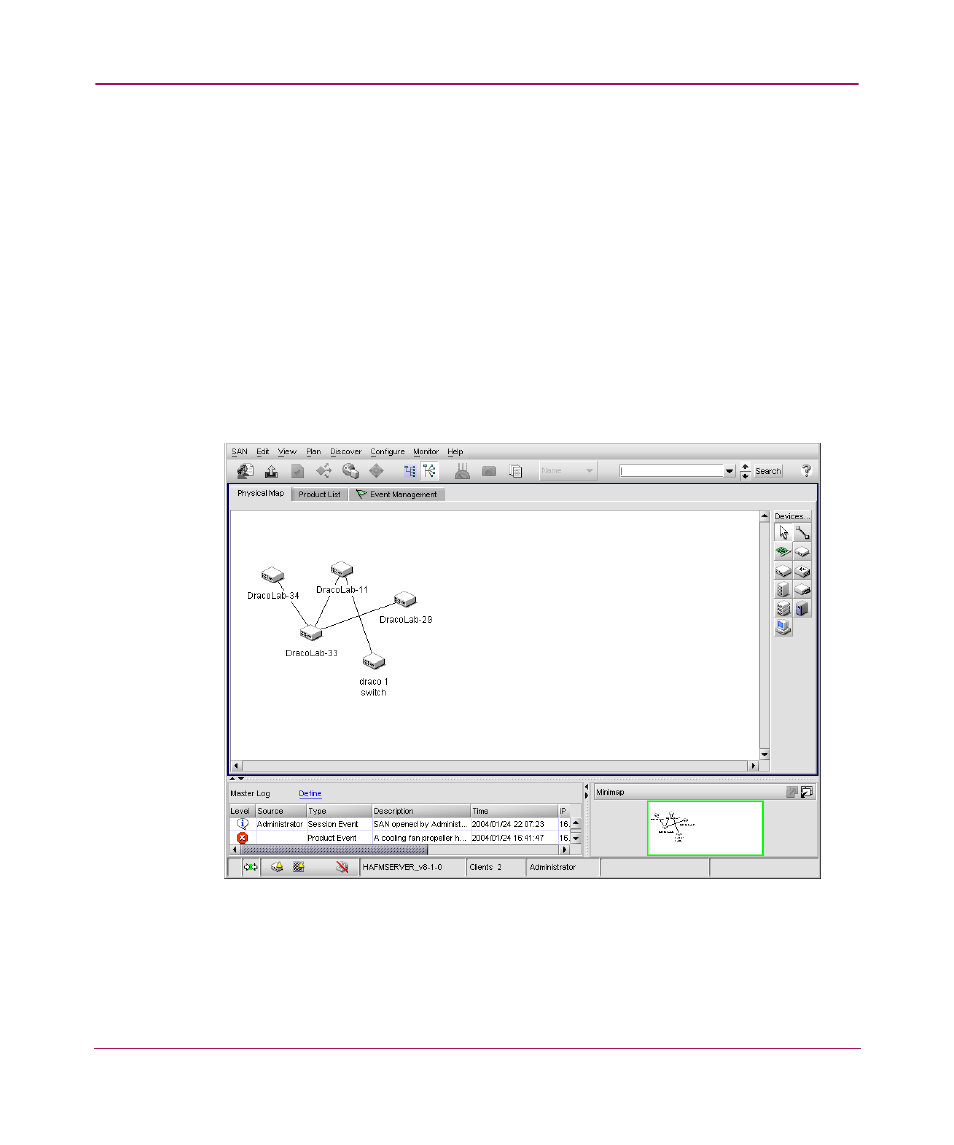

Figure 92: Planning window
