Optional Features
168 HA-Fabric Manager User Guide
Monitoring Switch Performance
You can monitor a switch’s performance through a performance graph, which
displays transmit, receive, and error data from the switch ports to the connected
devices. The graphs can be sorted by the Errors, Transmit, and Receive data.
1. Right-click a switch icon and choose Performance Graphs. The
Performance Graph displays, as shown in Figure 89 .

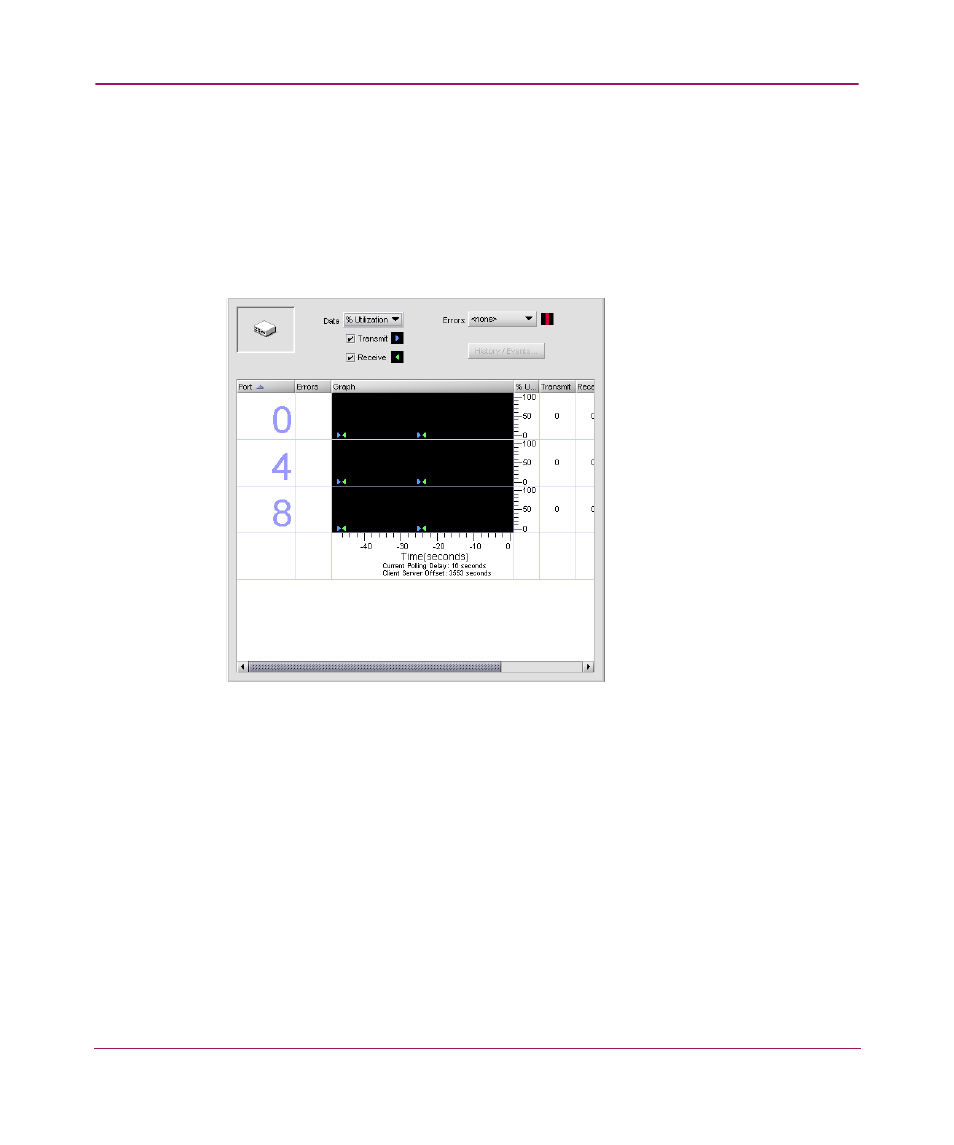

Figure 89: Switch Performance graph
2. Choose the type of data to display from the Data drop-down list.
3. Choose the error data to display from the Errors drop-down list.
4. Click the X button at the top of the window to close it.
