Configuring SAN Products and Fabrics
100 HA-Fabric Manager User Guide
Procedure
To show the route for two specific ports on the end nodes, perform the following:
1. In the Product List, click the + symbol next to a switch product icon to expend
and see the attached nodes.
2. Right-click a node and select Show Route. The Show Route dialog box
displays, as shown in Figure 44 .

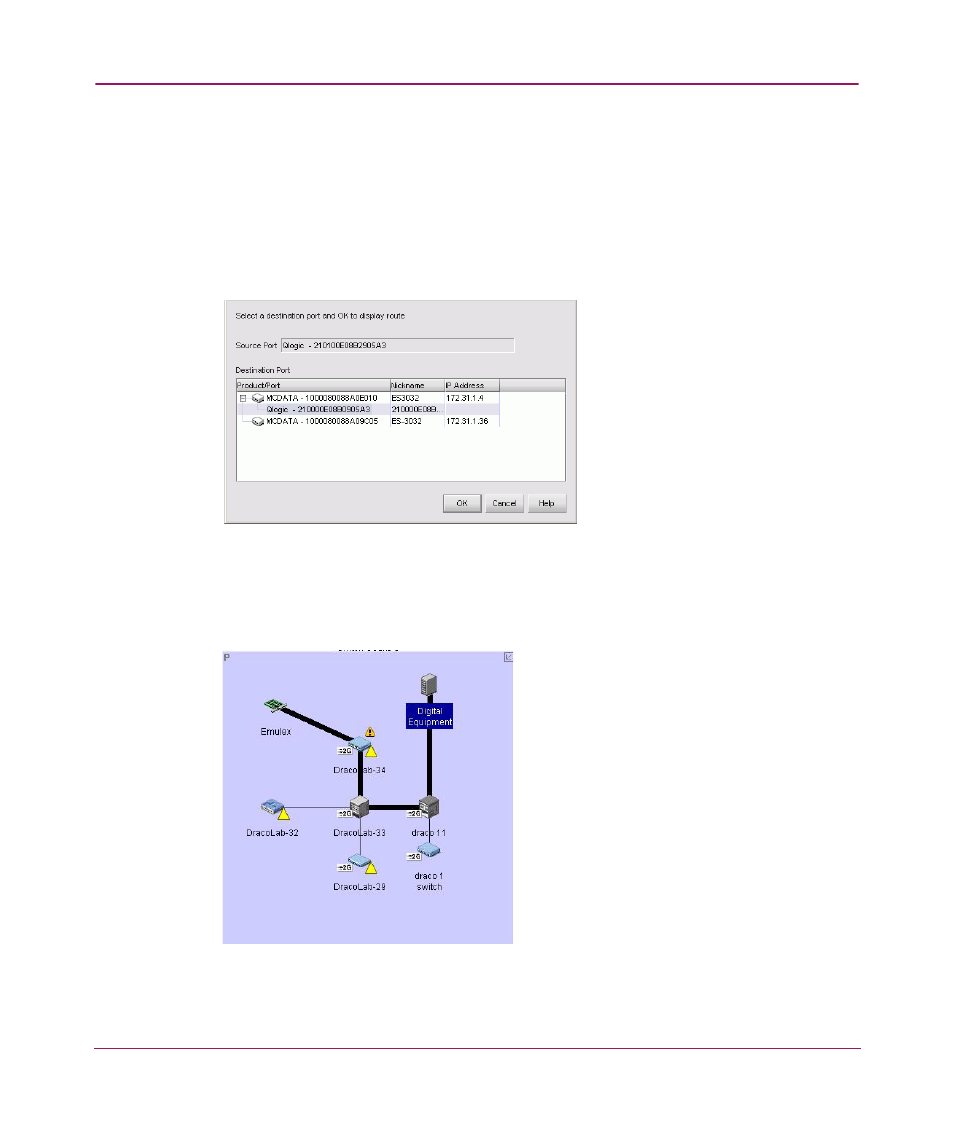

Figure 44: Show Route dialog box
3. Select a destination port from the Destination Port table.
4. Click OK. The route between the ports displays on topology, as shown in
Figure 45 .
Figure 45: Show Route example
