Chapter 2 Hardware Installation 5
2. HW Installation
2.3 Installing the ASUS LAN/SCSI card
1. Locate the ASUS proprietary expansion
slot.
2. Remove the expansion slot cover on the
back of the computer aligned with the
ASUS proprietary expansion slot. Save
the slot cover screw.
3. Carefully insert the
ASUSCONNECT edge
connection of the ASUS
LS99 LAN/SCSI card
into this slot. Make sure
the edge connector is
properly engaged before
pressing the card into
place.
4. Press down firmly until
the latch clicks into
place. The latch on the LAN/SCSI card should secure the card into place.
5. The bracket around the CHBEXTWIDE connector should fit where you removed
the expansion slot cover. Secure it with the slot cover screw before making the
internal and external SCSI bus connections.
2.4 Removing the ASUS LAN/SCSI card
Release the latch by inserting a rigid tip between the latch and the connector and
pushing the latch outward away from the connector.

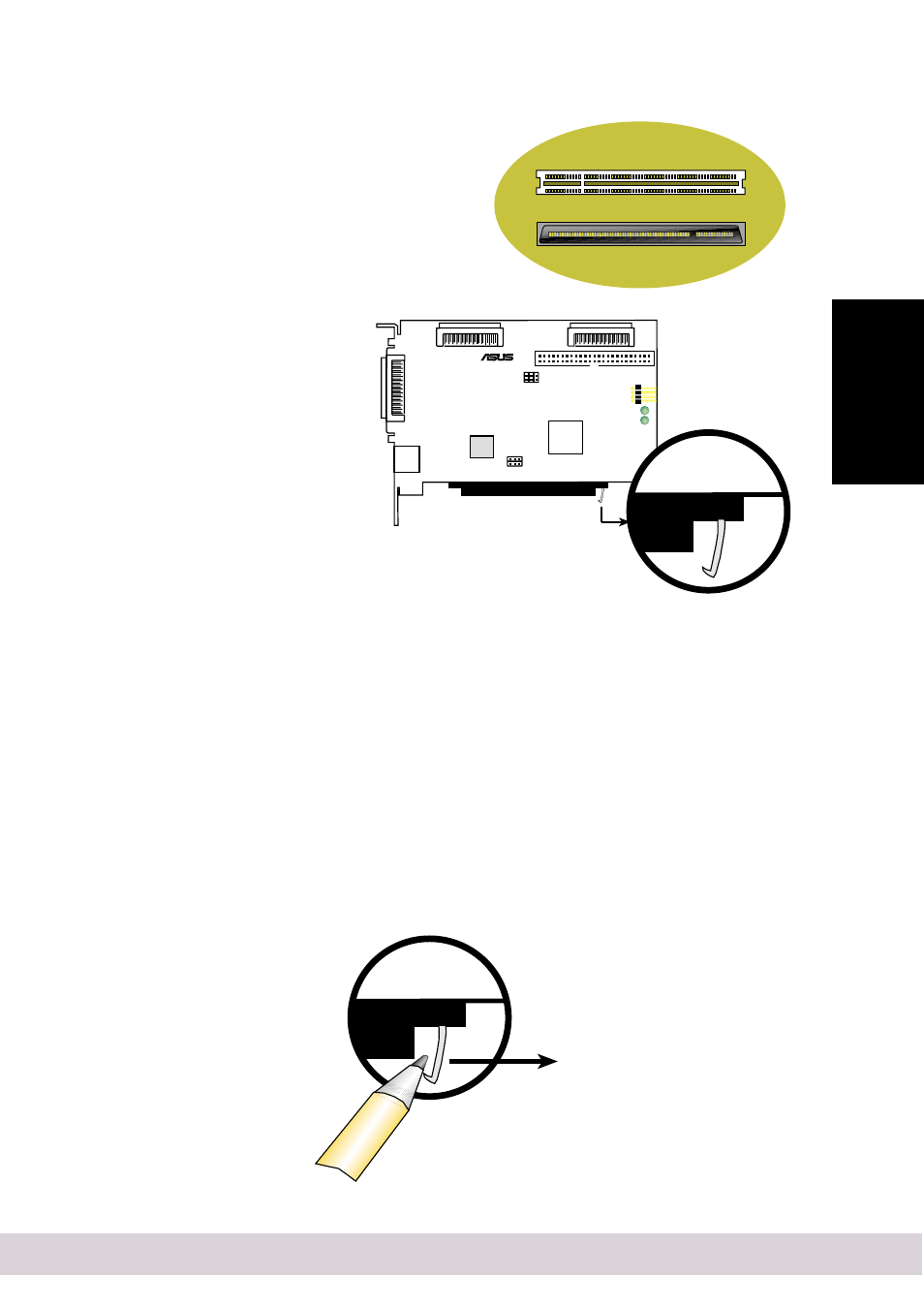

ASUS Proprietary Expansion Slot
PCI Expansion Slot
®
Internal Narrow
SCSI Connector
(Channel A)
1
JP3
JP4
SCSI_EN
LAN_EN
LED2
LED1
CHA-WIDE CHB-WIDE
3Com
LAN
Controller
Adaptec
A I C - 7 8 9 9 G
S C S I
C o n t r o l l e r
RJ45
Connector
External Ultra160
SCSI Connector
(Channel B)
SCSI-50
CHBEXTWIDE
SCSILED
ASUSCONNECT
Latc h
To release latc h
