Using the HAFM application

48

Viewing and Editing the Group log

To view and delete the event logs that were created using Create Group Event Log:

1.

Select Monitor > Logs > Group. The Group Log dialog box (

Figure 13

) displays.

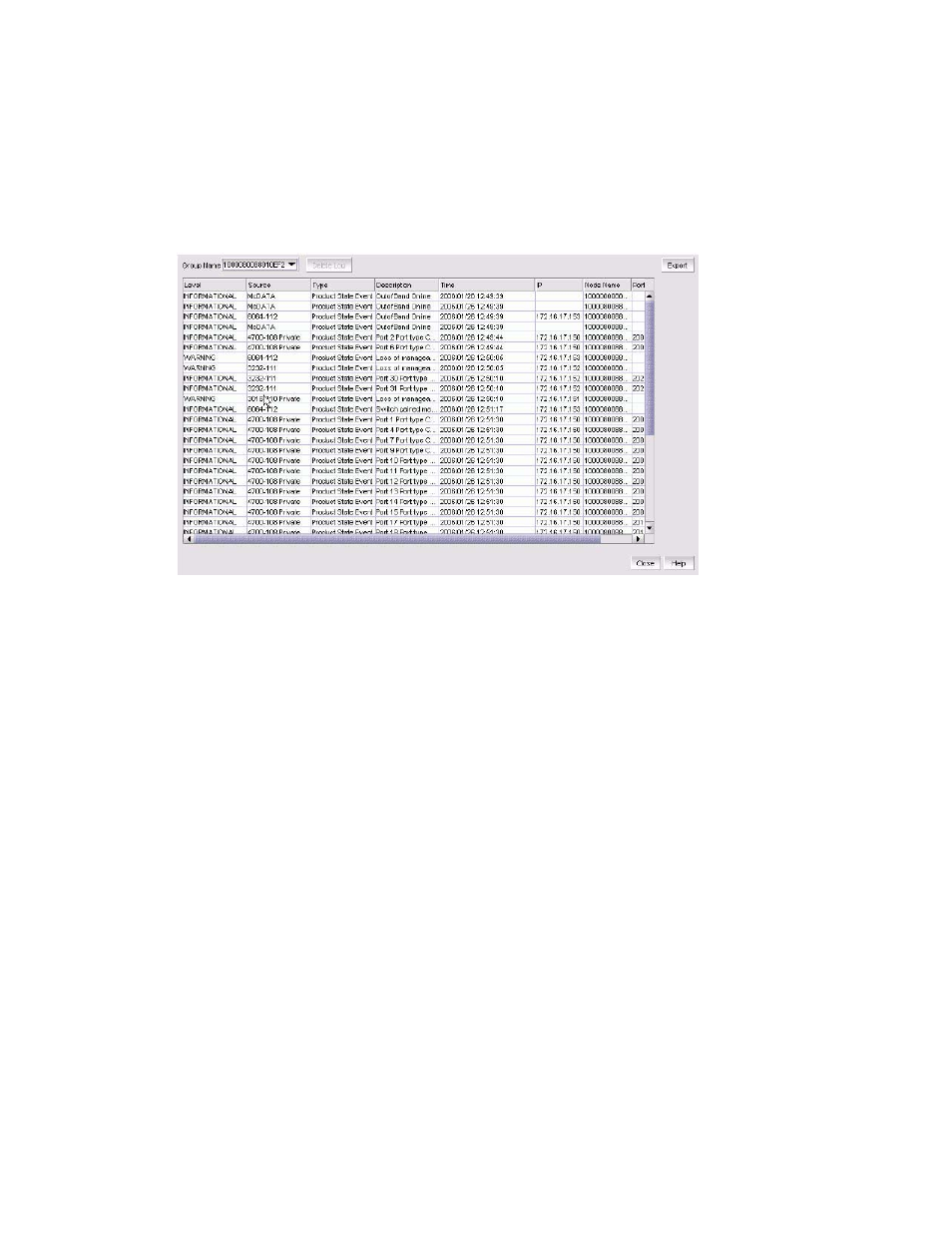

Figure 13

Group Log dialox box

2.

To save the group log, click Export. You are prompted to name the group log.

3.

Browse to the directory where you wan to save the file, then enter the group log name.
The default file type is .txt.

4.

To delete the group log, click Delete Log.

5.

To exit the group log, click OK.

Installing E/OS Firmware

The Install E/OS firmware option installs firmware on a group of products (either switches or

directors).
To access the Install E/OS Firmware dialog box:

1.

From the main menu, select the Configure menu.

2.

Select the Group Manager option.

3.

Select Install E/OS firmware, and the following tabs display on the left side:
• Select Switches
• Select Firmware
• Execution Options
• Install
• History
