HA-Fabric Manager user guide
43
Grouping on the Physical Map
To simplify the Physical Map, devices are displayed in groups (
). Groups are displayed
with background shading and are labeled as a group. You can expand and collapse groups to
easily view a large topology.

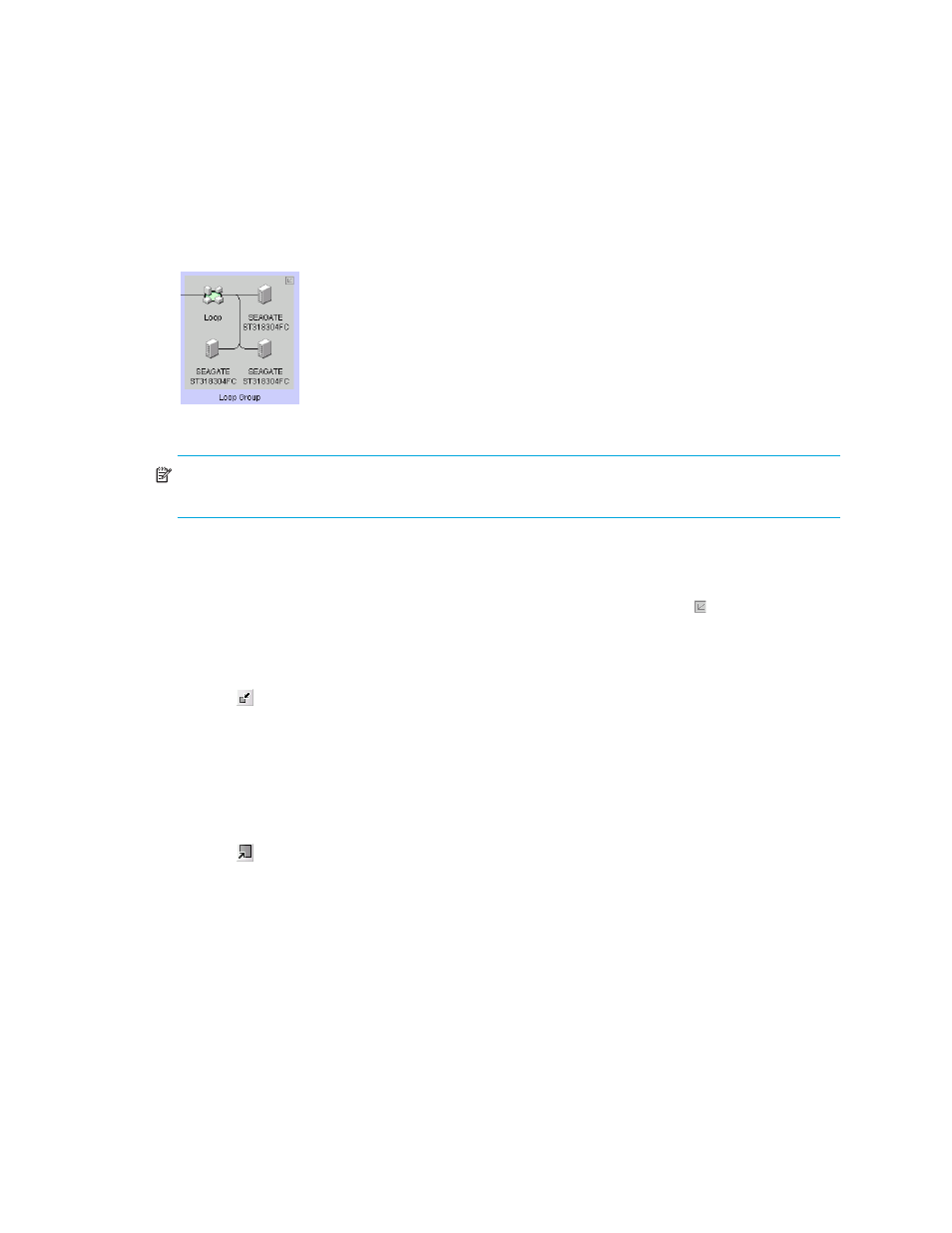

Figure 10
A group on the Physical Map
NOTE:
Zonable fabrics are true fabrics. Fabric groups are a set of connected devices that can or
cannot be fabric devices.
Collapsing groups
To collapse a single group on the Physical Map:
•
Double-click the icon at the top right corner of the group on the topology ( ).
•
Double-click in the group, but not on a device.
•
Right-click in a group, but not on a device, and select Collapse.
To collapse all groups on the topology by one level, click the Collapse icon on the HAFM
toolbox ( ).
Expanding groups
To expand a group on the Physical Map:
•
Double-click the group icon.
•
Right-click the group icon and select Expand.
To expand all groups on the topology by one level, click the Expand icon on the HAFM
toolbox ( ).
