Deleting devices
To delete planned devices, right-click the planned device icon on the Physical Map and select
Delete.
Displaying a planned device as an installed device
Right-click a planned device icon on the Physical map and select Planned Device.
• If the Planned Device option is selected, the device icon is displayed inside an icon box.
• If the option is not selected, the device icon is displayed without a box.
Editing port types
To arrange devices and edit a planned device’s port types:
NOTE: You can perform this task only in the Planning window.
1. Select View > Planned SAN from the Planning window menu.
2. Add devices as necessary.
3. Rearrange devices as necessary.
4. Connect the devices.
5. Right-click a planned device icon and select Ports to view the device’s ports.
6. Click the black arrow next to the port number.
The Port Properties dialog box is displayed (
Figure 96 ).

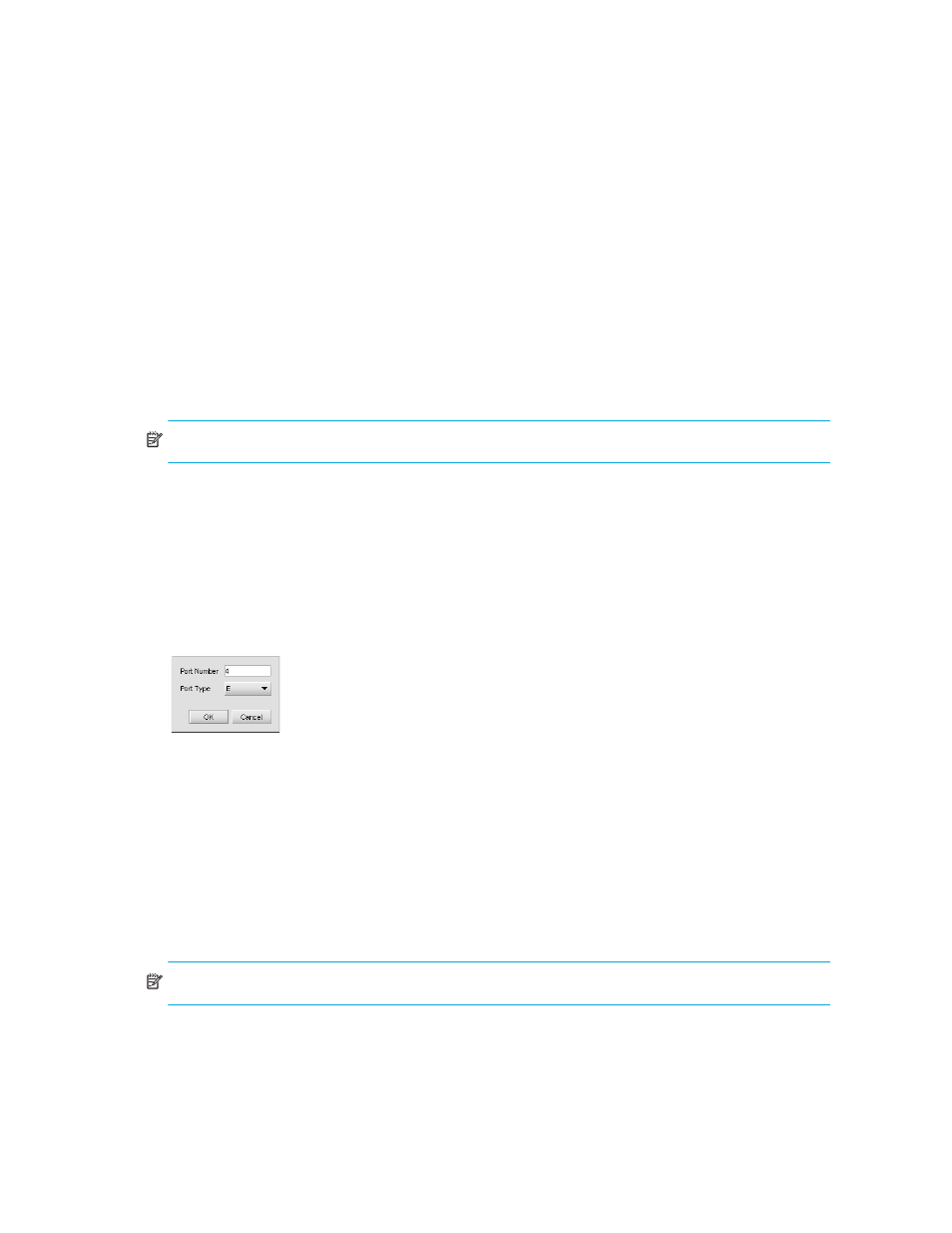

Figure 96 Port Properties dialog box
7. Enter a port number in the Port Number field.
8. Select a port type from the Port Type list (available only for multiport devices).
9. Click OK.
10. Optionally, right-click a planned device icon and select Planned Device.
The device changes from a planned device to an implemented device.
Configuring ports
You can configure port numbers and types for planned devices.
NOTE: To configure planned ports, planned devices must be connected.
1. Right-click a planned device icon on the Physical Map and select Ports.
