Optional HAFM features 138
The Edit Link Threshold dialog box is displayed ( Figure 85 ).

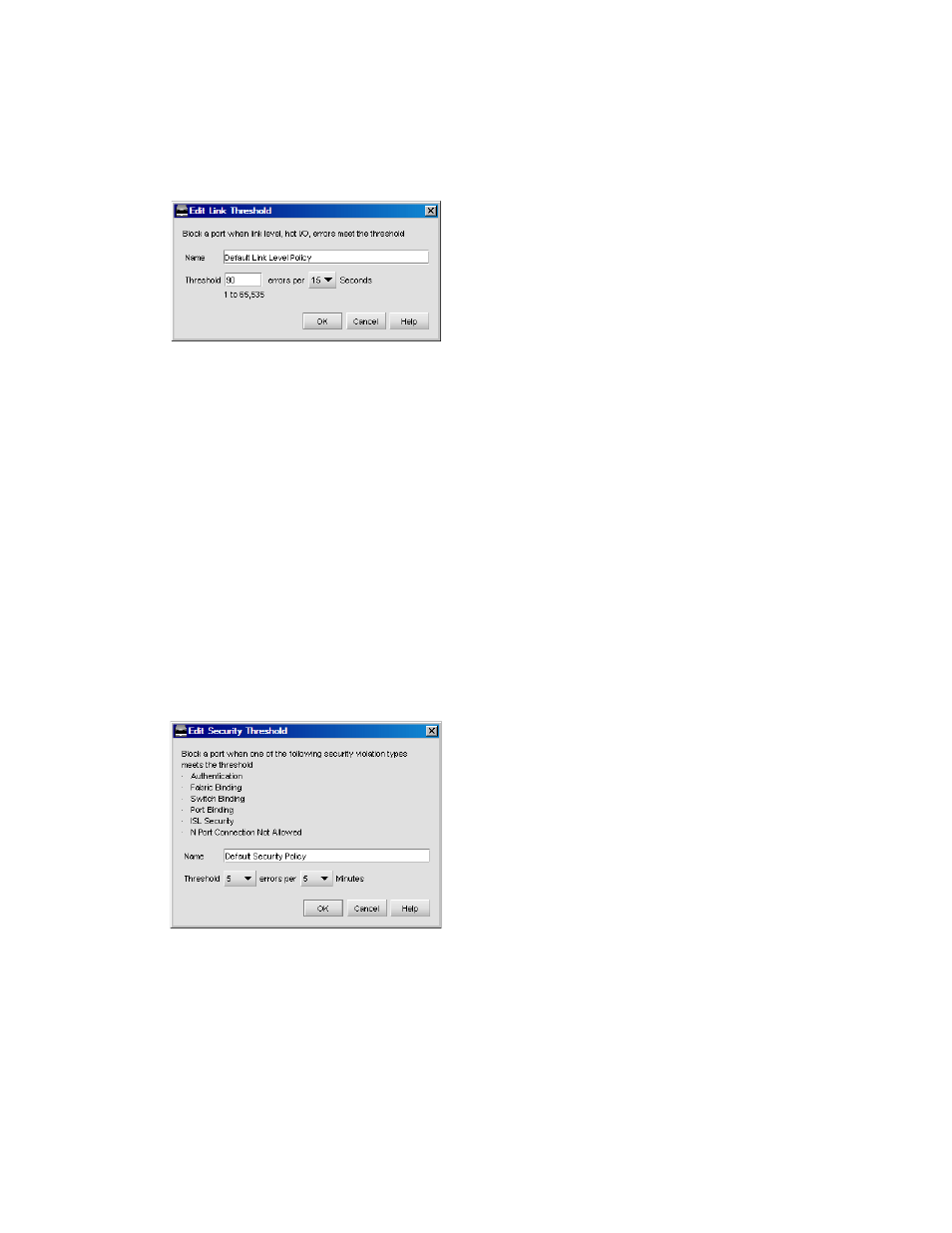

Figure 85 Edit Link Threshold dialog box
4. Make changes to the threshold, if necessary.
5. Click OK to accept the changes and close the Edit Link Threshold dialog box.
If the threshold has already been assigned to ports, the message This edit will apply
to affected switches
is displayed. Click OK to close.
6. To assign this threshold to fabrics, switches, or switch ports, see ” Assigning thresholds ” on
page 136.
7. Click OK.
Editing security thresholds
To edit a security threshold:
1. Select Configure > Port Fencing.
The Port Fencing dialog box is displayed (
Figure 80 on page 134).
2. Select Security from the Violation Type list.
3. Click Edit.
The Edit Security Threshold dialog box is displayed (
Figure 86 ).
Figure 86 Edit Security Threshold dialog box
4. Make changes to the threshold, if necessary.
5. Click OK to accept the changes and close the Edit Security Threshold dialog box.
If the threshold has already been assigned to ports, the message This edit will apply
to affected switches
is displayed. Click OK to close.
