HA-Fabric Manager user guide 137
Editing thresholds
HAFM allows you to edit the name, number of events, and time period of ISL protocol, link, and
security thresholds.
Editing ISL Protocol Thresholds
To edit an ISL protocol threshold:
1. Select Configure > Port Fencing.
The Port Fencing dialog box is displayed (
Figure 80 on page 134).
2. Select ISL Protocol from the Violation Type list.
3. Click Edit.
The Edit ISL Threshold dialog box is displayed (
Figure 84 ).

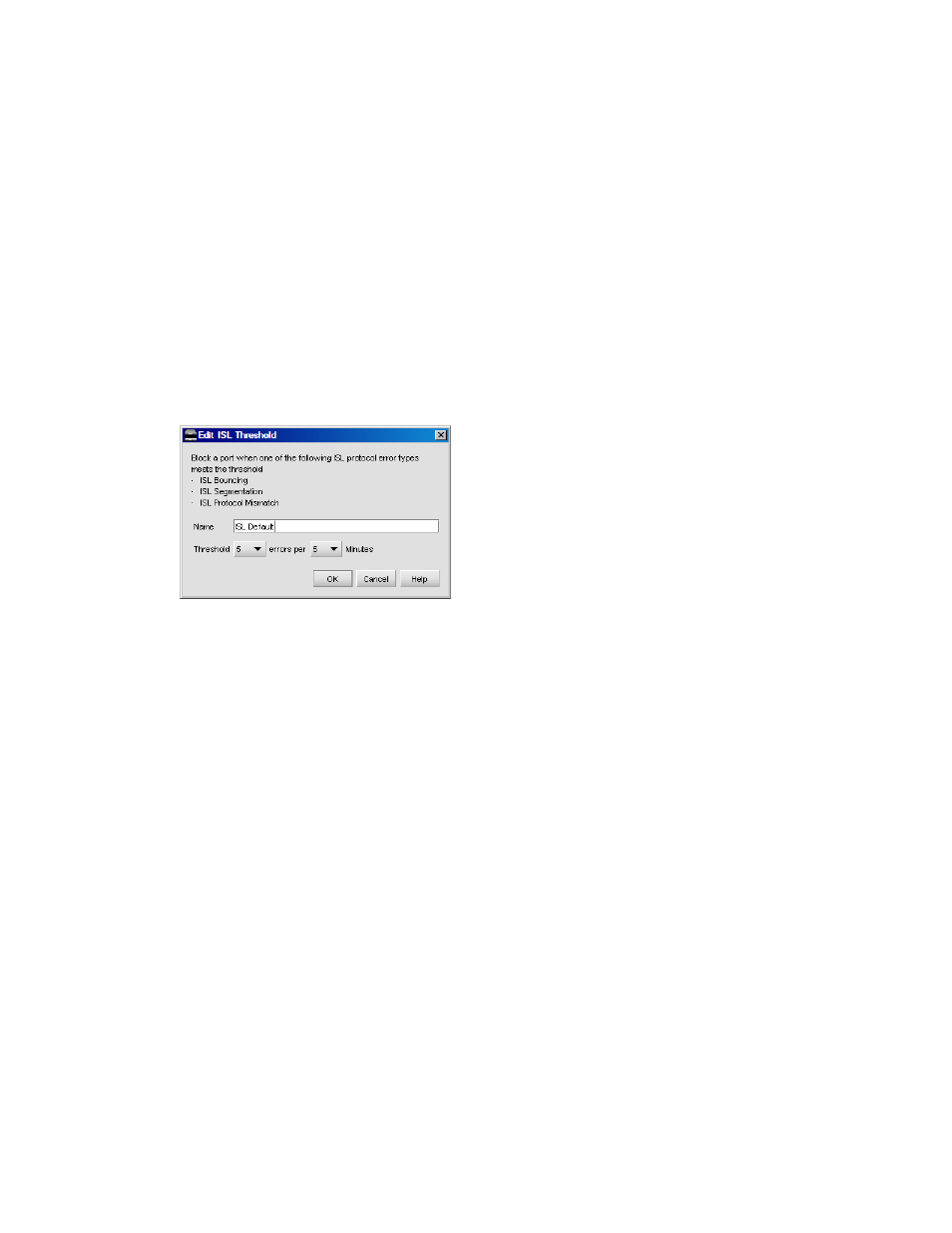

Figure 84 Edit ISL Threshold dialog box
4. Make changes to the threshold, if necessary.
5. Click OK to accept the changes and close the Edit ISL Threshold dialog box.
If the threshold has already been assigned to ports, the message This edit will apply
to affected switches
is displayed. Click OK to close.
6. To assign this threshold to fabrics, switches, or switch ports, see ” Assigning thresholds ” on
page 136.
7. Click OK.
Editing link thresholds
To edit a link threshold:
1. Select Configure > Port Fencing.
The Port Fencing dialog box is displayed (
Figure 80 on page 134).
2. Select Link from the Violation Type list.
3. Click Edit.
