Monitoring SAN products 114
The application also has an event notification feature. Configure event notification to specify when
the application notifies users of an event. See ” Using event notifications ” on page 116 for details.
Viewing the Master Log

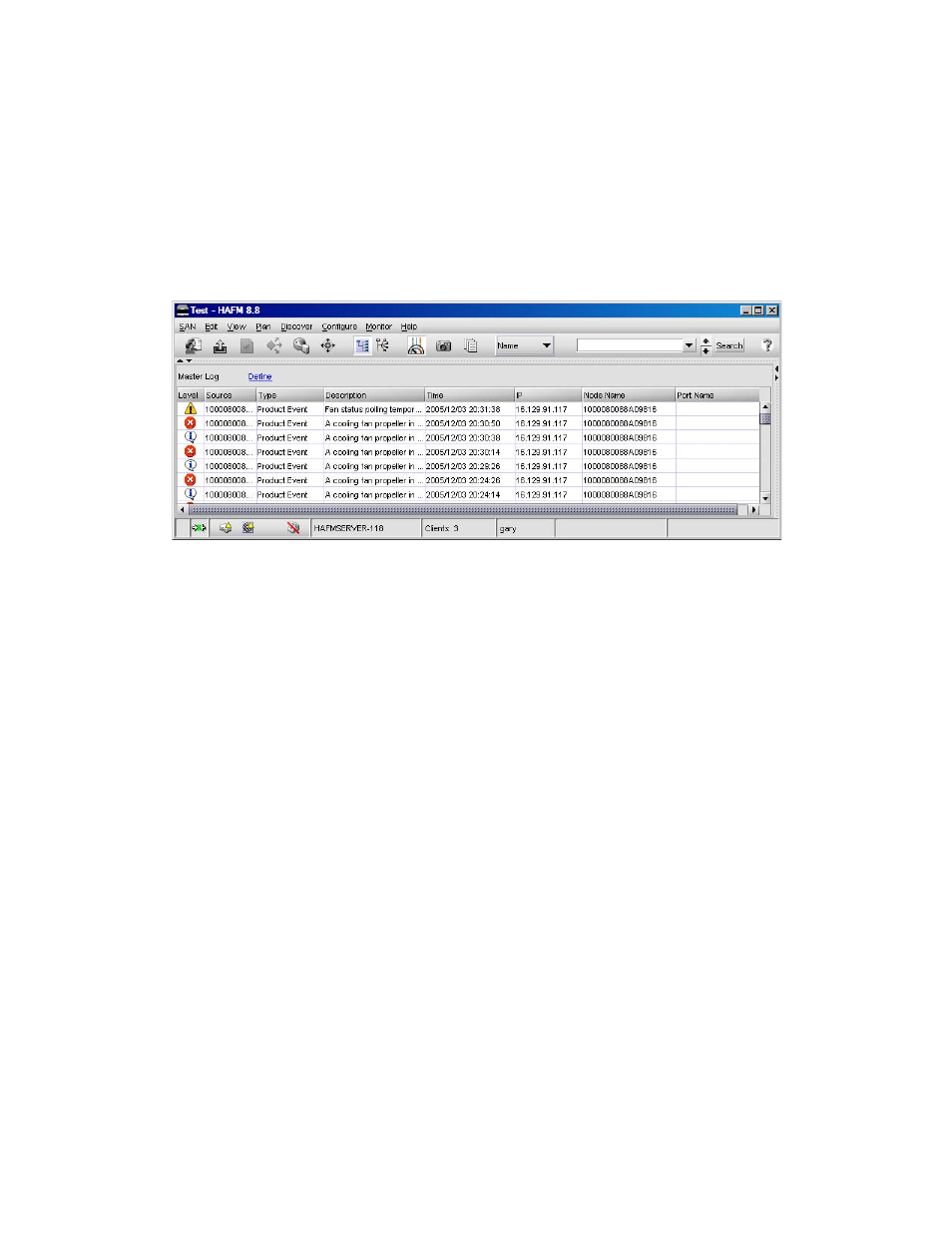

The main HAFM window displays the Master Log ( Figure 66 ). It provides detailed information about
all SAN events. If the Master Log is not displayed in the main window, select View > All Panels.
Figure 66 Master log
The Master Log columns are:
• Level—The level of the event:
• Informational
• Warning
• Fatal
• Source—The product on which the event occurred
• Type—The type of event (for example, client-server communication events)
• Description—Description of the event
• Time—The time and date on which the event occurred
• IP—The IP address of the product on which the event occurred
• Node Name—The name of the node on which the event occurred
• Port Name—The name of the port on which the event occurred
Viewing other logs
If you want to view certain types of events, but not the entire event log, you can open a specific log.
To view more than one log, you must open a separate window for each.
1. Select Monitor > Logs.
