Configuring SAN products and fabrics 110
The Configure Trap Forwarding dialog box is displayed ( Figure 64 ).

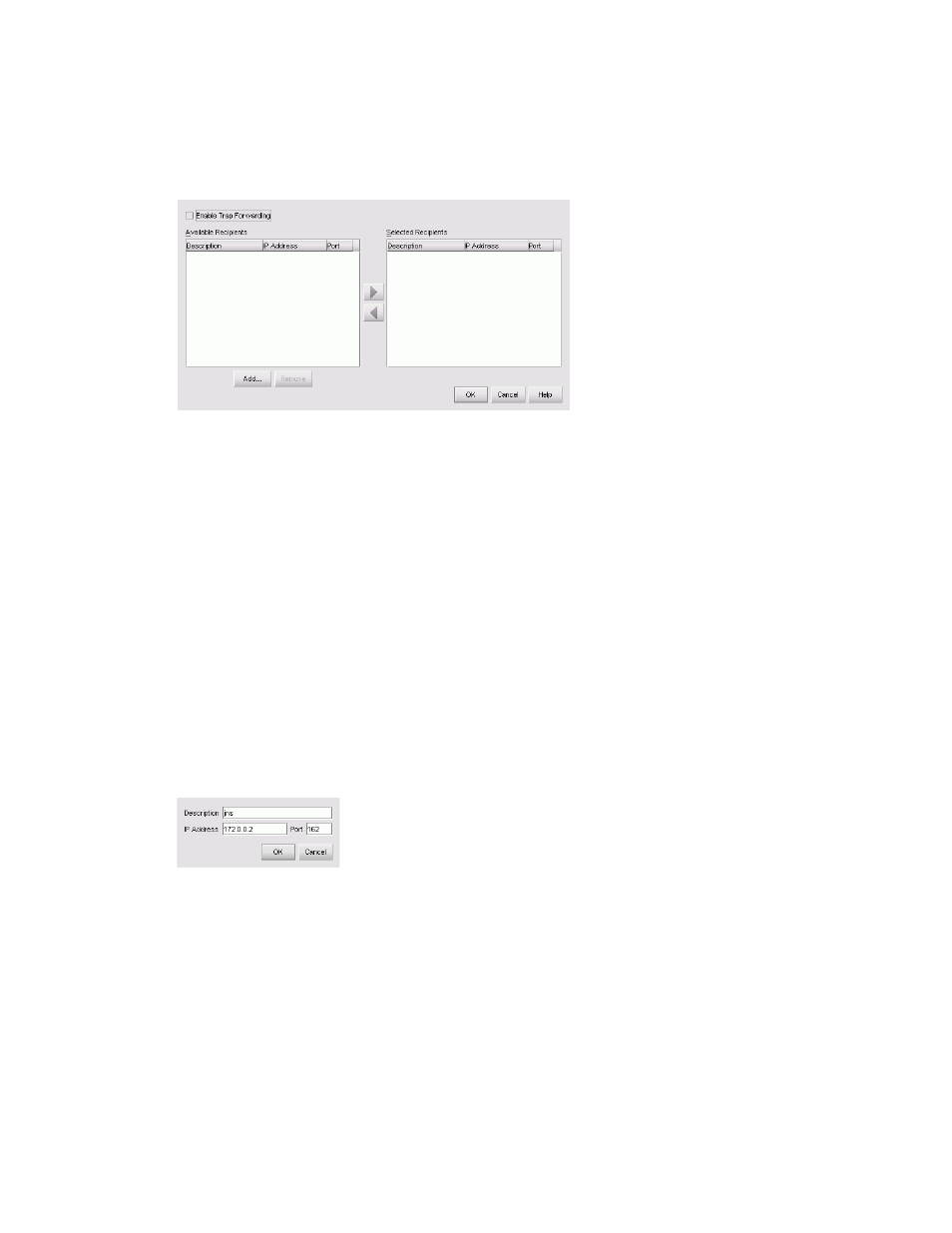

Figure 64 Configure Trap Forwarding dialog box
2. If necessary, add trap recipients to the Available Recipients list.
See ”
Adding trap recipients ” on page 110 for instructions.
3. Select the recipient that you want to provide trap messages to in the Available Recipients list.
4. Click the right arrow button.
5. Scan the Selected Recipients list, and, if necessary, select recipients to move from the list and
then click left arrow button.
6. Select the Enable Trap Forwarding check box.
7. Click OK.
Adding trap recipients
To add a trap recipient:
1. Select Monitor > Trap Forwarding.
The Configure Trap Forwarding dialog box is displayed (
Figure 64 ).
2. Click Add.
The Add Trap Recipient dialog box is displayed (
Figure 65 ).
Figure 65 Add Trap Recipient dialog box
3. Enter the appropriate information in the following boxes:
• Description
• IP Address
• Port
