8 J

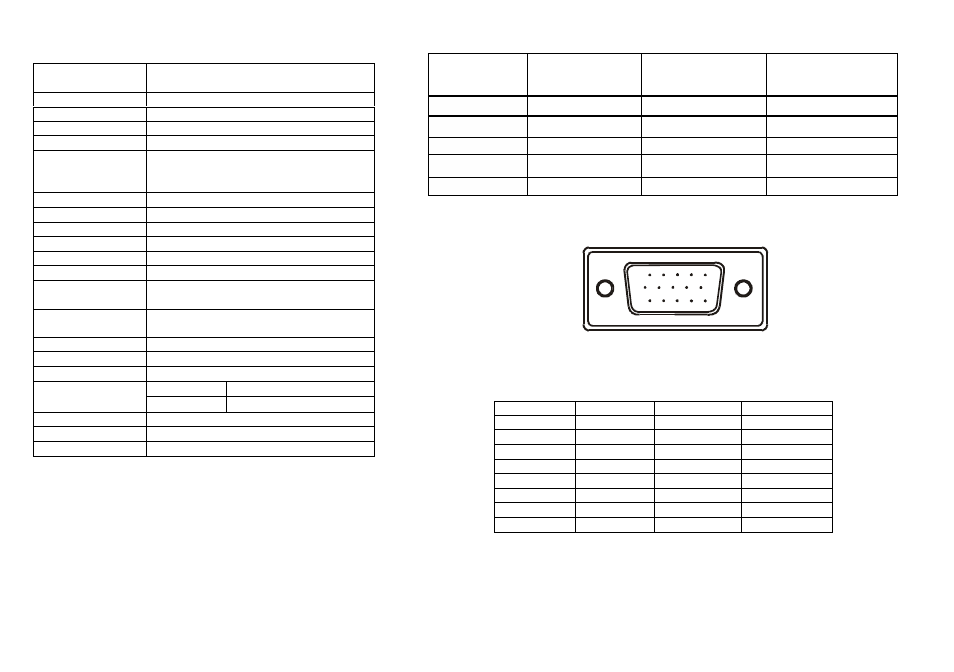

SPECIFICATION
CRT
38.1cm(15"), 90º deflection, 29mm neck,
0.24mm(H), 0.28mm(D)
dot pitch
Viewable Image Size
35.1cm (13.8"), diagonal
Video
0.7Vpp, R, G, B Analog
Separate Sync.
TTL Level
H/V-sync.:
Positive/Negative
Scanning Frequency:
Horizontal
30kHz to 56kHz automatically
Vertical
50Hz to 120Hz automatically
Max. Resolution
1024 × 768
Video Dot Rate
65MHz
Factory Preset Timings : 5
User mode Timings :
8
Power Source
Universal AC 100-240V, 50Hz/60Hz
Operating
0°C to 40°C ambient
Humidity
10% to 85% relative,
non- condensing
Dimension
(Monitor&Base)
360(W) × 362(H) × 387(D)mm
Weight (Net)
11.5kg
Signal Cable
Attached Mini D-sub 15 Male
Plug & Play
DDC1/2B
On Mode
75W
EPA E
NERGY
S
TAR
®
Off Mode
8W
Power consumption
75 Watts Max.
Preset display area
260mm × 195mm
Regulations
UL, CSA, FDA, FCC, CE,
Factory Preset Timing Table
STANDARD
RESOLUTION
HORIZONTAL
FREQUENCY
VERTICAL FREQUENCY
IBM
720 x 400
31.47kHz
70Hz
VGA
640 x 480
31.47kHz
60Hz
VESA/85
640 x 480
43.3kHz
85Hz
VESA/85
800 x 600
53.67kHz
85Hz
VESA/60
1024 x 768
48.36kHz
60Hz
CONNECTOR PIN ASSIGNMENT
1
5
6
10
11
15
15 -Pin Color Display Signal Cable
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1.
Red
9.
NC
2.
Green
10.
Ground
3.
Blue
11.
Monitor Ground
4.
Ground
12.
DDC-Serial Data
5.
Ground
13.
H-Sync
6.
R-Ground
14.
V-Sync / *V-Clk
7.
G-Ground
15.
DDC-Serial Clock
8.
B-Ground
*
For DDC
