GB - 9

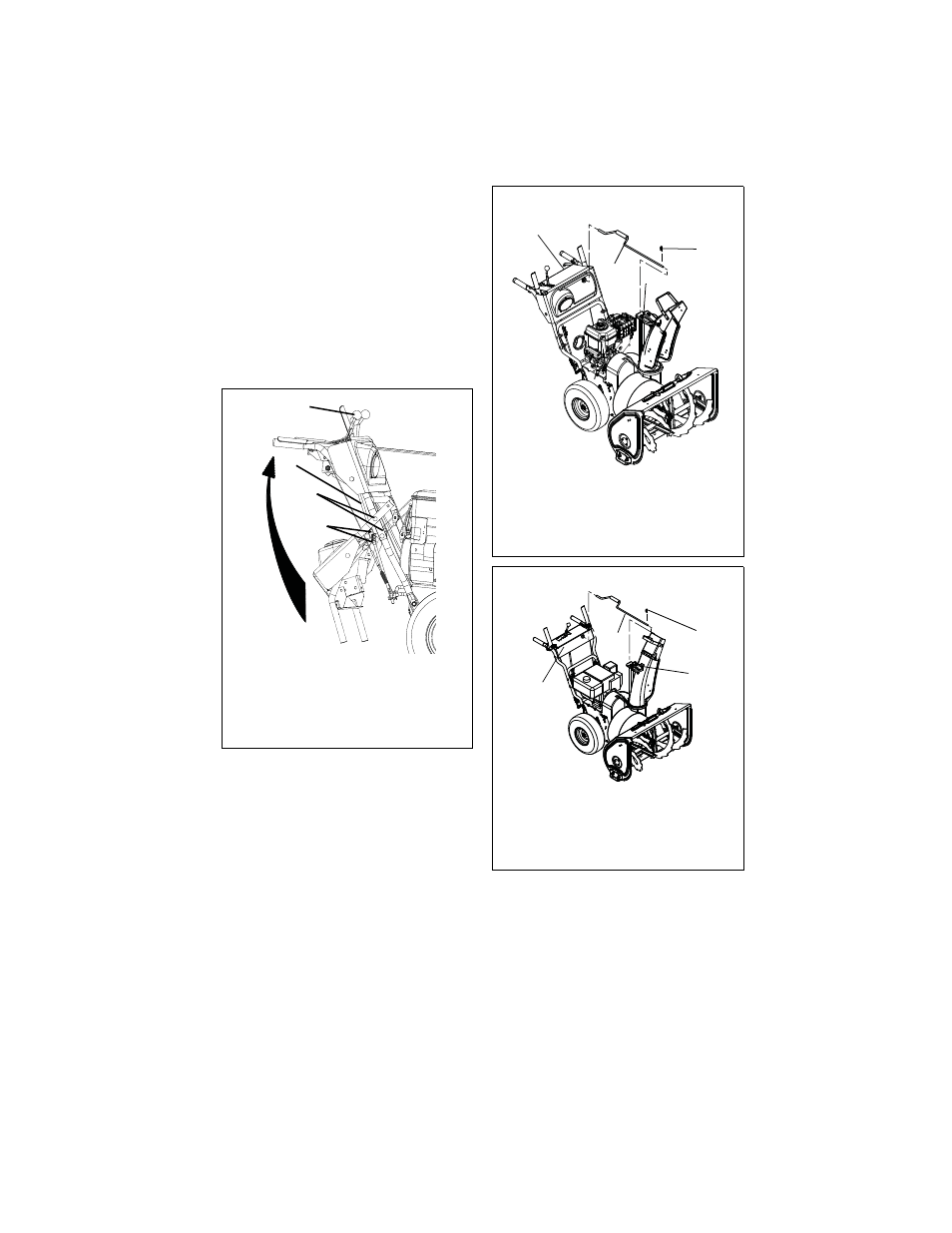

Unfold Handlebar (Figure 5)
1. Remove the lower and loosen the upper
hardware on the handlebar assembly.
2. Loosen the hardware on the shift rod.
3. Put the speed selector lever in the
second reverse position. (Fastest
forward position for 921011, 014, 019).
4. Rotate the handlebars into operating
position.
IMPORTANT: Be careful not to damage cable
spring hooks when rotating handlebars
upward.
5. Install and tighten all hardware on the
handlebar assembly and shift rod.
Install Discharge Chute and
Discharge Chute Crank (921011, 012,
013, 014, 015, 016, 019, 020)
(Figure 6 and 7)
1. Grease underside of discharge chute
ring (if not already greased).
2. Remove mounting hardware from auger
housing (Figure 6).
3. Install discharge chute over opening in
the auger housing. Finger tighten the
mounting hardware removed in step 2.
NOTE: Leave discharge chute pedestal loose
to help install the chute crank.
4. Insert the short end of the chute rod into
the hole in the front of the control panel.
5. Connect the chute crank to the pinion
gear on chute with spring clip.
6. Orient the chute and pedestal to its most
vertical position and tighten pedestal
hardware to 15 – 31 lbf-ft (20 – 42 N•m)
(Figure 6).
1. Handlebar
Hardware
2. Shift Rod
Hardware
3. Shift Rod
4. Speed
Selector
Lever
Figure 5
OS7030
1, 2
3
2
4
Figure 6
1. Chute Crank
2. Gear Cover
3. Control Panel
4. Spring Pin Clip
1
4
OS7061
3
921012, 013, 015, 016, 020
2
Figure 7
921011, 014, 019
1. Chute Crank
2. Gear Cover
3. Control Panel
4. Spring Clip Pin
1
4
3
2
