Snow Clean-Out Tool
(Figure 16)
To clear the discharge chute:
1. Shut off the engine.
2. Wait 10 seconds and make sure impeller
blades have stopped rotating.
3. Remove the snow clean-out tool (1) from
the auger housing and use it to remove
the clog from the discharge chute.
4. Replace the snow clean-out tool on the
auger housing.
Remote Deflector Control
(921013, 016, 017, 018, 020)
Place deflector into position before operation.
DO NOT throw snow any higher than
necessary.
Place deflector remote in a forward notch to
throw snow lower. Place deflector remote in a
rearward notch to throw snow higher.
Manual Discharge Deflector (921011,
012, 014, 015, 019)
ALWAYS position discharge chute deflector
at a safe angle before starting engine. DO
NOT throw snow any higher than necessary.
1. Push deflector handle forward or down
to throw snow lower.
2. Pull deflector handle up or to the rear to
throw snow higher (Figure 17).
Discharge Chute
Discharge chute rotates 200°.
ALWAYS position discharge chute in safe
direction and angle, away from operator and
bystanders, before starting engine.
WARNING: Hand contact with the
rotating impeller is the most
common cause of injury associated
with snow throwers. Never use your
hand to clean out the discharge
chute.
1

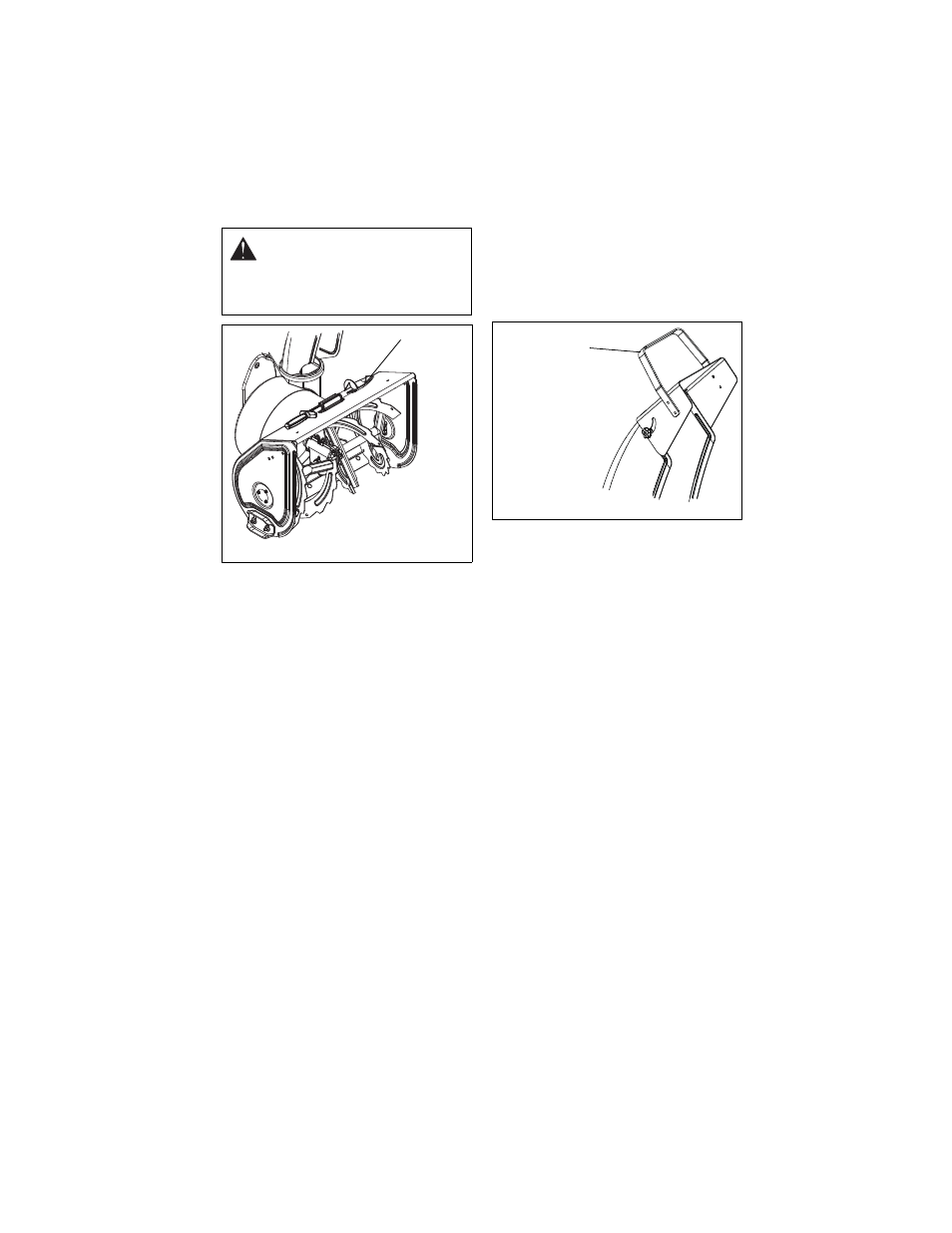

Figure 16 OS7102
Figure 17 OS7103
1
1. Deflector
Handle
