REMOTE DEFLECTOR CONTROL
(921013, 016, 017, 018, 020)

Deflector must stay in selected position while

throwing snow.
If deflector does not stay in set position:

1. Tighten nut beneath control panel to

increase pressure on deflector control
(Figure 30).

If deflector does not follow full range of travel:

1. Push deflector remote all the way

forward.

2. Loosen adjusting nuts on cable support

bracket underneath the dash panel
(Figure 30).

3. To adjust the deflector lower:

Slide cable down. Tighten bottom nut.

4. To adjust deflector higher:

Slide cable up. Tighten top nut.

5. Check travel and repeat adjustment as

necessary.

DISCHARGE CHUTE CONTROL
(921017, 018)

If chute does not stay in position while
throwing snow or if chute does not rotate
freely, adjust the cable under the gear cover
so the chute lock fingers engage or
disengage the locking gear.

If chute does not stay in position:
Loosen the cable by loosening the rear
adjustment nut, and then tightening the
forward adjustment nut against the bracket
until the lock arm engages the gear teeth
(Figure 31).

If chute does not rotate freely:

Tighten the cable by loosening the forward
adjustment nut, and then tightening the rear
adjustment nut against the bracket until all
cable slack is removed (Figure 31).

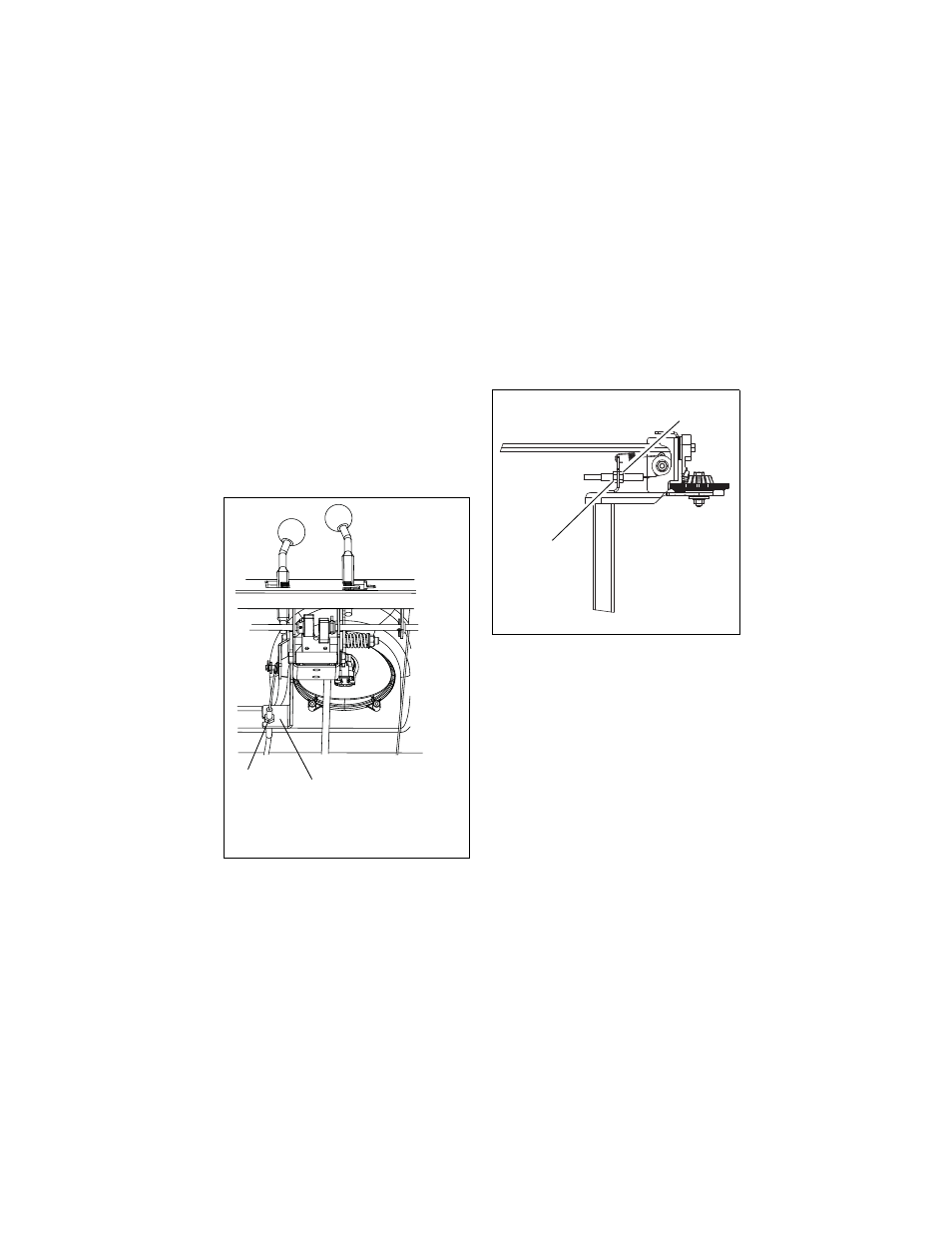

Figure 30

2

1

1. Adjusting Nuts
2. Cable Support Bracket

OS7175

1. Forward
Adjustment Nut

2. Rearward
Adjustment
Nut

Figure 31

OS7181
