Configuring the VPN client > Create an IP Security Rule
Page 15 | AlliedWare™ OS How To Note: VPNs with Windows 2000 clients, without NAT-T
4. Click Next.

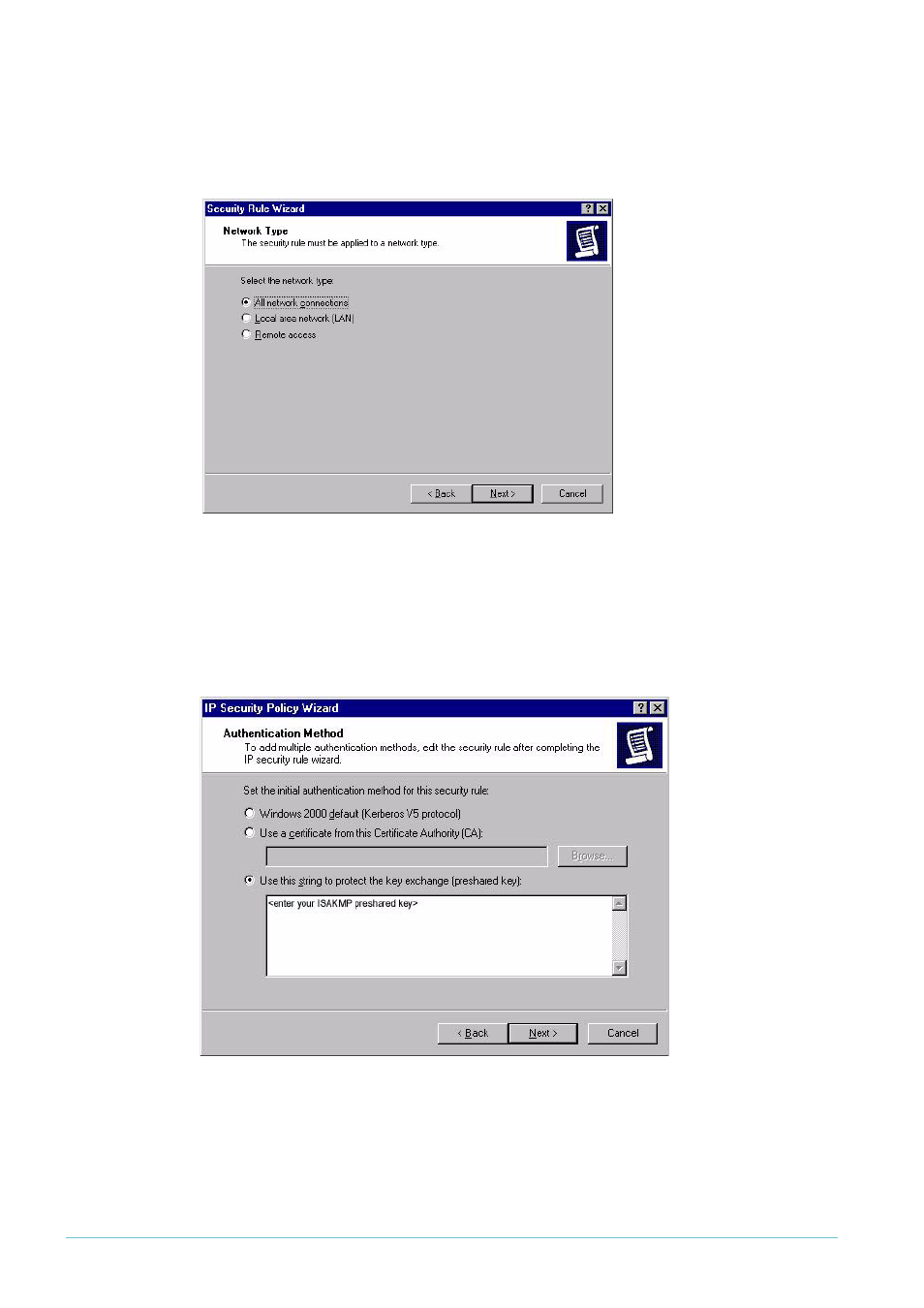

The next window lets you specify the network type the IP Security rule applies to. Make sure
the All network connections option is selected, as shown in the following figure.
5. Click Next.
The next window lets you specify the authentication method for the IP Security rule. Select
the Use this string to protect the key exchange (preshared key) option, as shown in the following
figure.
In the text box underneath the option, enter a preshared key that is known to both the
router and the client.
The pre-shared key needs to be the same ISAKMP pre-shared key as is defined on the router
(
"Generate a random key." on page 4 ).
