ASSEMBLING AND PREPARING

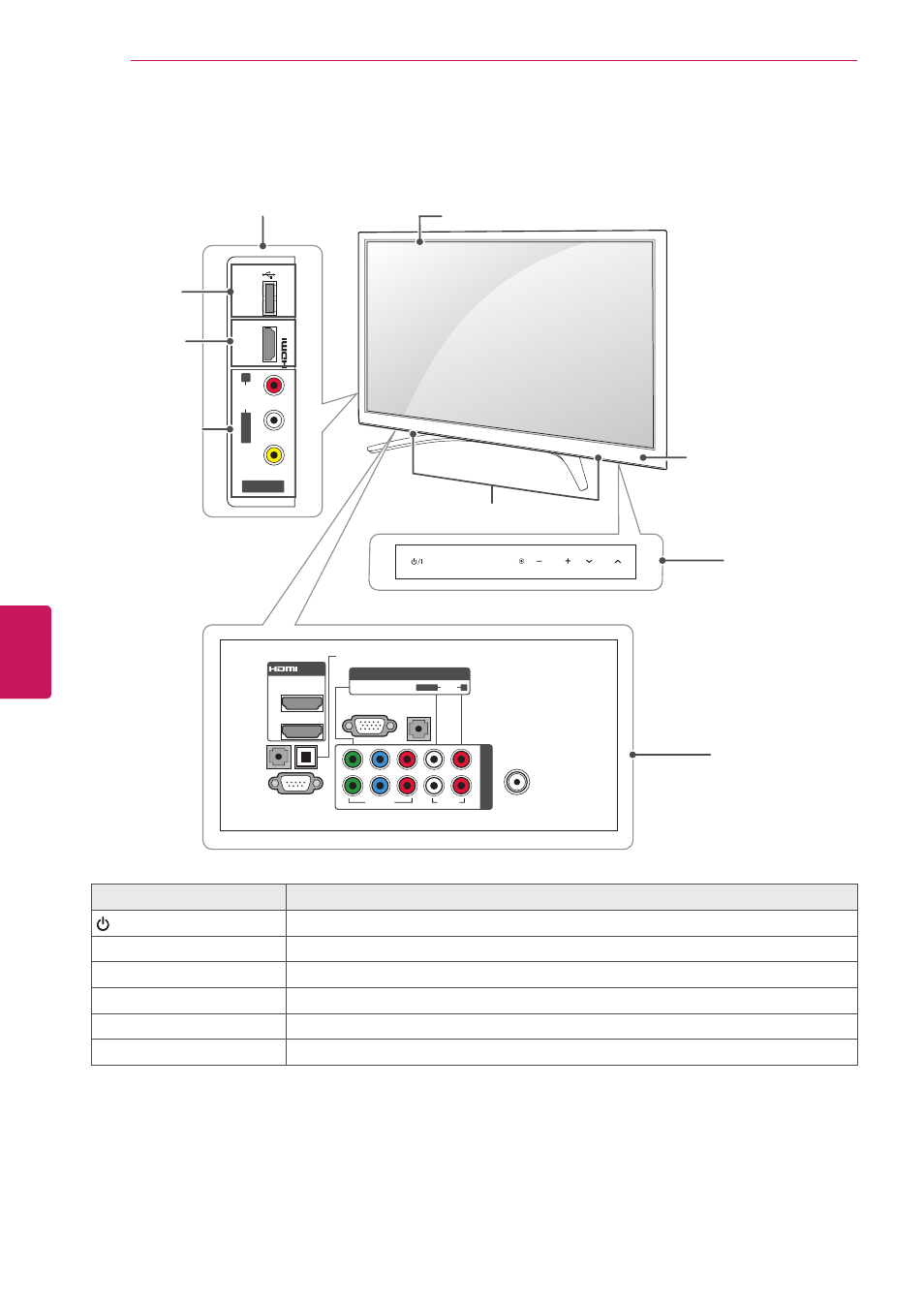

Parts and buttons
Touch button 2 Description
/ I Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the main menus, or saves your input and exits the menus.
ENTER ⊙ Selects the highlighted menu option or confirms an input.
- VOL + Adjusts the volume level.
v CH ^ Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
AV IN 2
L/
MO
NO
R
AUDI
O
VIDE
O
USB IN
IN
3
ENTER CH VOL HOME INPUT
ANTENNA
/CABLE
IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
/DVI IN
2
1
2
1
VIDEO AUDIO L(MONO) R
VIDEO AUDIO COMPONENT IN
AV IN 1
Y P B P R R L
REMOTE
CONTROL IN
USB input
HDMI input
AV (Audio and
Video) input
Screen
Speakers
Rear Connection
panel (See p.74)
Touch buttons 2
Side Connection panel
Remote control and
intelligent 1 sensors
