Antenna
Cable
Typical
TV Back
M.P.I.
Component Video Input
R Audio In L
R Audio L
Video In Y
Pr Pb
Matrix Out
DVD Player with
Component Video
S - V I D E O O U T V I D E O R - A U D I O L - / M O N O
Hook Up Component Video
1
2
Locate the component output jacks on the back
of the DVD player.

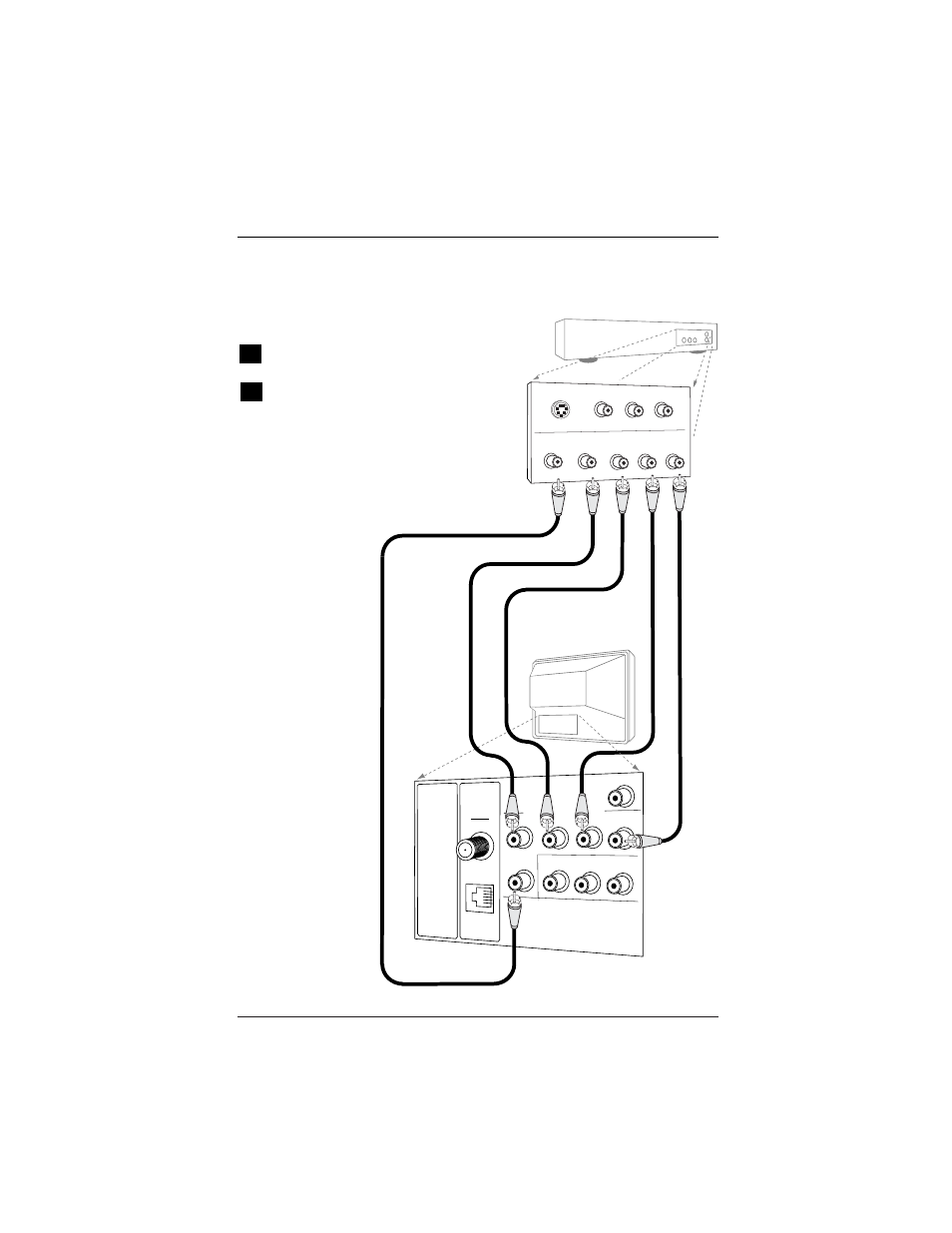

Connect the component output jacks on the DVD
player to the TV component input jacks, according
to the connection diagram shown to the right.
Component Video
Connect a component video source to the TV
COMPONENT VIDEO OUT
Y Pr Pb R L
