NetVanta

®

1534 PoE

Product Specifications

Physical Interface

Ethernet Ports

n

24 10/100/1000Base-T

n

2 SFP slots for optical connections

n

Auto rate/duplex/MDI/MDI-X

Console Port

n

DB-9, RS-232

Switching Performance

n

Non-blocking

n

8,000 MAC addresses

Maximum Forwarding Bandwidth

n

52 Gbps

Diagnostics

n

Port Mirroring

n

LLDP (802.1AB)

n

LLDP-MED

n

Ping

n

Cable Diagnostics

Front Panel Status LEDs

n

Power Status

n

LAN: Link, Activity, PoE Status

Port Statistics

n

Number of TX/RX Frames

n

Number of Collisions

n

Number of Errors

Spanning Tree Support

n

802.1D Spanning Tree

n

802.1w Rapid Spanning Tree

Link Aggregation

n

802.3ad Link Aggregation

n

Support for 6 trunk groups

n

Trunk groups consist of up to 8

access ports or 2 uplink ports

Quality of Service (Qos)

n

802.1p and DiffServ

n

4 output queues per egress port

n

Weighted Round Robin (WRR)

n

WRR w/expedite queue

VLAN Support

n

Port-based VLANs

n

802.1Q tagged trunked VLANs

n

Support for up to 255 active VLANs

Power Over Ethernet

n

802.3af and Legacy support

n

Up to 15.4 W/port

n

370 Total Watts

Storm Control

n

Broadcast, Unicast, and Multicast

Administration

n

Familiar Command Line Interface (CLI)

n

Web-based GUI

n

n-Command

®

support

n

SNMP v3

n

SYSLOG Logging

n

Email Alerts (SMTP)

n

TCL Scripting

Network Access Control

n

Port authentication (802.1x)

Wi-Fi

®

Controller

n

Controls up to 24 NetVanta Wireless Access Points

Environment

n

Operating Temperature: 0° to 50 °C (32° to 122 °F)

n

Storage Temperature: -20° to 70 °C (-4° to 158 °F)

n

Relative Humidity: Up to 95%, non-condensing

Physical

n

Chassis: 1U, 19” rackmountable metal enclosure

n

Dimensions: 1.7” H, 17.2” W, 12.7” D

n

Weight: 9.5 lbs.

n

AC Power: 100–250 VAC, 50/60 Hz

n

Power: 500 watts

Agency Approvals

n

FCC Part 15 Class A, UL 1950/CSA, CE Mark, C-tick

Ordering Information

Equipment

Part #

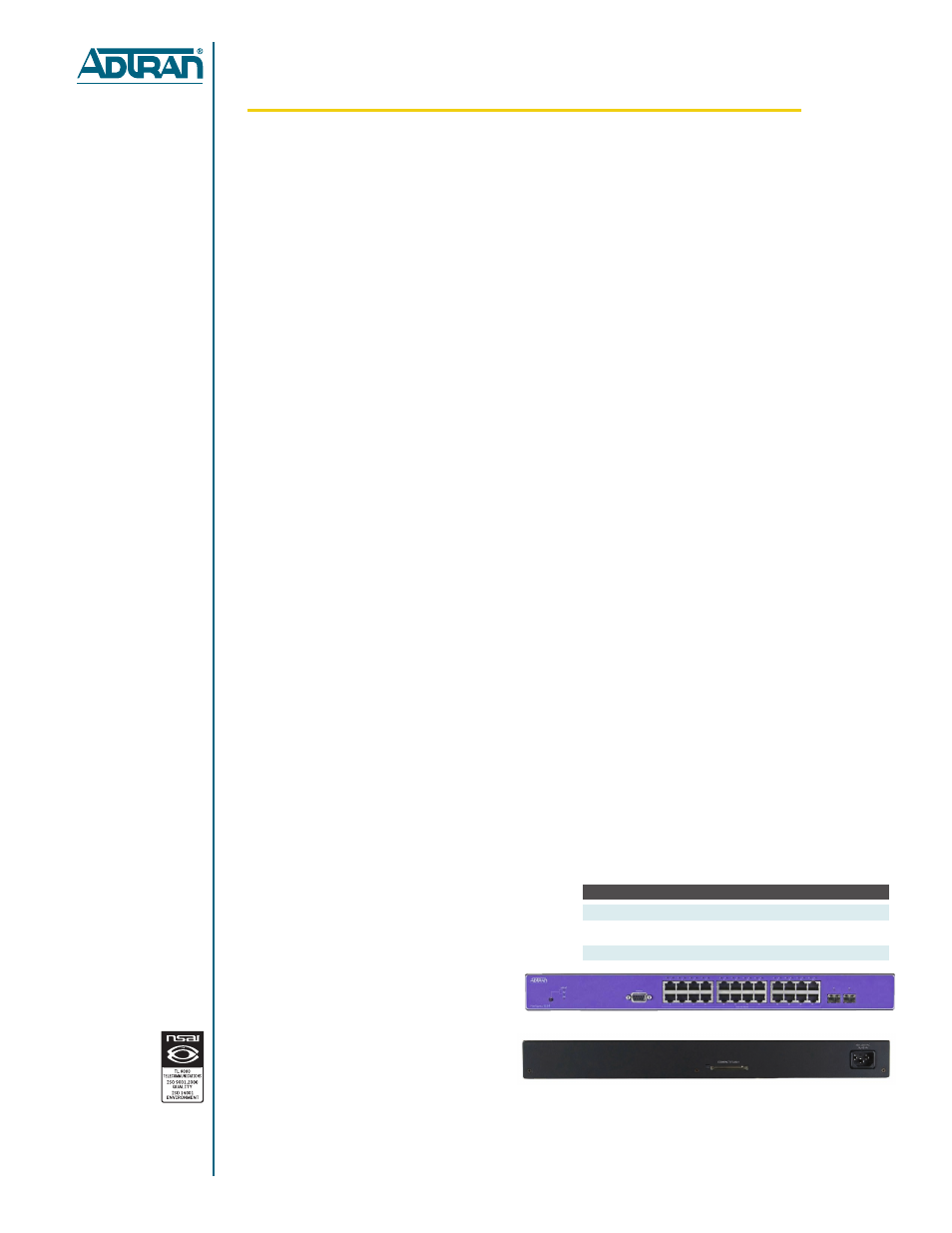

NetVanta 1534 PoE

1700591G1

NetVanta 1000BaseSX SFP (LC Connectors) 1200480E1
NetVanta 1000BaseLX SFP (LC Connectors) 1200481E1

61700591G1-8B July 2008

Copyright

©

2008 ADTRAN, Inc.

All rights reserved.

Power over Ethernet (PoE), Layer 2 Gigabit Ethernet Switch

ADTRAN believes the information in this publication to be accurate as of publication date, and is not responsible for error. Specifications

subject to change without notice. ADTRAN and NetVanta are registered trademarks of ADTRAN, Inc. and its affiliates in various countries.

All other trademarks mentioned in this document are the property of their respective owners. The NetVanta Limited Lifetime Warranty

applies to select products. This limited warranty is applicable in all countries where ADTRAN products are sold and where ADTRAN and

its authorized service providers offer warranty service. For complete warranty information, visit www.adtran.com/warranty

ADTRAN products may be subject to U.S. export controls and other trade restrictions. Any export, re-export, or transfer of the products

contrary to law is prohibited. For more information regarding ADTRAN's export license, please visit www.adtran.com/exportlicense

NetVanta 1534 PoE
