Connection
16

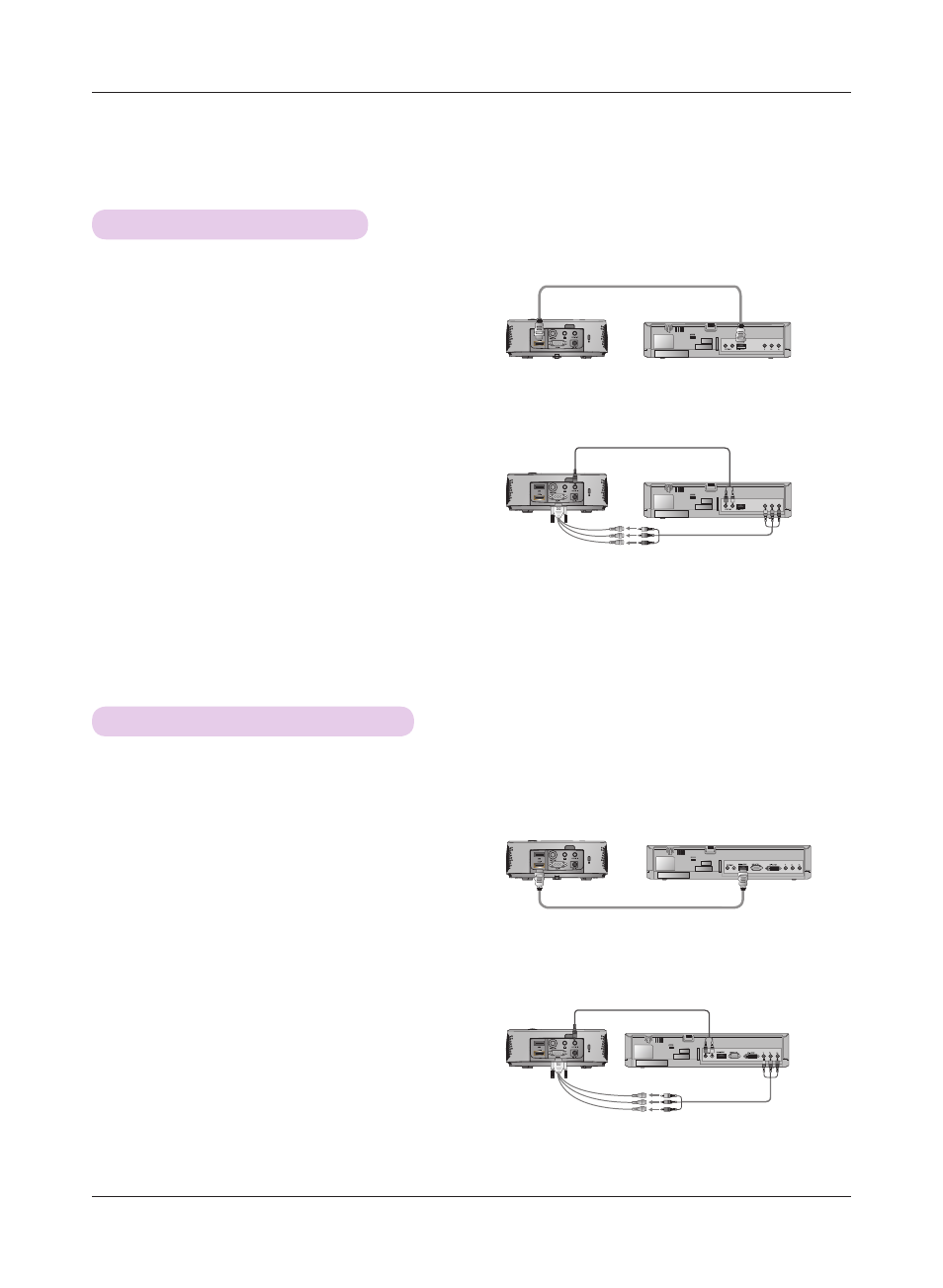

Connecting to a DVD Player
< How to connect a Component source >
1 . After connecting the Component cable of DVD Player
to the RGB to Component cable, connect it to the
RGB IN terminal of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, P B =blue, P R
=red)
2 . Connect the AUDIO IN of the projector to the output
jacks of the audio source with an audio cable.
< How to connect a HDMI source >
1 . Connect the HDMI of the projector and the HDMI out-
put port of the DVD Player with an HDMI cable.
2 . Set the DVD Player's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
* Depending on the equipment, the component output jacks (Y, P B , P R ) of the DVD Player may be labeled as Y, Pb, Pr/Y, B-Y, R-Y/Y, Cb, Cr.
Component cable
Component cable
Connecting to a D-TV Set-Top Box
< How to connect a HDMI source >
1 . Connect the HDMI of the projector and the HDMI out-
put port of the DTV set-top box with an HDMI cable.
2 . Set the DTV receiver's resolution to one of the follow-
ing: 480p(576p)/720p/1080i/1080p mode.
* To receive Digital TV (D-TV) programs, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to
the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between the projector and D-TV
Set-Top Box.
< How to connect a Component source >
1 . Connect the D-TV Set-Top Box Component cable with
RGB to Component cable and than connect it to RGB
IN of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, P B =blue, P R
=red)
2 . Connect the AUDIO IN of the projector to the output
jacks of the audio source with an audio cable.
RGB to Component
Cable
RGB to Component
Cable
HDMI Cable
HDMI Cable
Audio Cable
Audio Cable
