Aussie BONZA 3 ELITE - Manual (Page 8)

8

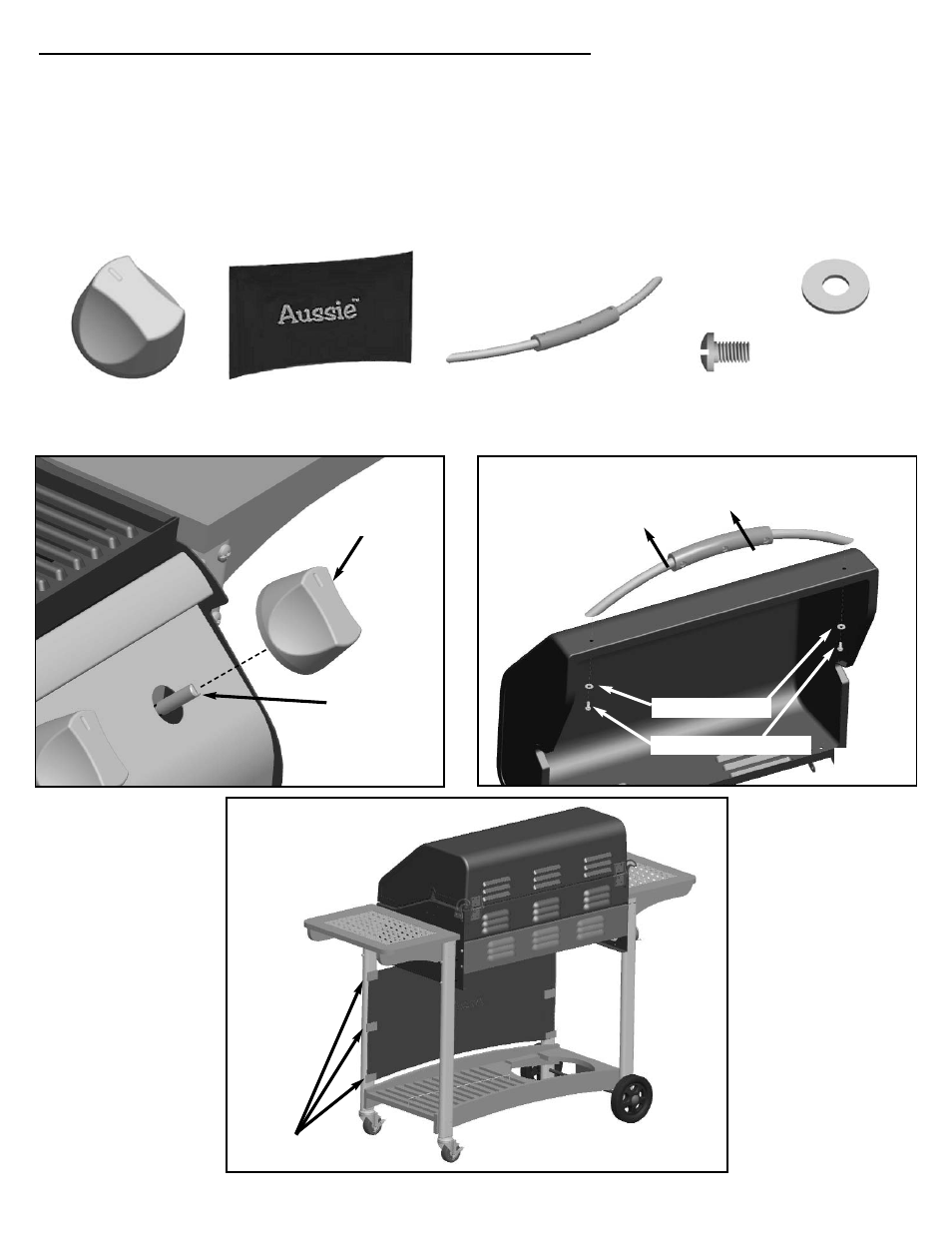

Step 6) Install Control Knobs, Fabric Panel, and Hood Handle:
• Align the flat keyed hole in the Control Knobs with the keyed stem of the Control valves. Push
the Control Knobs onto the Valve stem. (FIG. 6A)
• Open the Hood and position the handle with the bolt heads facing up. Align the threaded holes
in the handle with the two holes in the hood. Secure using two M6 x 10 Bolts and two M6
Washers. ( FIG. 6B)
• Attach the Fabric Panel by aligning it with the curved edge of the Lower Shelf and pressing it
against the velcro patches on each side of the front legs. (FIG. 6C)
(21) Fabric Panel
1 pc
(22) Handle
1 pc
FIG. 6C
(23) Bolt, M6 x 10mm
2 pc
(20) Control Knob
4 pc
FIG. 6A
FIG. 6B
Velcro Patches
(23) M6 x 10mm Bolt
Valve Stem
Handle bolt heads facing up
(20) Control
Knob
(24) Washer, M6
2 pc
(24) M6 Washer
