(13) Axle

1 pc

(14) Wheel

Assembly

2 pc

(11) Caster Wheel

2 pc

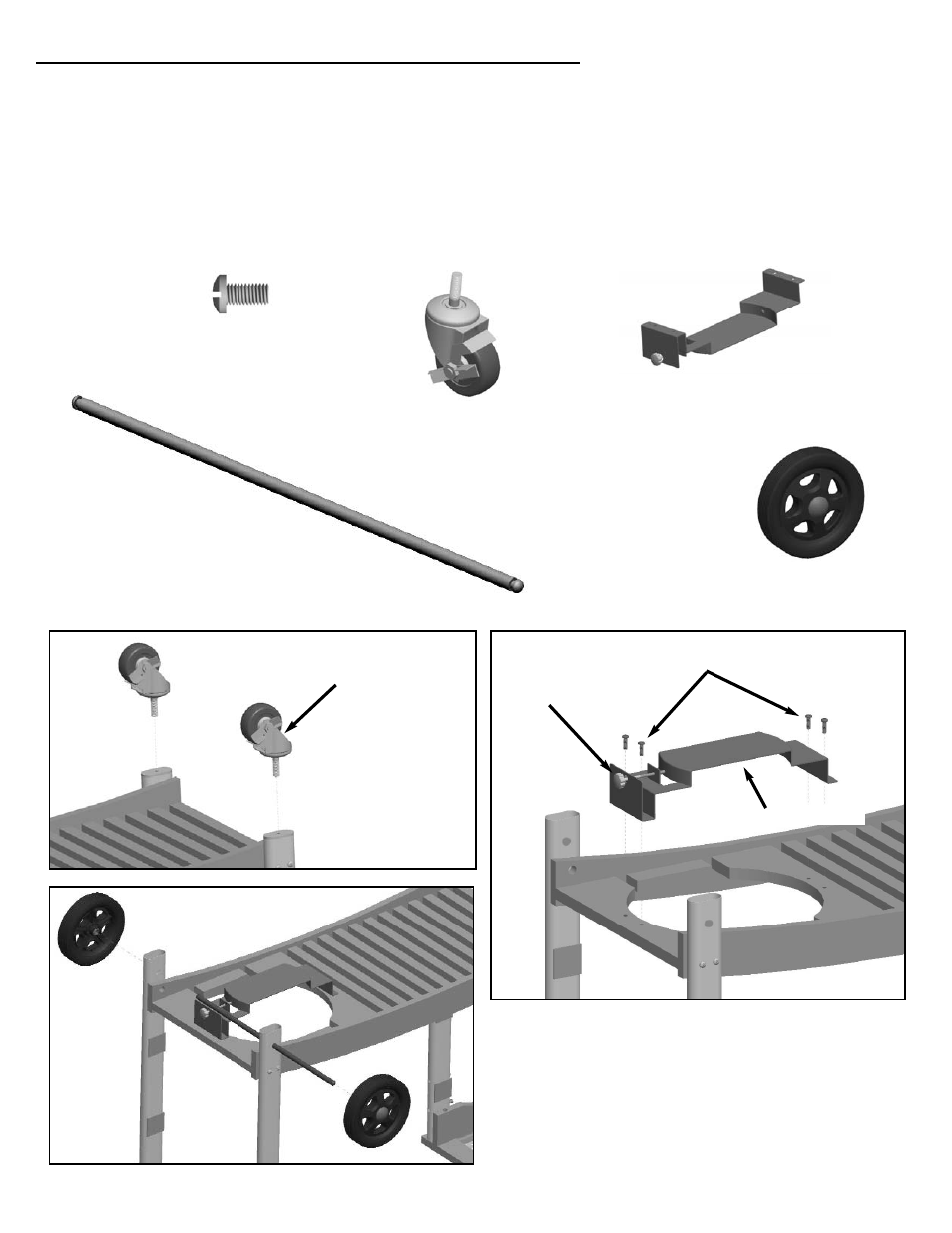

Step 4) Assemble Wheels, Casters, and LP Cylinder Support:

• Thread Caster Wheels into the Right Side Legs and tighten securely using a 3/4” wrench or

socket. (FIG. 4A)

• Place Cylinder Support on bottom side of Cart Assembly with Cylinder Lock Bolt towards the

end of the Cart Assembly. (FIG. 4B). Secure with four (8) 1/4”-20 x 1/2” Bolts.

• Slide Axle through large holes in the Left Side Wheel Legs. Press the Wheel Assemblies onto

each end of the Axle until the spring clip locks into place. (FIG. 4C)

FIG. 4C

FIG. 4B

FIG. 4A

Cylinder Lock Bolt

(12) Cylinder Support

(8) Bolt, 1/4-20 x 1/2”

Place wrench

inside here to

tighten

(8) Bolt, 1/4-20 x 1/2”

4 pc

(12) Cylinder Support

1 pc
