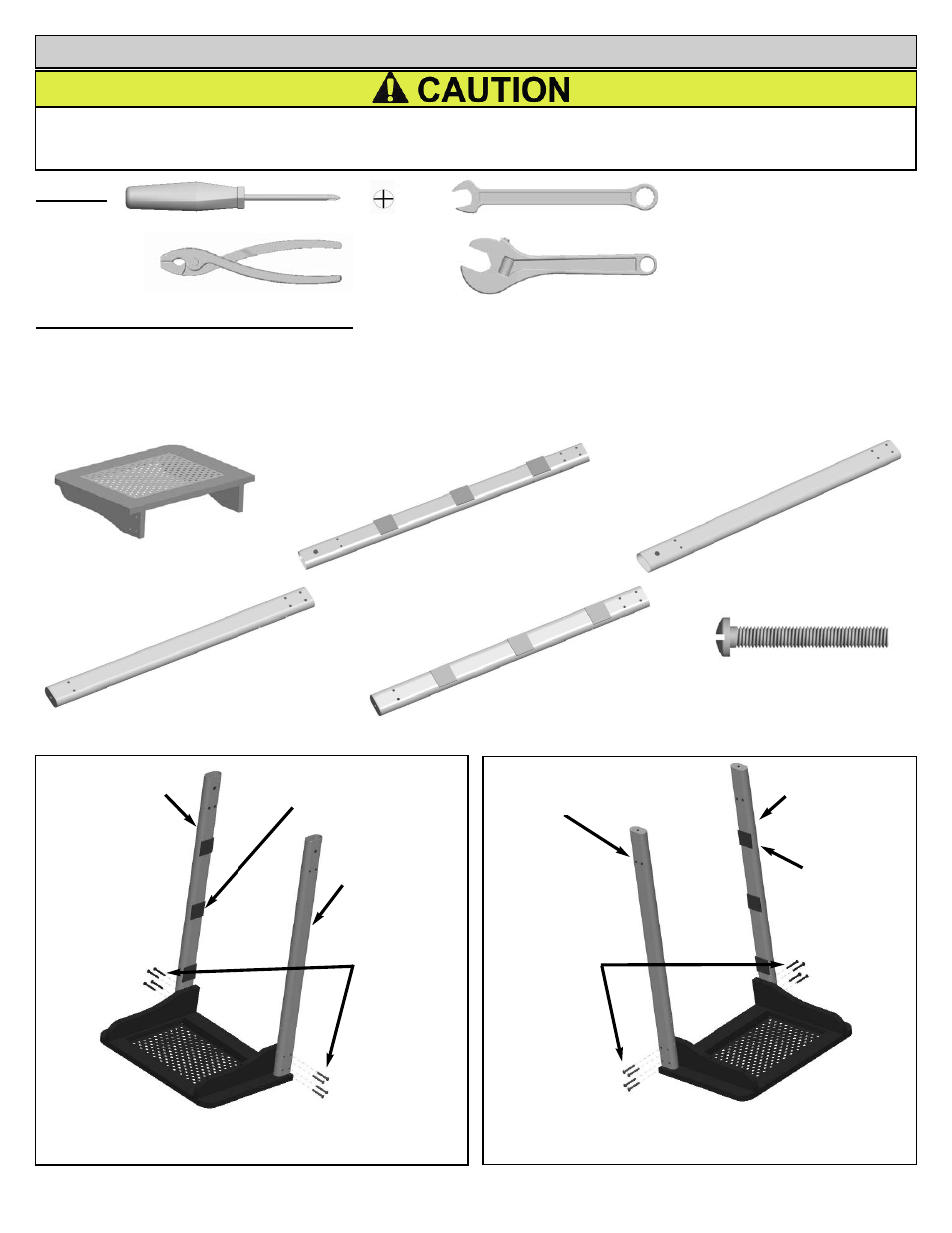

STEP 1) Legs/Side Table Assembly:
Attach the Wheel and Caster Legs to the Side Tables with 1/4-20 x 1-3/8” Bolts through the legs
into threaded insert in side tables. Position legs exactly as shown. Do not completely tighten
bolts.
Wheel Legs and Side Table Assembly
To reduce the risk of injuries:
· Wear protective gloves when handling parts that have sharp edges to prevent cuts.
· Some assembly may require help from another person to prevent handling or lifting injury. Observe where noted.
TOOLS:
(2) Side Table
2 pcs.
(6) RightFront Caster Leg
(3) LeftFront WheelLeg Left Rear Wheel Leg
ASSEMBLY INSTRUCTIONS
Velcro patches
towards inside
Velcro patches
towards inside
FIG. 1A FIG. 1B
(5) Right Rear
Caster Leg
(6) Right Front
Caster Leg
(3) Left Front
Wheel Leg
(4) Left Rear
Wheel Leg
(7) 1/4-20 X 1-3/8”
Bolt
(7) 1/4-20 X 1-3/8”
Bolt
(7) 1/4-20 X 1-3/8” Bolt
16 pcs
Caster Legs and Side Table Assembly
(5) Right Rear Caster Leg
and/or
