FPC-8057 User’s Manual

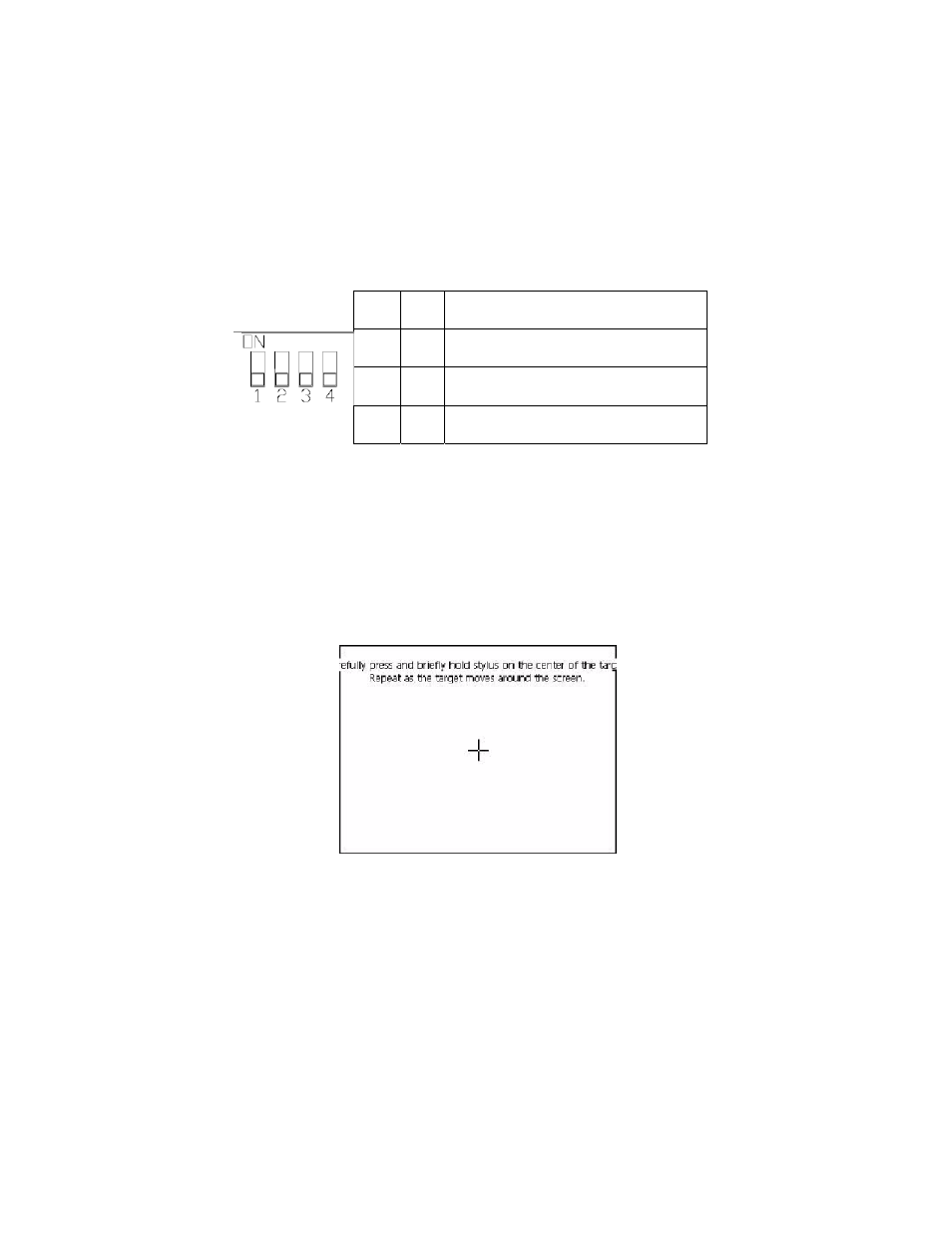

2.3.3 Dip Switch
Pin1 Pin2 Mode
OFF OFF Normal
ON OFF Touch Screen Calibrate mode
OFF ON Boot Loader mode
PPin3, 4 unused
z Touch Screen Calibrate mode: In this mode when you power on the
FPC-8057 , the screen will display a “+” sign at the center of the
screen. Use a stylus or finger to push the center of the “+” until it
moves. The “+” moves to upper-left, lower-left, lower-right and upper-
right corners. When all five “+” are done the “+” will disappear. The
Touch Screen parameter will store at Flash Rom.
