EXTERNAL
EQ
UIPMENT
SETUP
27
DIGITAL AUDIO OUTPUT SETUP

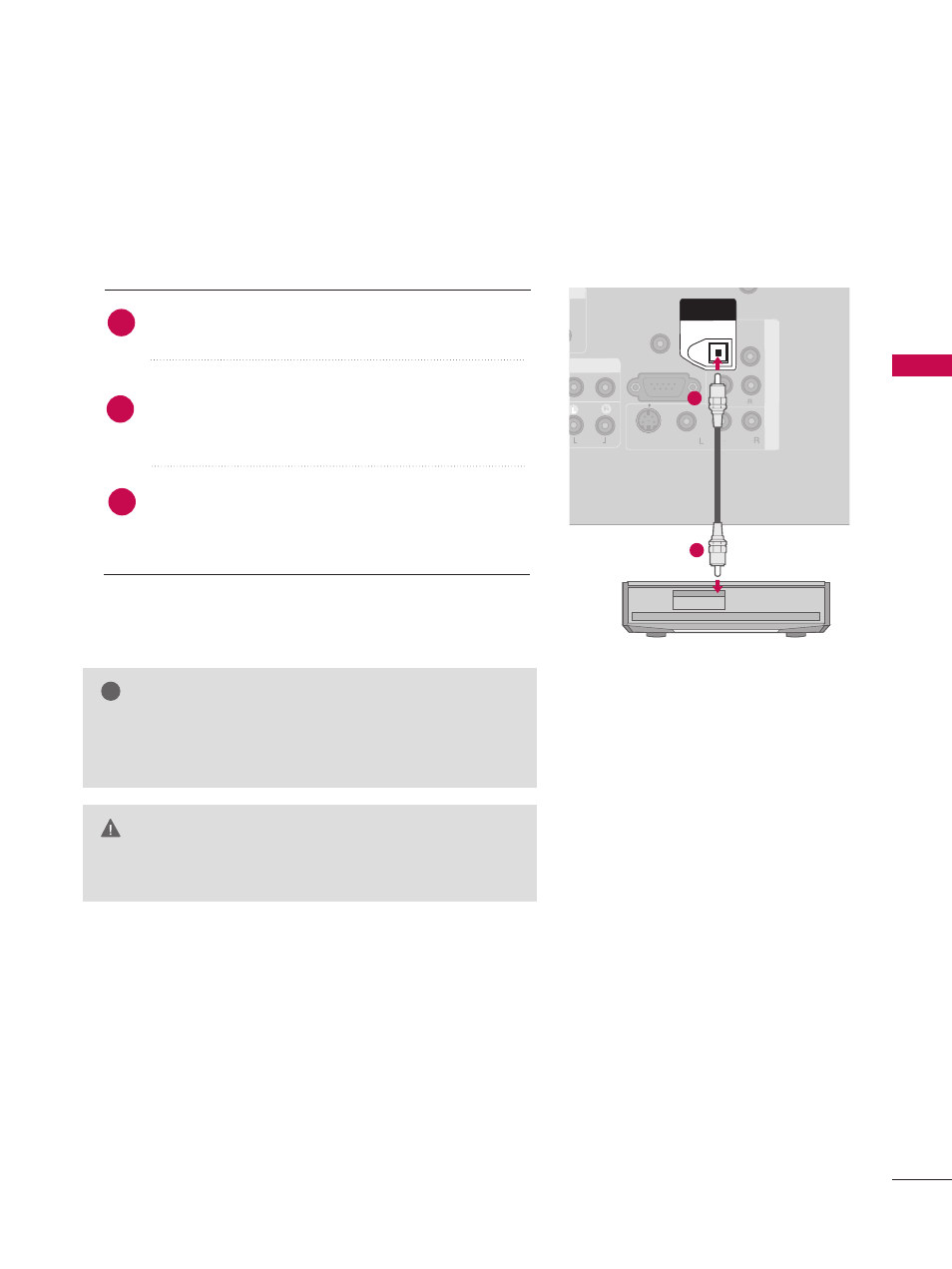

Send the TV’s audio to external audio equipment via the Digital Audio Output (Optical) port.
ANTENNA
OUT
ANTENNA
IN
DIGITAL AUDIO
OUT
OPTICAL
ANTENNA
OUT
ANTENNA
IN
DIGITAL AUDIO OUT
OPTICAL
IN
HDMI/DVI IN
2
1
N COMPONENT IN
VIDEO AUDIO AUDIO
RGB IN
RGB (PC) O
DVI)
A
V
I
N
1
VIDEO S-VIDEO AUDIO MONO ( )
RS-232C IN
(CONTROL & SERVICE)
A
V
OUT
REMOTE
CONTROL IN VIDEO
DIGITAL DIGITAL
AUDIO AUDIO OUT OUT
OPTICAL PTICAL
(DVI)
AUDIO
G G When connecting with external audio equipments, such
as amplifiers or speakers, please turn the TV speakers
off.
NOTE !
G G Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION
Connect one end of an optical cable to the TV Digital
Audio (Optical) Output port.
Connect the other end of the optical cable to the digi-
tal audio (optical) input on the audio equipment.
Set the “TV Speaker option - Off ” in the AUDIO
menu. See the external audio equipment instruction
manual for operation.
