16
EXTERNAL EQUIPMENT SETUP
EX
TE
R
N
A
L E
Q
U
IP
M
EN
T
SE
TU
P
HD RECEIVER SETUP

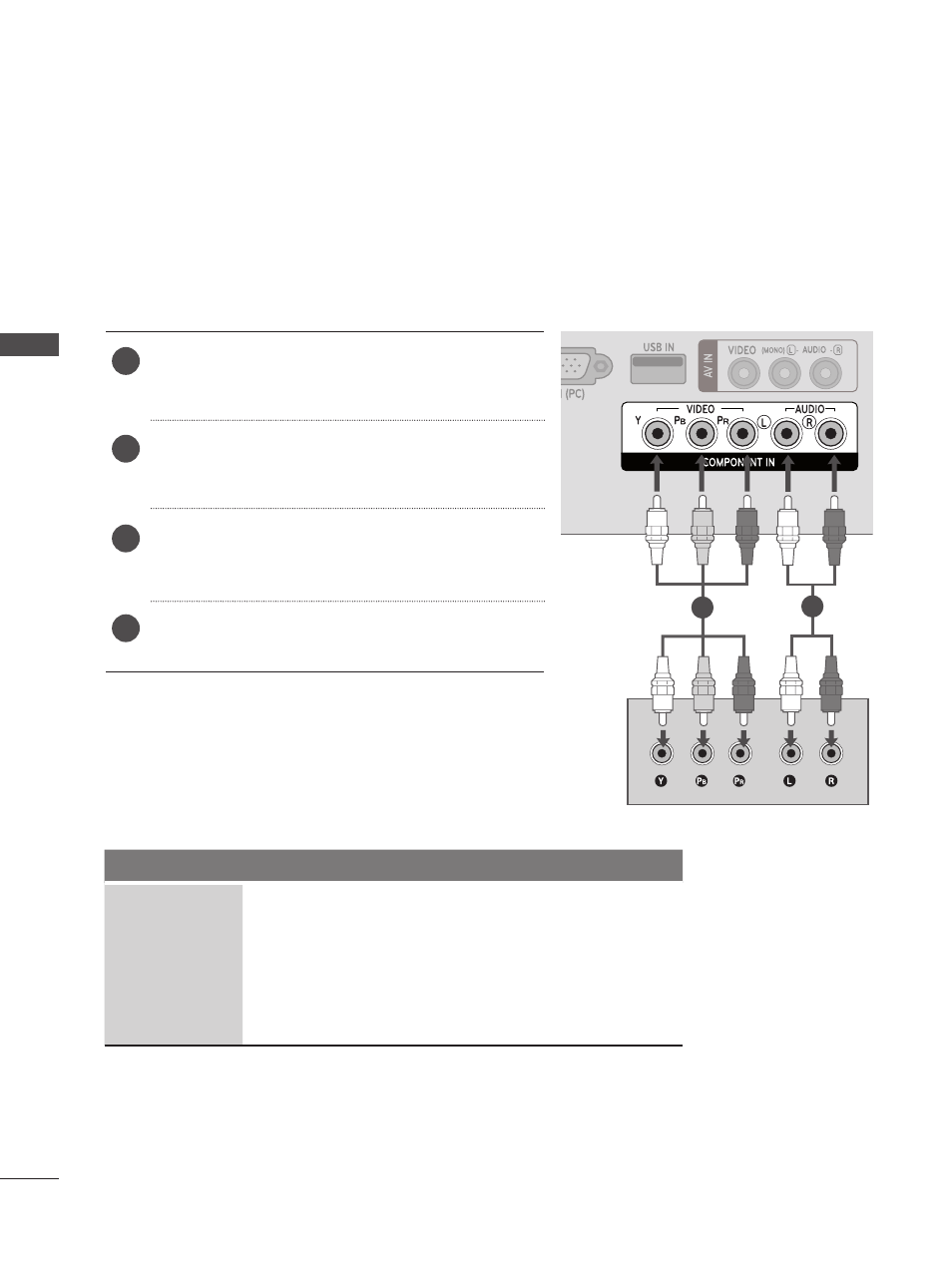

Connecting with a Component Cable
■ To prevent damage, never plug in any power cords until you have finished connecting all equipment.
■ The image shown may be somewhat different from your Monitor set.
► HDMI Audio Supported formats: Dolby Digital, PCM
DTS Audio format is not supported.
Signal Component HDMI
480i / 576i YES No
480p / 576p YES YES
720p / 1080i YES YES
1080p
YES
(50 Hz / 60Hz only)
YES
(24 Hz / 30 Hz / 50Hz / 60Hz)
Connect the video outputs (Y, PB, PR) of the digital
set-top box to the
COMPONENT IN VIDEO jacks on
the Monitor set.
Connect the audio output of the digital set-top box
to the
COMPONENT IN AUDIO jacks on the
Monitor set.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
Select COMPONENT input source using the INPUT
button on the remote control.
1
2
3
4
1 2
