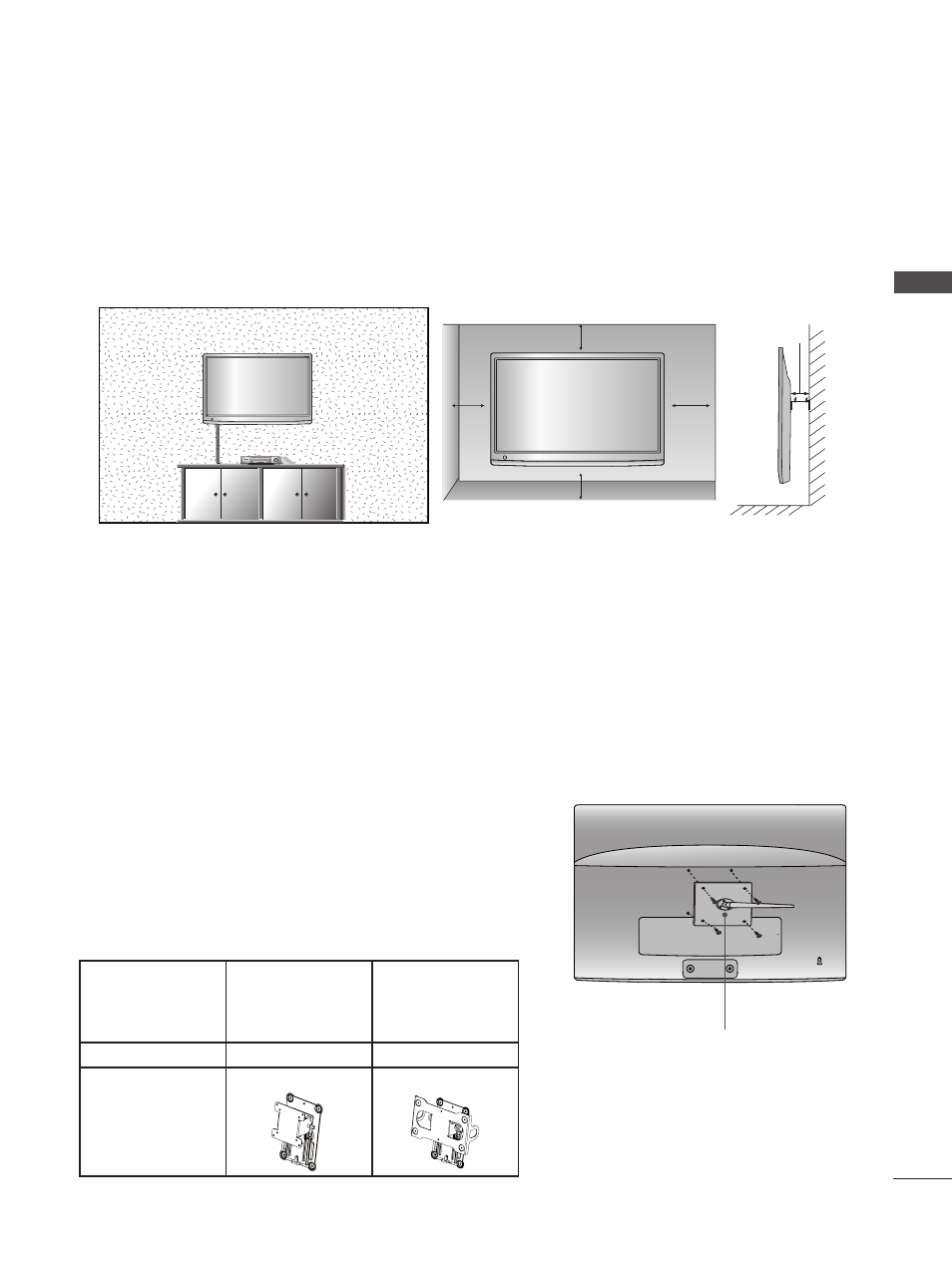

WALL MOUNT: HORIZONTAL INSTALLATION

■ The image shown may be somewhat different from your Monitor set.

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instruc-
tions are available from your dealer. See the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

If you intend to mount the Monitor set to a wall, attach the wall mounting interface (optional) to the back of

the Monitor set. When you install the Monitor set using the wall mounting interface (optional), attach it care-

fully so it will not drop.

1. Be sure to use screws and a wall mount that meet VESA standards.
2. Using screws longer than those recommended might damage the Monitor set.
3. Using screws that do not meet VESA standards might either damage the Monitor set or result in it com-

ing away from the wall. LG is not responsible for any damage resulting from failure to follow these instruc-

tions.

4. "VESA compatible" refers to the screw mounting interface dimensions and mounting screw specifications.
5. Please use VESA standards as shown below.

5-1) 784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness: 2.6 mm
* Screw:

Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

5-2) 787.4 mm (31.0 inch) and above
* Please use a VESA standard wall mount pad and screws.

< Screw Mounting Interface Dimensions >

Model

M2080D

M2280D
M2380D

M2380DF

M2780D

M2780DF

VESA ( A x B)

75 x 75

200 x 100

Wall mount

bracket(optional)

RW120

RW240

Wall Mount Pad
