GB - 26
Install new attachment drive belt:
1. Place new attachment belt onto
attachment pulley.
2. Tip housing and frame back together and
secure with cap screws.
3. Place belt onto engine sheave.
4. Make sure engine sheave
and attachment
pulley align. If alignment is necessary,
loosen attachment pulley set screws,
reposition pulley and retighten set screws.
5. Reposition and secure belt fingers.
IMPORTANT: Make sure belt fingers are
1/16 in to 1/8 in (1.6-3mm) from belt when
attachment clutch is engaged.
6. Check adjustment. See Attachment
Clutch/Brake.

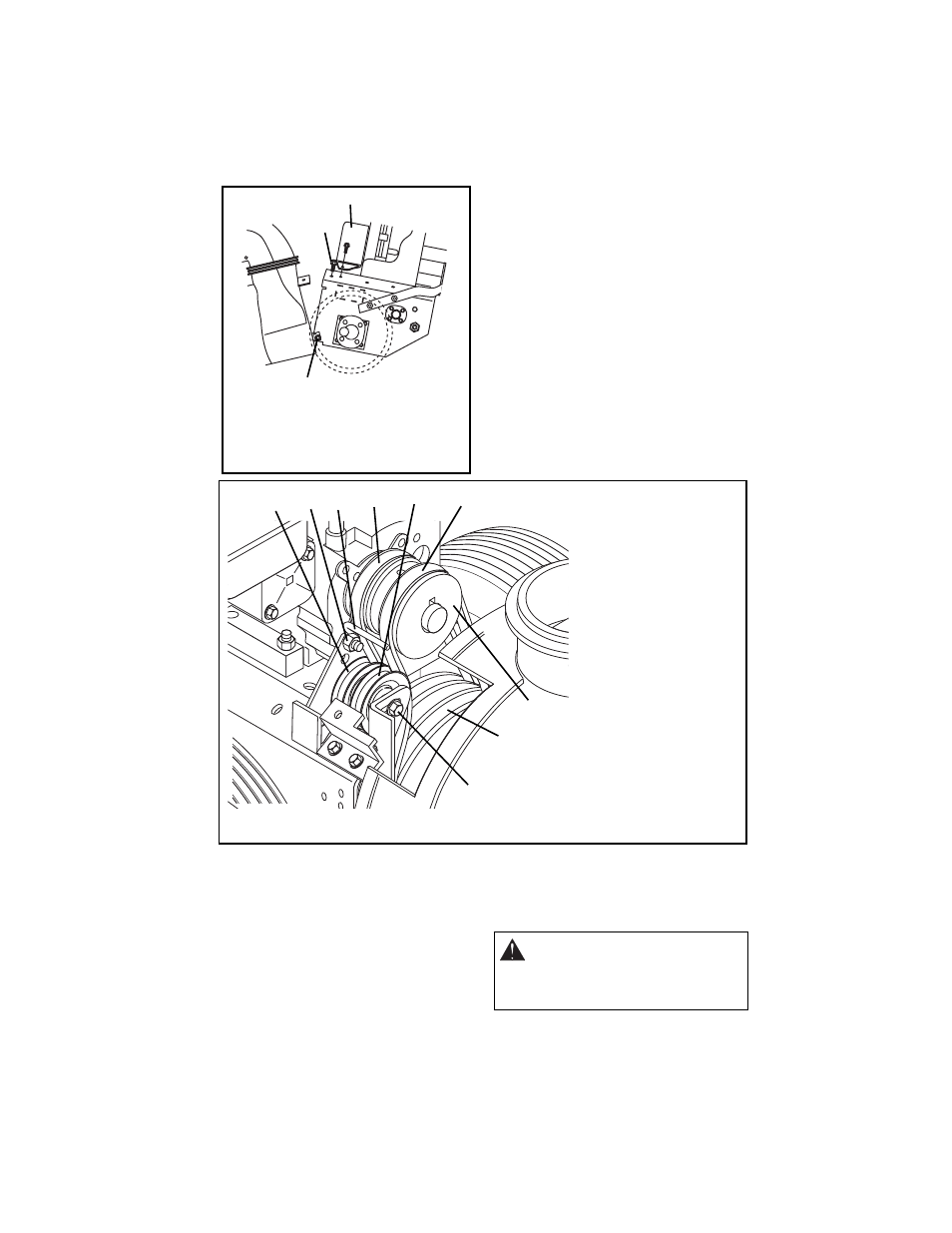

Figure 19
1. Pivot Pin
2. Housing Cap Screws
3. Belt Cover
1
2
3
OS0792
Figure 20
1. Traction Belt Idler
2. Cap Screw
3. Belt Finger
4. Traction Drive Belt
5. Attachment Belt Idler
6. Attachment Drive Belt
7. Engine Sheave
8. Attachment Pulley
9. Attachment Idler
Adjustment Nut
OS0601
1 2 3
4 5 6
7
8
9
WARNING: AUGER / IMPELLER
MUST STOP within 5 seconds when
attachment clutch lever is released or
unit damage or serious injury may
result.
