GB - 12
ACCESSORY AND ATTACHMENT
SAFETY RULES
Use only attachments or accessories
designed for your unit.
Check components frequently. If worn or
damaged, replace with manufacturer’s
recommended parts.
Tools Required:
• Pliers
• Open-End Wrenches: 3/8, 7/16, 1/2, 9/16"
and/or Adjustable Wrench
• Tire Gauge
PACKAGE CONTENTS
ASSEMBLY
Handlebar and Shift Rod
1. Remove lower wing knobs on handlebar
assembly (Figure 5).
2. Remove upper wing nut and bolt on shift
rod.
3. Loosen upper wing knobs on handlebar.
4. Loosen lower wing nut and bolt on shift
rod.
5. Put speed selector lever into fastest
reverse panel notch.
6. Rotate handlebar up so wing knob holes
align. Install and tighten all wing knobs.
7. Install wing nut and bolt removed in step 2
onto shift rod and tighten hardware.
Install Discharge Chute and Crank
(924116, 117, 300, 508)
Figure 6.
1. Grease discharge chute ring on blower
housing (if not already greased).
2. Remove mounting hardware from top of
engine.
3. Slide chute ring under retainer clip on
blower housing and put chute on housing.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand Assembly, Fuel and
Battery Safety Rules before
proceeding.
WARNING: Dropping or tipping over
boxed unit could result in personal
injury or damage to unit.

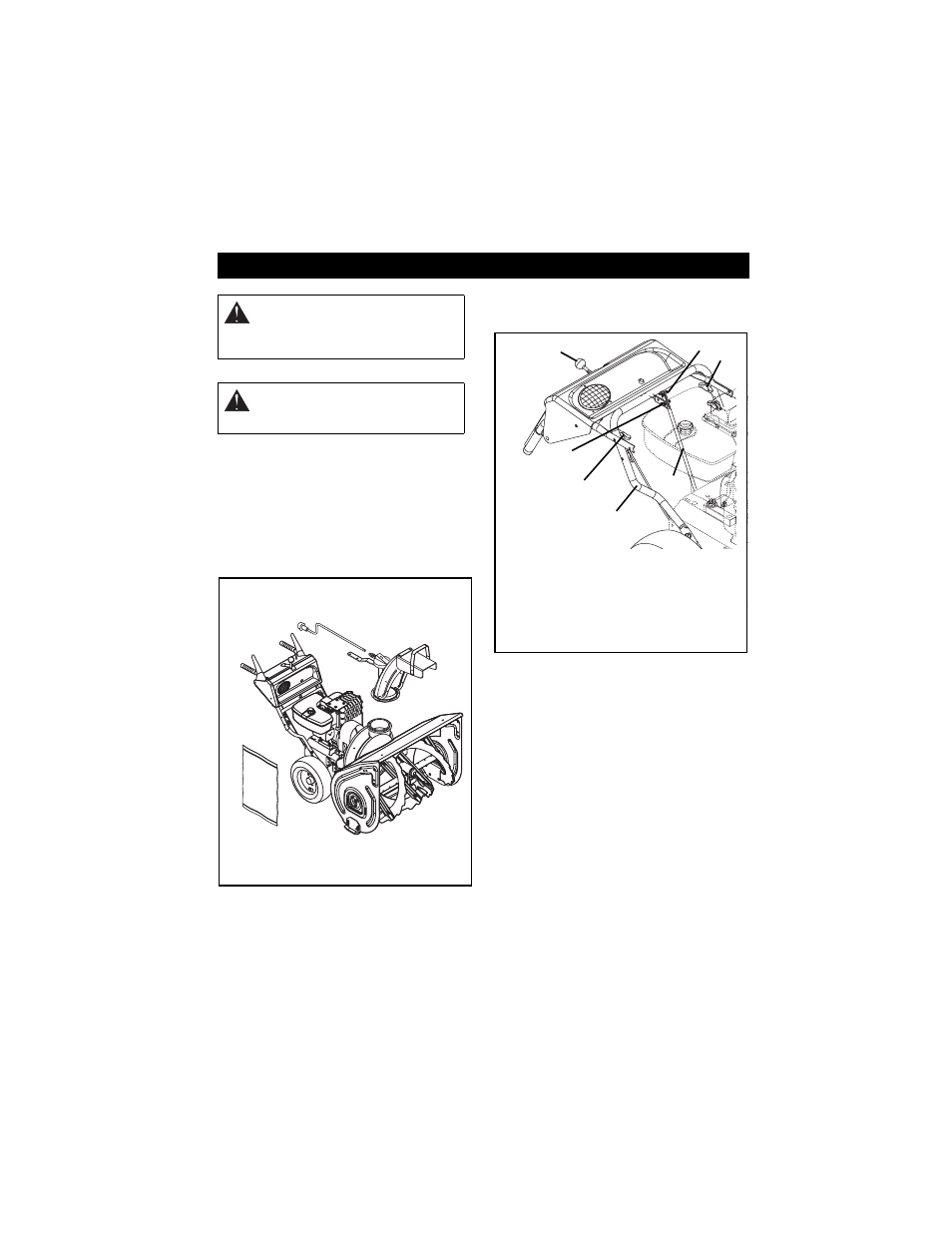

Literature
Pack
Figure 4
Chute Crank
(924116,117, 300, 508)
Discharge
Chute
Sno-Thro
Unit
OS1642
1. Handlebar
Assembly
2. Wing Knobs
3. Wing Nut
4. Speed Selector
5. Bolt
6. Shift Rod
1
2
4
5
6
Figure 5
3
OS0901
2
