GB - 13
4. Secure chute by fastening chute strap to
engine with hardware just removed.
NOTE: Washers and lock nuts go on top of
chute strap.
5. Loosen mounting nut on chute and move
chute up or down so that chute ring is
approximately centered between retainer
clip and lower ring and tighten.
6. Slide chute crank rod through bracket
under handlebar and through hole in
panel.
7. Align chute crank rod with the universal
joint on chute and fasten with spring clip.
Install Discharge Chute - Electric
Rotation (924505,506)
1. Remove chute motor cover.
2. Remove the six (6) nuts from ring gear
(Figure 7).
3. Remove two (2) half rings.
4. Position Discharge Chute over threaded
studs with the chute opening facing the
electric motor.
5. Replace the half rings.
6. Replace the six (6) nuts and tighten to
120 lbf-in torque.
7. Replace chute motor cover.
Connect Battery (924300, 505, 506,
508)
1. Remove wing nuts from battery cover.
2. Install wire lead to battery terminal.
3. Install battery cover and tighten wing
nuts.
Deflector Remote (924116, 505, 506)
1. Slide cable end through hole on bracket
on left side of chute (Figure 8).
2. Attach cable eye to stud on deflector.
Hold in place with flat washer and e-ring.
3. Check deflector travel. Adjust nut on
cable end under handlebar to obtain full
travel. (See
Deflector Remote in Service
and Adjustments .)

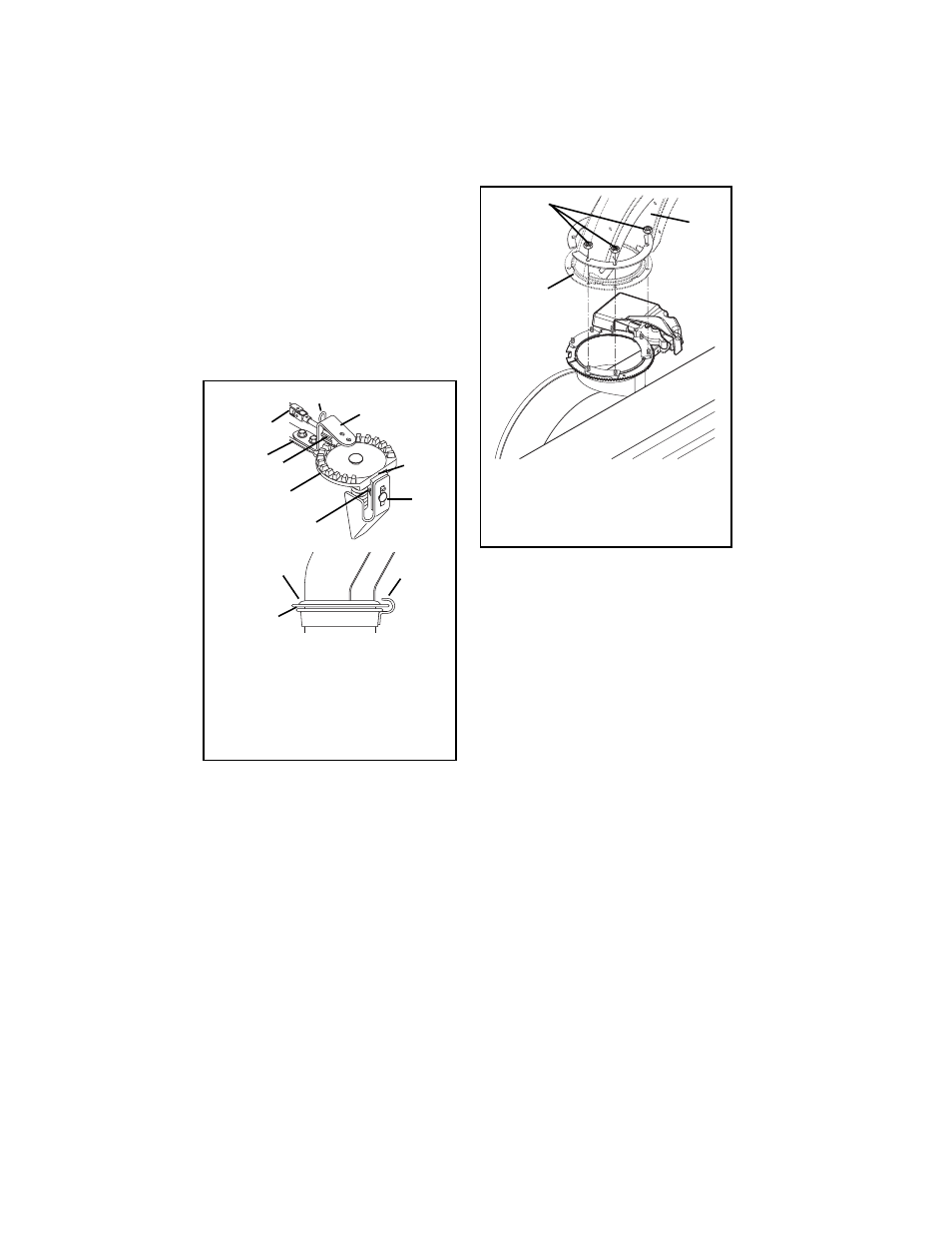

1. Pinion Bracket
2. Gear Strap
3. Chute Bracket
4. Retainer Clip
5. Lower Ring
6. Chute Ring 7. Mounting Nut
8. Flat Gear
9. Pinion
10.Chute Strap
11.Universal Joint
12.Spring Clip
DS0112
1
2
3
4
5
6
7
8
9
10
11
12
Figure 6
Figure 7
1. Ring Gear Nuts
2. Half Rings
3. Discharge Chute
1
2
3
OS1930
