CLEAN BATTERY (924300, 505,
506, 508)
IMPORTANT: Battery is maintenance free. Do
not tamper with or attempt to open battery.
See Service and Adjustments for charging
procedures.
Terminals
Keep battery and its terminals clean.
IMPORTANT: Remove battery from unit
before cleaning.
Remove corrosion from battery terminals and
cable connections with a wire brush, then
wash with a weak baking soda solution.
After cleaning, apply a thin coat of grease or
petroleum jelly to terminals and cable ends to
retard corrosion.
DISCHARGE CHUTE DEFLECTOR
(924117, 300, 508)
Deflector must stay in selected position while
throwing snow.
To adjust, loosen then retighten hardware to
desired deflector drag force (Figure 11).

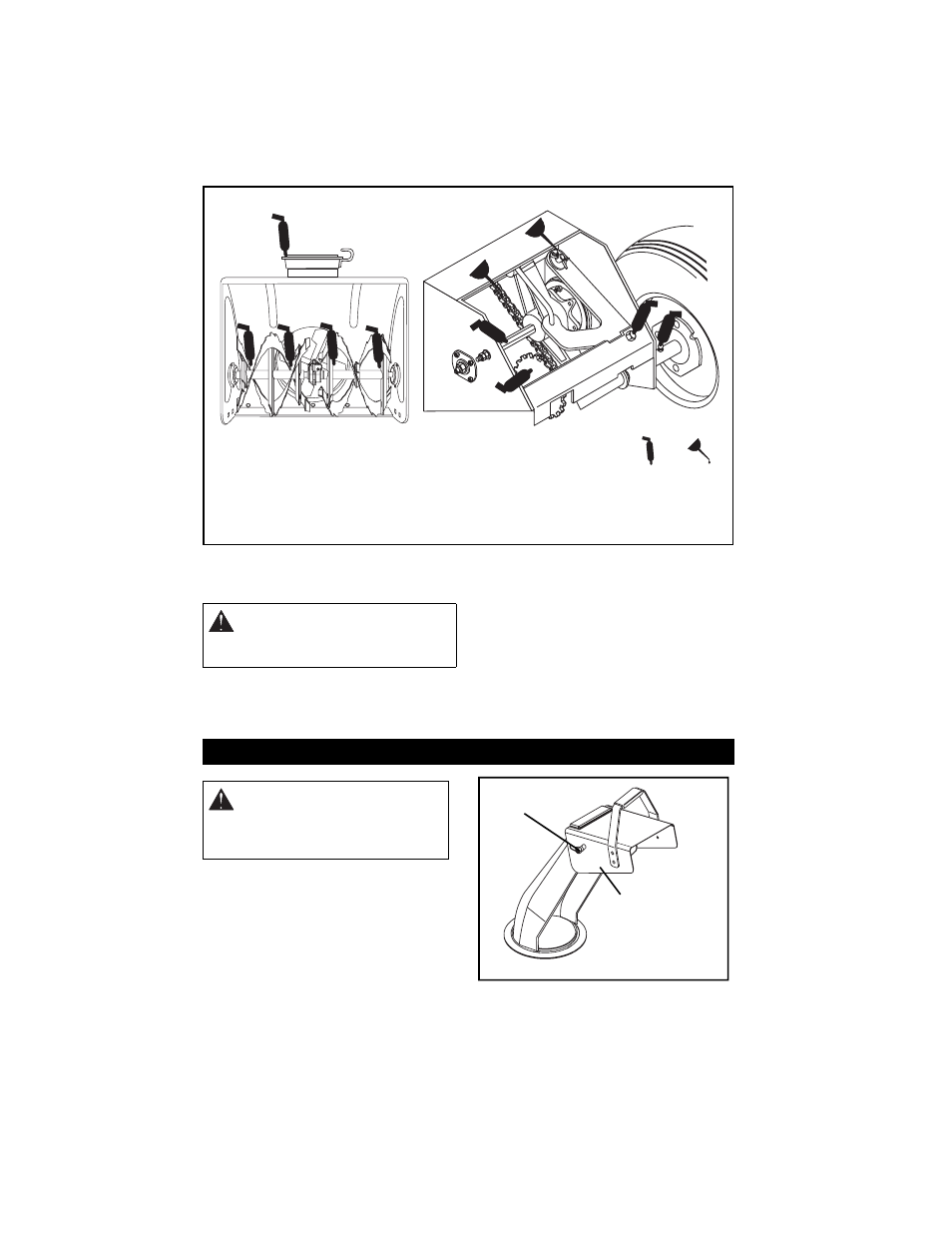

1. Auger and Shaft
2. Discharge Chute
3. Sprocket/Pinion
Assembly
4. Axle Shaft
5. Shift Lever Arm
6. Pinion Chain
7. Hex Shaft
8. Shift Link
1 1
6
8
3
5
4
Figure 10
2
1 1
7
Oil Grease
OS0641
OS0741
WARNING: AVOID INJURY. Read
and understand Battery Safety Rules
in Safety section before attempting
any maintenance.
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read
and understand Maintenance and
Service and Battery Safety Rules in
Safety section before attempting
service or adjustments.
Figure 11
Adjusting
Hardware
OS0113
Discharge Chute
Deflector
