ASUS P4S800-MX SE motherboard 1-23

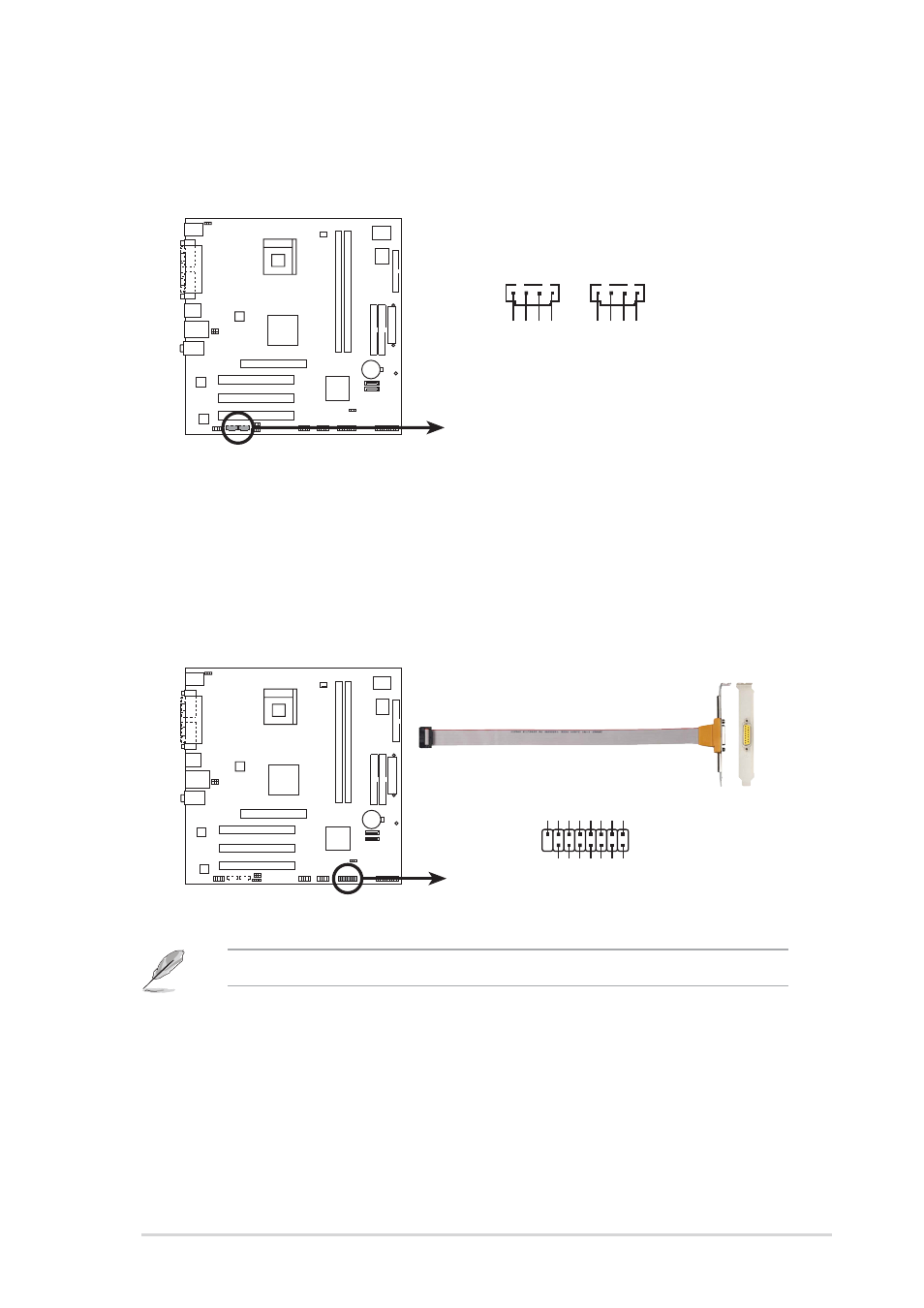

10. GAME/MIDI connector (16-1 pin GAME1)
This connector supports a GAME/MIDI module. Connect the GAME/MIDI cable
with yellow connector to the yellow header onboard. The GAME/MIDI port on
the module connects a joystick or a game pad for playing games, and MIDI
devices for playing or editing audio files.
The GAME module is purchased separately.
P4S800-MX SE
P4S800-MX SE Game connector
GAME
+5V
+5V
J2B1 J2CX
MIDI_OUT
J2CY J2B2
MIDI_IN
J1B1 J1CX GND GND J1CY J1B2 +5V
9. Internal audio connectors (4-pin AUX, CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
P4S800-MX SE
P4S800-MX SE Internal audio connectors
CD
(Black)
AUX
(White)
Right A
udio Channel
Left A
udio Channel
Ground Ground
Right A
udio Channel
Left A
udio Channel
Ground Ground
