1-22 Chapter 1: Product introduction

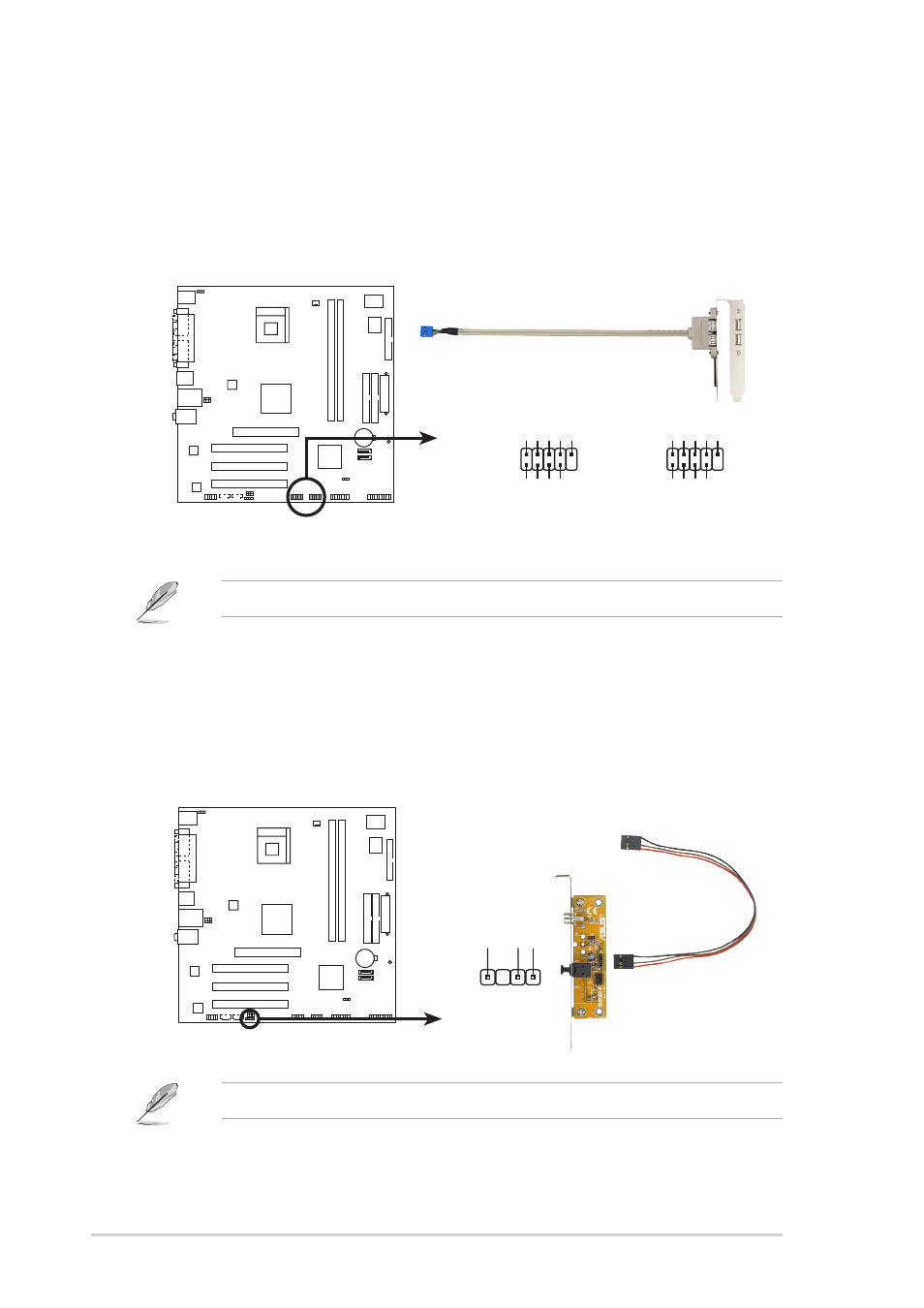

7. USB headers (10-1 pin USB56, USB78)
If the USB ports on the rear panel are inadequate, a USB header is available
for additional USB ports. Connect the USB cable of an optional USB 2.0
module to this header. You may install the USB module in the chassis front
panel. The module has two USB 2.0 ports for connecting next generation USB
peripherals such as high resolution cameras, scanners, and printers.
The USB module is purchased separately.
8. Digital audio connector (4-1 pin SPDIF)
An onboard S/PDIF Out connector is available for an optional S/PDIF audio
module. Connect one end of the S/PDIF audio cable this connector and the
other end to the S/PDIF module.
The S/PDIF module is purchased separately.
P4S800-MX SE
P4S800-MX SE USB 2.0 connectors
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5- USB_P5+
GND
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7- USB_P7+
GND
1
P4S800-MX SE
P4S800-MX SE Digital Audio Connector
+5V SPDIFOUT GND
SPDIF
