ASUS P4S800-MX SE motherboard 1-17
1.10 Connectors
This section describes and illustrates the motherboard rear panel and internal
connectors.

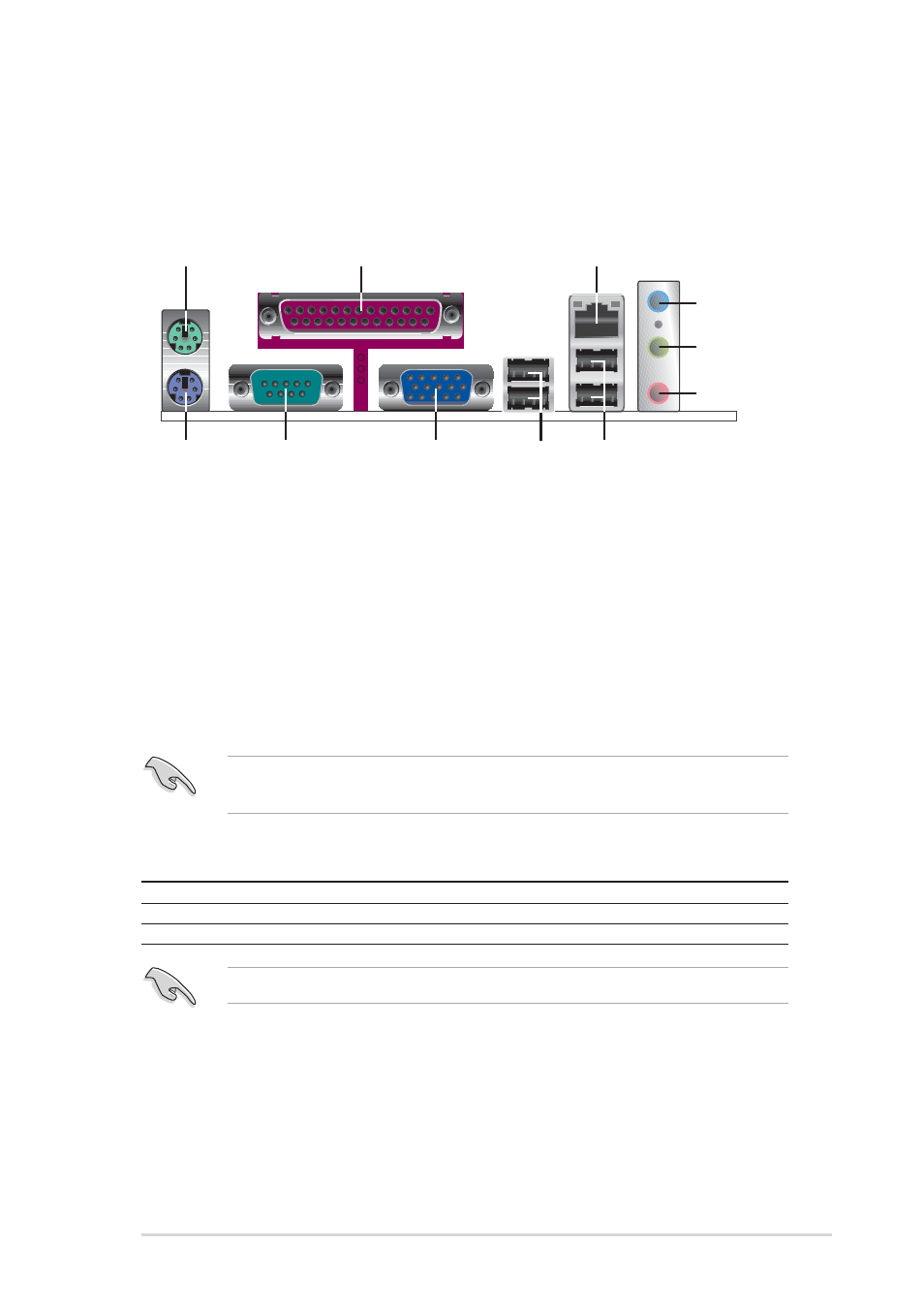

1.10.1 Rear panel connectors
1. PS/2 mouse port. This green 6-pin connector is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, scanner, or other devices.
3. RJ-45 port. This port allows connection to a Local Area Network (LAN) through
a network hub.
4. Line In jack. This Line In (light blue) jack connects a tape player or other audio
sources. In 6-channel mode, the function of this jack becomes rear speaker.
5. Line Out jack. This Line Out (lime) jack connects a headphone or a speaker.
In 6-channel mode, the function of this jack becomes front speaker out.
6. Microphone jack. This Mic (pink) jack connects a microphone. In 6-channel
mode, the function of this jack becomes bass/center speaker.
Audio 2, 4 or 6-channel configuration
Headphone /2-Speaker 4-Speaker 6-Speaker
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center Speaker
The functions of the Line Out, Line In, and Microphone jacks change when you
select the 6-channel audio configuration as shown in the following table.
7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
8. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
9. VGA port. This port connects a VGA compatible monitor.
10. Serial port. This 9-pin COM port is for pointing devices or other serial devices.
11. PS/2 keyboard port. This purple connector is for a PS/2 keyboard.
Windows ® 98SE only supports 2-channel speaker configuration.
1
11
4
5
6
7
2 3
9 10 8
