Your dishwasher comes with a three-piece toe panel(select
models) to allow height adjustment.

1. Position the slotted rear toe panel on the dishwasher irst.

Allow it to rest on the loor.

2. Position the mating front toe panel on top of the rear toe

panel allowing the angled edge to rest on the mating edge
of the dishwasher.

3. Drive the two black screws (included) through the hole in

the toe panel to secure. Use the supplied screws to avoid
damaging the dishwasher. See Figure 19.

4. For models with outer toe panel (3rd piece) slide the

brackets (A) provided, into the slots of the toe panel you
just attached.

NOTE: Once you determine the correct position for the brackets ,
remove the bracket and bend the metal tab. See Figure 20. This
ensures that the toe panel wont slide in further than you need.

5. Re-insert the brackets.
6. Attach the outer toe panel (L) onto the brackets and drive
the screws provided in place to secure the toe panel.

NOTE: The rubber piece should remain behind the outer
toe panel.

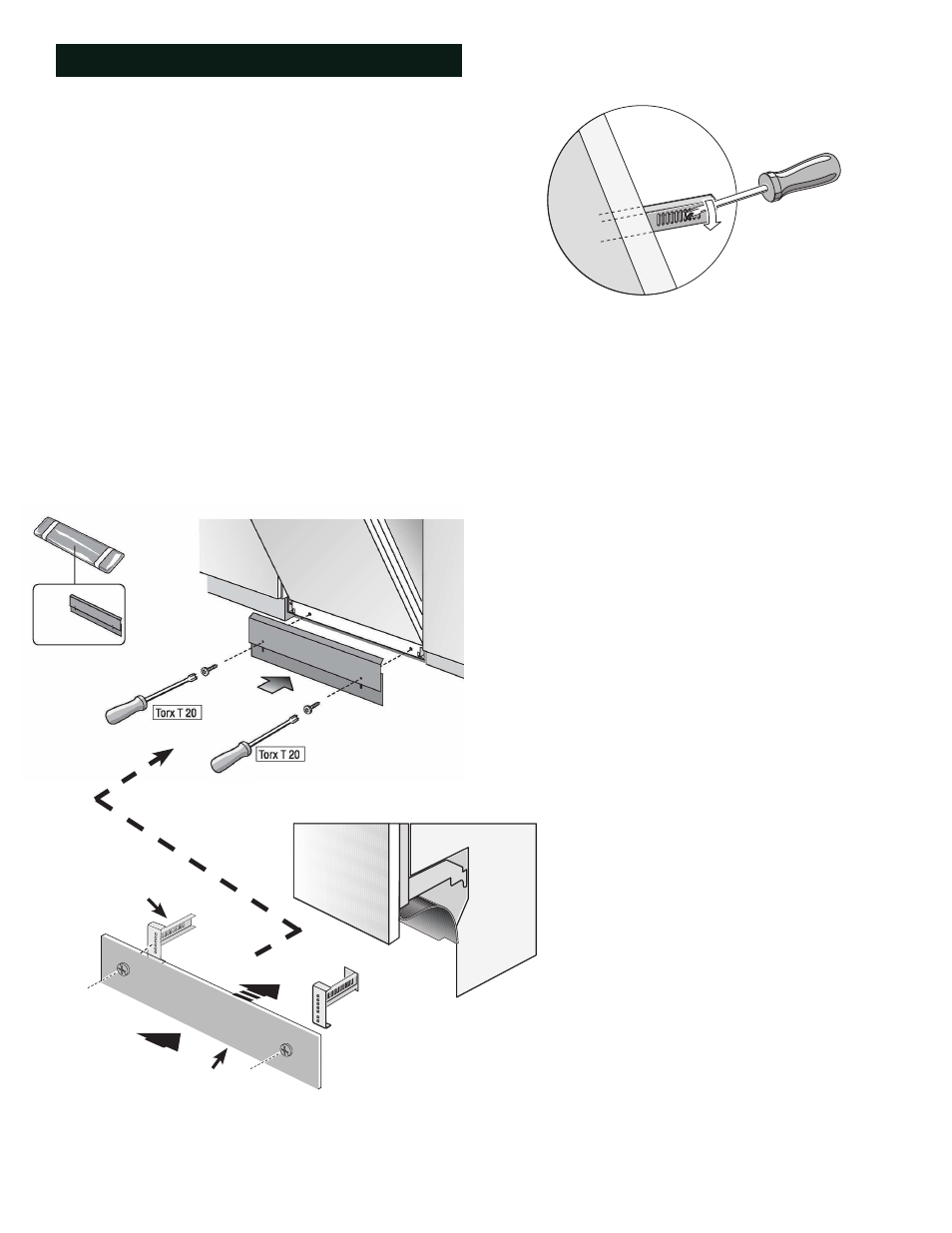

Figure 19

Figure 20

Attaching the Toe Panel

(L) - See Page 5

(K)
