Aquatic HOTSOAK 94 AI36AIR6642HS - Manual

SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product
as required. The dimensions needed for site preparation and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no
responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
June 2008
hOTSOAk 94
General SpecificationS:
Tub Size 65 3/4” x 42” x 24”
167 cm x 107 cm x 61 cm
Bathing Well 44” long
27 1/2” wide
21” interior depth
Maximum Water Depth 17”
Shipping Weight
188 lbs. / 85 kg
Tub Weight Filled 1072 lbs. / 486 kg
Tub Only Weight 104 lbs. / 47 kg
Weight with Equipment 114 lbs. / 52 kg
Gallons to Overflow
115 gal. / 435 L
electrical SpecificationS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Standard equipment:
optional equipment:
hOTSOAk
Model # AI36AIR6642HS

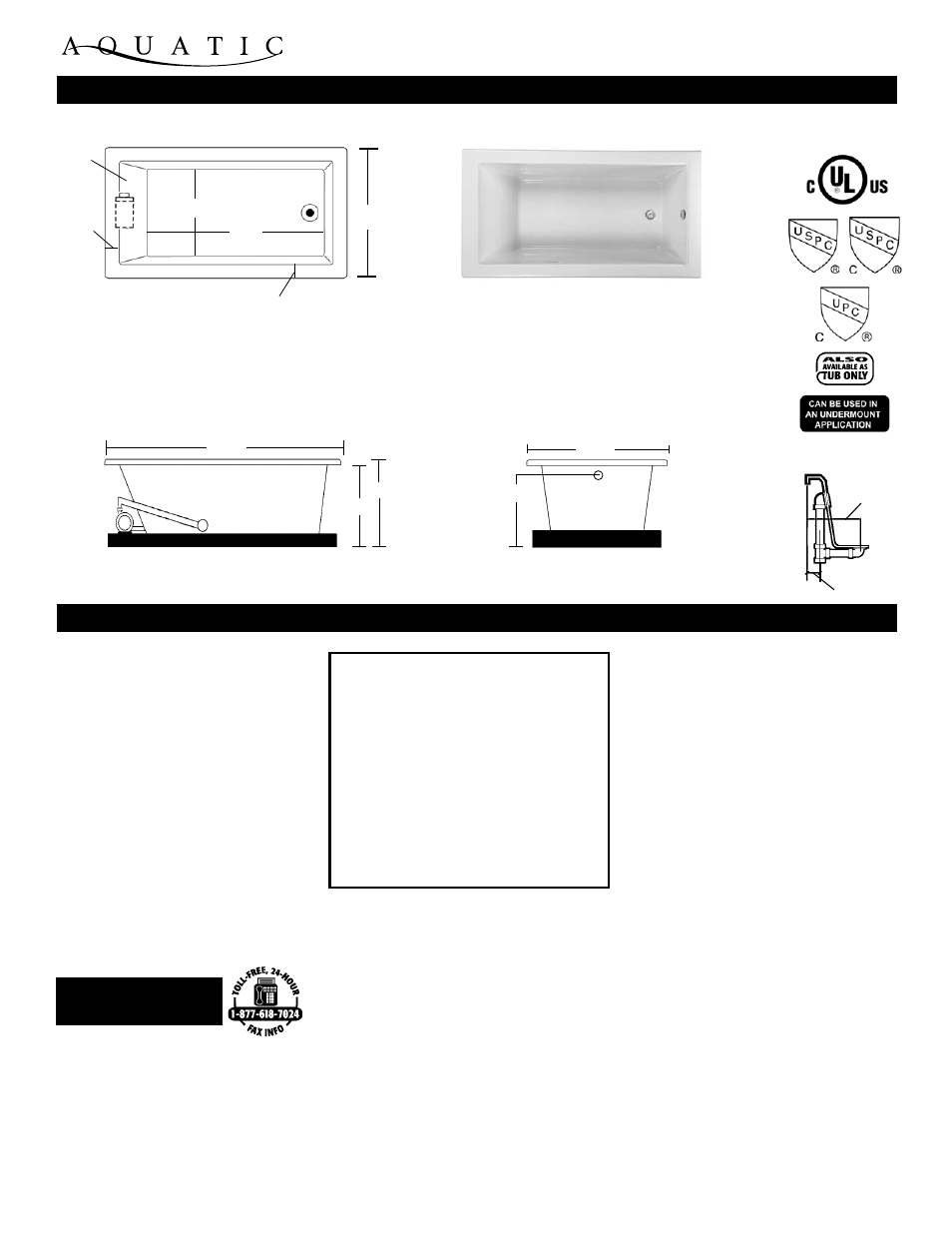

Deck
Width
3 1/2”
42”
Deck Width
3 1/2”
44”
27 1/2”
42”
22”
24”
65 3/4”
20 1/2”
aquatic quality features:
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Operation
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & iapmo listed, factory tested
limited lifetime Warranty
• Chromatherapy*
•
Comfort Pillow - Oval or Rectangle
• Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Chromatherapy
•
Integral Tiling Flange (Customer must specify which
side(s) should receive flange)
•
Color Matched Acrylic Skirt
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
fax-on-demand
document # 1319
Back Angle
25°
rough-in plumbing
measurements
3”
10 1/2”
