OmniReach ® FTTX Solutions
Outdoor FDH 3000
Medium Ground Mount Cabinet (72-432 Fibers)
Features
All front access •
Supports up to 432 distribution fibers •
Bottom cable exit locations •
Includes 24 splitter slots •
Cabinet Dimensions: •
42"(H) x 27"(W) x 18"(D)
Parking lot for 144 fibers •
36 adapter pass through patch panels •
All shaded configuration options are
lead configurations and have best
delivery dates.

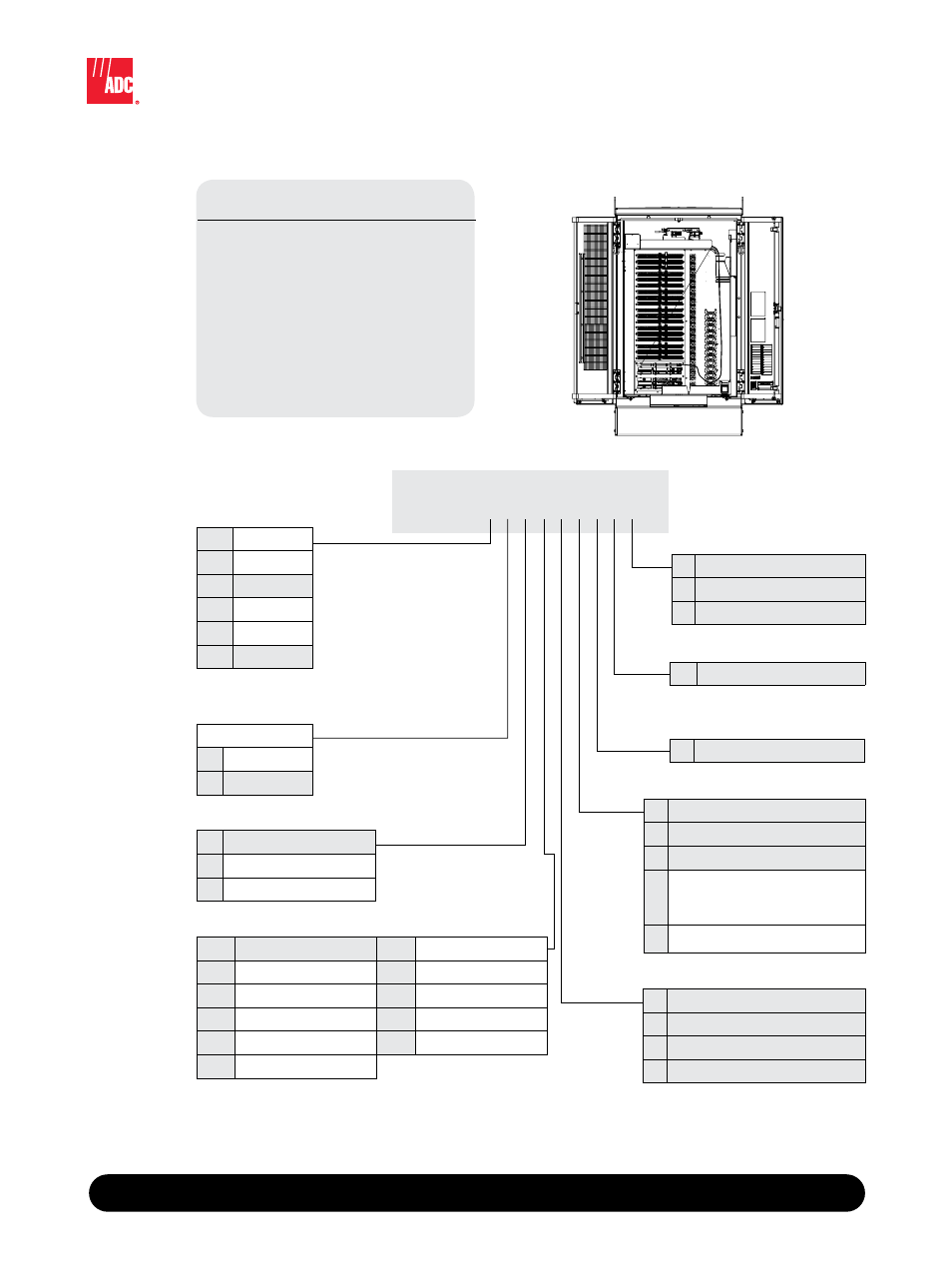

Catalog Number
FD3 - AG __ __ __ __ __ __ __ __ __
Adapters/
Connector Type
Singlemode
N SC/UPC
J SC/APC
Distribution
Fiber Panels Loaded
072 72 fibers
144 144 fibers
216 216 fibers
288 288 fibers
360 360 fibers
432 432 fibers
Number of Splitter Modules*
0 No splitter modules
1 1 splitter module
2 2 splitter modules
Splitter Style
P Mini Plug & Play
Feeder Cable Size
1 12 fiber
2 24 fiber
4 48 fiber
Feeder/Distribution
Cable Stub Length
B 100 foot
Distribution Cable Configuration
A All 72 fiber stubs
B All 144 fiber stubs
C All 216 fiber stubs
D All 144 fiber stubs, except 1-72
1-72 (72 fiber stubs)
73+ (144 fiber stubs)
G All 288 fiber stubs
Feeder/Distribution Cable Type
G Single armor loose tube
J Dielectric loose tube
L Armored ribbon
T Dielectric ribbon
Splitter Type Loaded
0 No splitters L Dual 1x8
A 1x32 M Dual 1x16
C 1x16 N 1x4
S 1x64 P 2x16
G 2x32 U Dual 1x4
J 1x8
*See page 9 to order individual splitters
